SASTracer
Systems

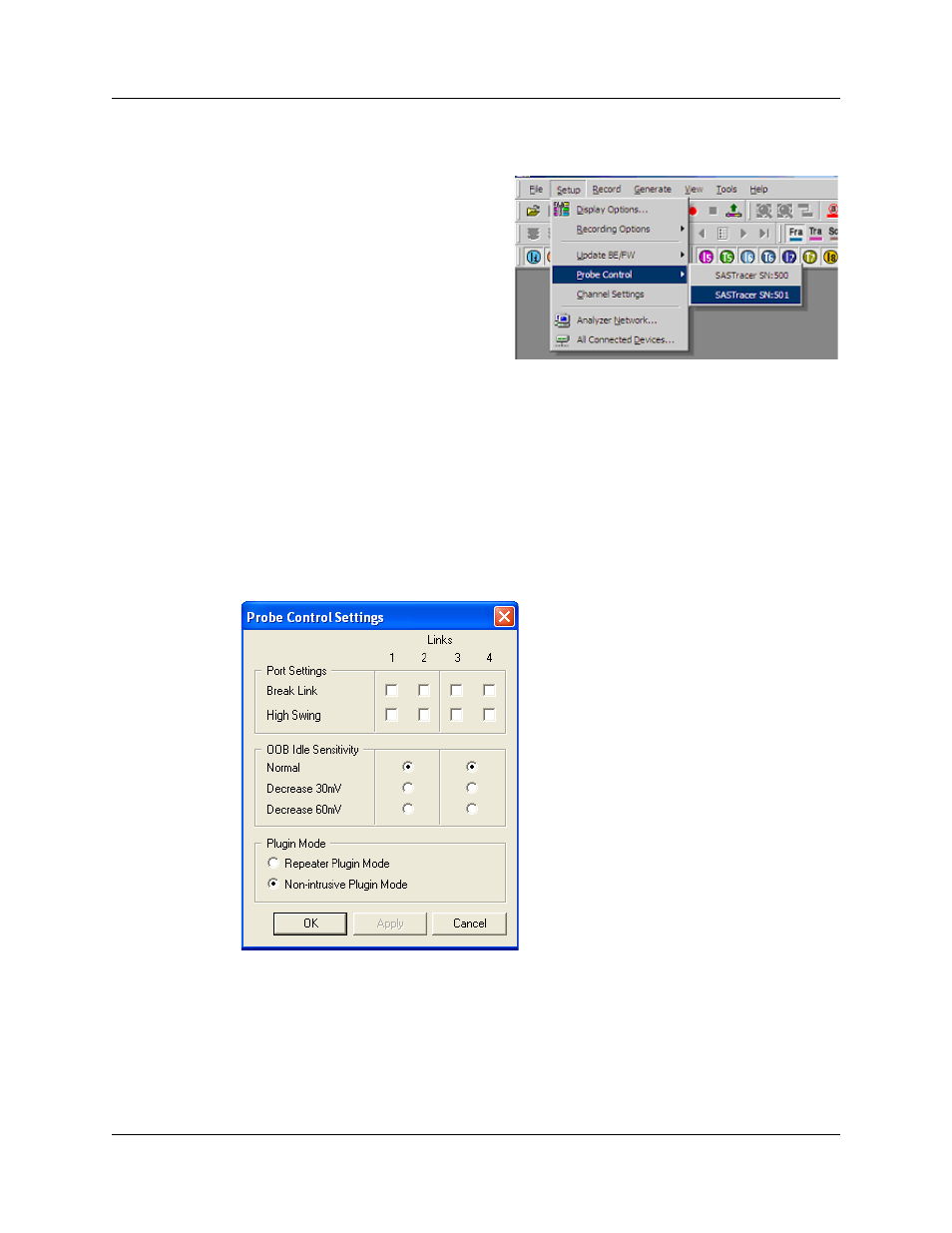

To access probe control settings for a SASTracer System, select Probe Control from the
Setup menu.
The Port Settings and OOB Idle Sensitivity are only available when the SAS analyzer
system is operating in Repeater mode.
The Plug-in Mode options provide an additional control for the SASTracer External
Connector Module (SS004MAA) only. These controls will be disabled when attached to
the Internal SATA-style module (SS002MAA) because this module operates in Repeater
mode only.
Break Link - Checking this box for a specific channel takes the link to electrical idle. It
has the same effect as manually detaching a single connector from the device to "break
the link". Unchecking the Break Link box for a specific channel brings the link up. It has
the same effect as attaching a connector to a powered-on device.
If there’s more than one analyzer
connected, the user will have an
option to select Probe Control
Settings for each device individually
