SASSuite User Manual Version 6.25
LeCroy Corporation
107
SSP
Information
Unit:
Response
IU

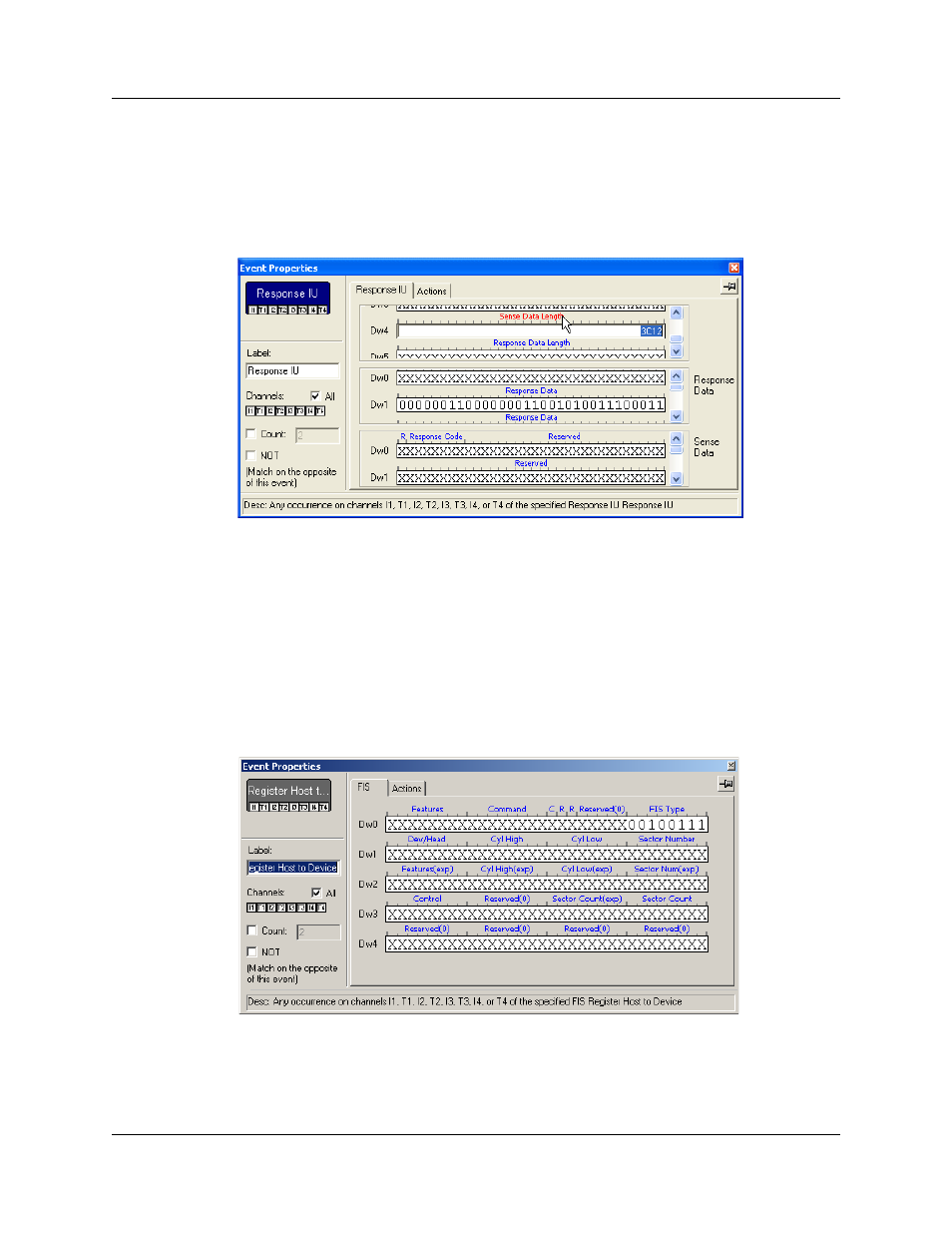

The SSP Information Unit Events provide a bit-level pattern editor for selecting both SSP
header fields and payload parameters including SCSI sense key and additional sense
code patterns. Sense data length and related fields within the Response IU can be
accessed using the scroll bars. Entering a data pattern tells the analyzer to wait for the
specified pattern before triggering. Checking the NOT box selects the inverse match to
the data pattern defined.
SATA FIS
There are ten SATA FISs that can be selected from the New Events menu: Register Host
to Device, Register Device to Host, Set Device Bits, DMA Setup, BIST Activate, PIO
Setup, Data, Route, and Vend FIS: 0xFF.
The Properties dialogs for these FISs are similar to one another. They display data fields
for entering data patterns on a bit-by-bit basis. Entering a data pattern tells the analyzer
to search for the specified pattern. If NOT is checked, any pattern other than the one
specified will generate an event match. The Properties dialog below is for Register Host
to Device.
