Version 6.25 SASSuite User Manual
170
LeCroy Corporation

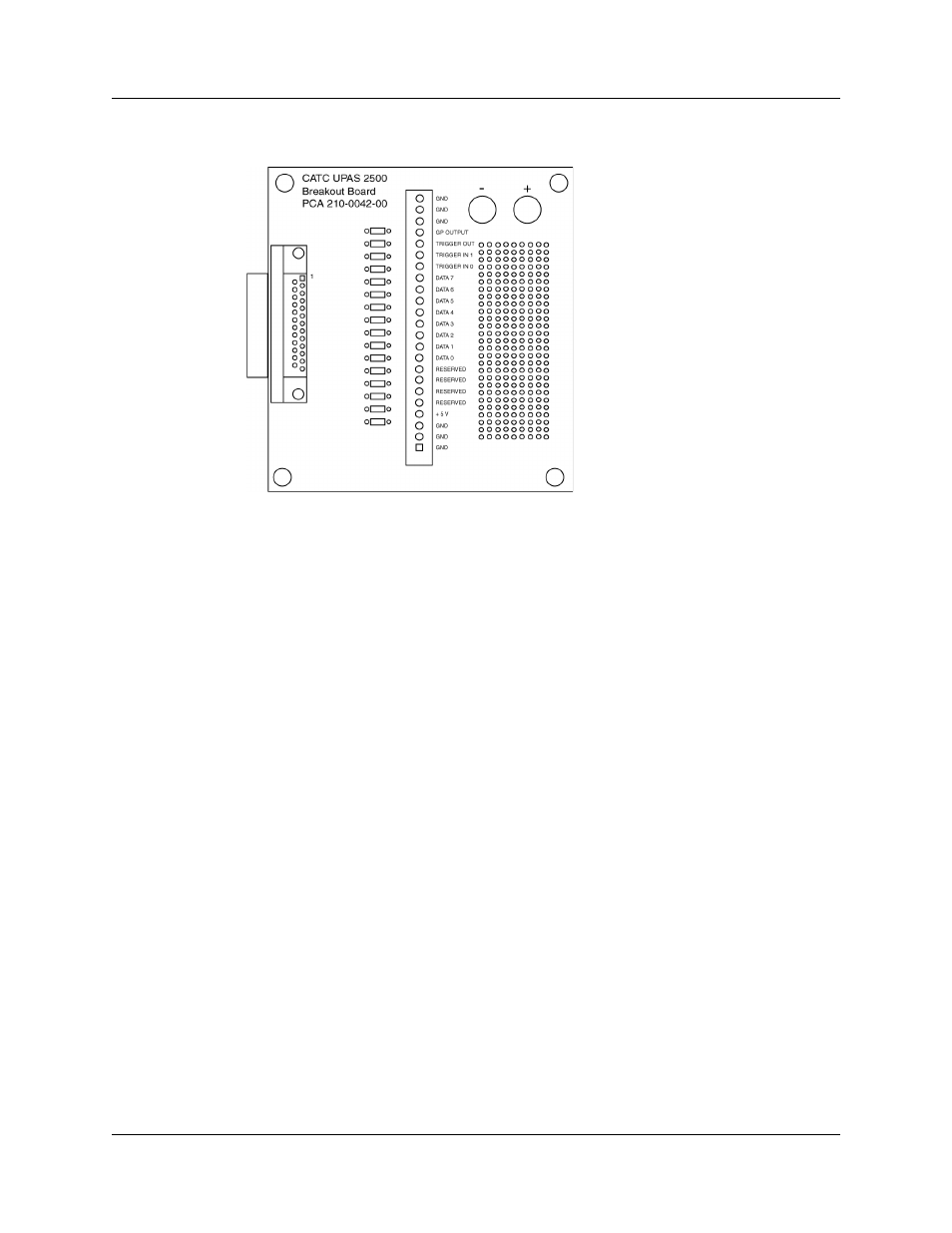

External Interface Breakout Board
Prototype
Rework
Area
The Breakout Board contains a prototype rework area for making custom circuits for rapid
development. The area consists of plated-through holes, 20 columns wide by 27 rows
long. The top row of holes is connected to GND and the bottom row is connected to +5V.
The remaining holes are not connected. Use the rework area to insert custom
components and wire-wrap their respective signal, power, and ground pins.
Configuring Input Signaling through the Breakout
Board
Triggering
an
Avalanche
System
To configure the Avalanche analyzer to trigger on an input signal from the breakout board,
perform the following steps:
Step 1 Select Setup > Recording Options (Avalanche).... and select
the Triggering/Filtering tab.
Step 2 Under Global Rules, click on the
link
Step 3 Select BOB Input - TRIG from the Events menu. Specify the
Trigger Source, Input Events and Pulse Length parameters to
match the expected signal from the external device, then click
OK
Step 4 Click on the link and select
Trigger, then click OK.
Step 5 Select Start from the Record menu
