If NOT is checked, any unchecked Frame will generate an event match.

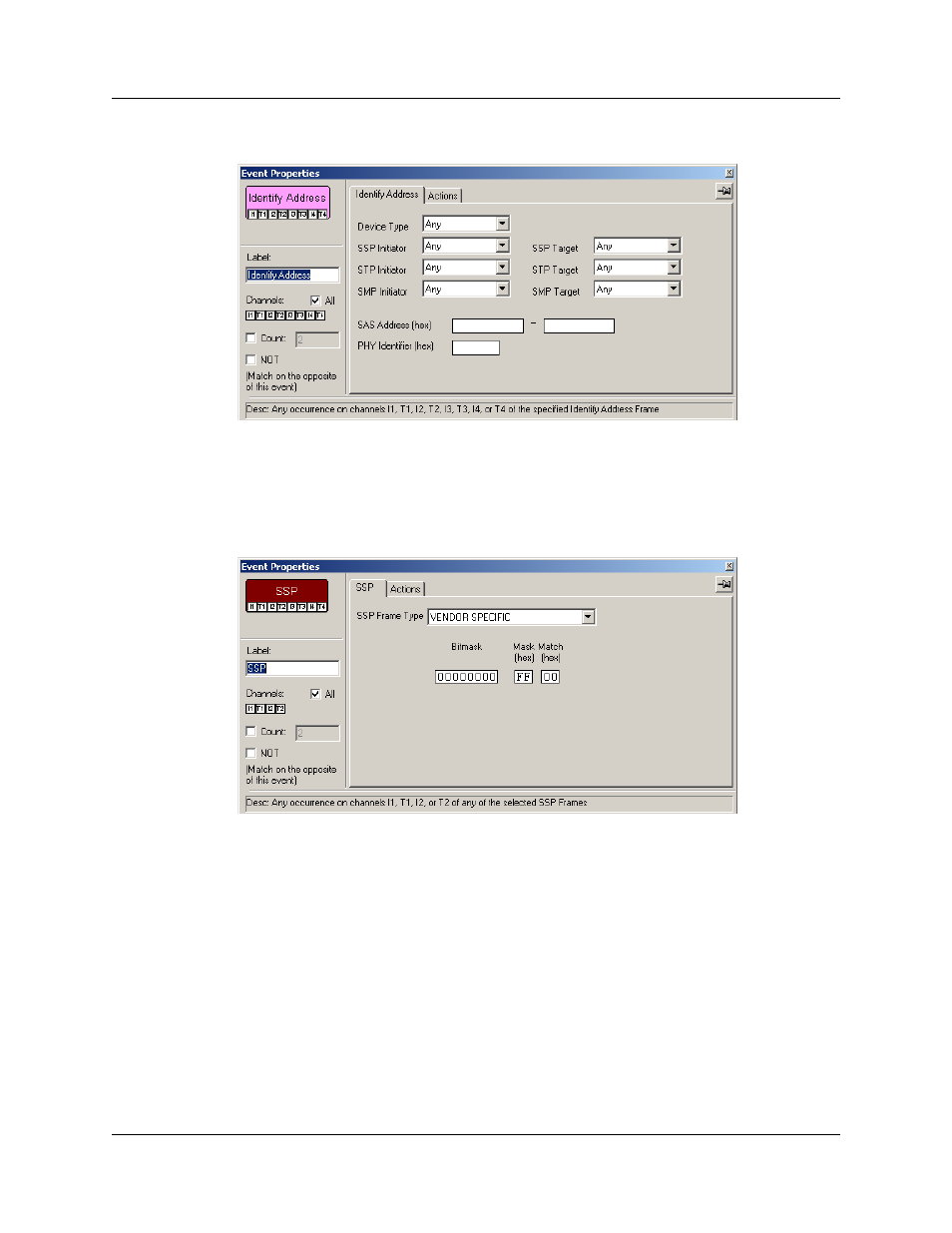

SSP Frames
Properties
Dialog
Presents options for triggering or filtering on SSP Frames. To specify an SSP Frame
type, select an item from the drop-down menu. If desired, you can further define the
event by specifying a data pattern in the data fields. To enter a value in binary format,
use the box marked Bitmask. To enter a value in hexadecimal format, use the boxes
marked Mask (hex) and Match (hex). If NOT is checked, any unchecked frame will
generate an event match.
