Hiding Traffic

You can hide Aligns, Channels and other data from the Link Tracker window by clicking
the Hide buttons on the toolbar in the Trace window

or by

selecting one or more of the various Hide options in the Display Options dialog box.

Zooming In and Out

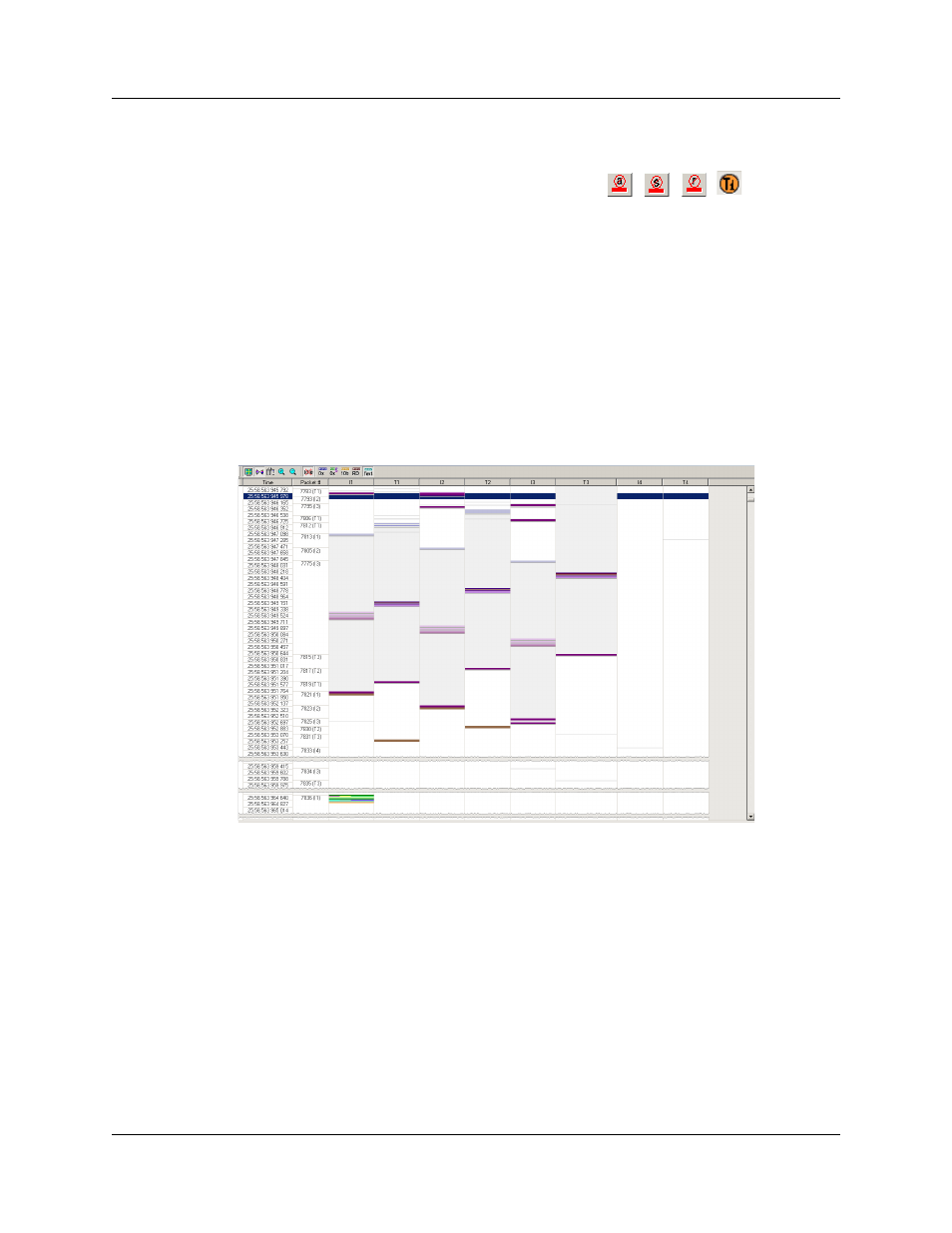

Zooming out can give you a quick, high-level view of a trace. A fully zoomed out trace
will only show columns and colored lines. Using the colors you can see what types of
traffic running through the trace - for example, brown represents data, and dark green is
a Start of Frame.

Further information can be obtained on any point of interest in the trace by positioning
your mouse pointer over it. Tool tips provide detailed description of events.

Note that when fully zoomed out, the smallest graphical unit is the dword, represented by
a single line. Zooming out makes the trace appear smaller and increases the time scale
in the first column.
