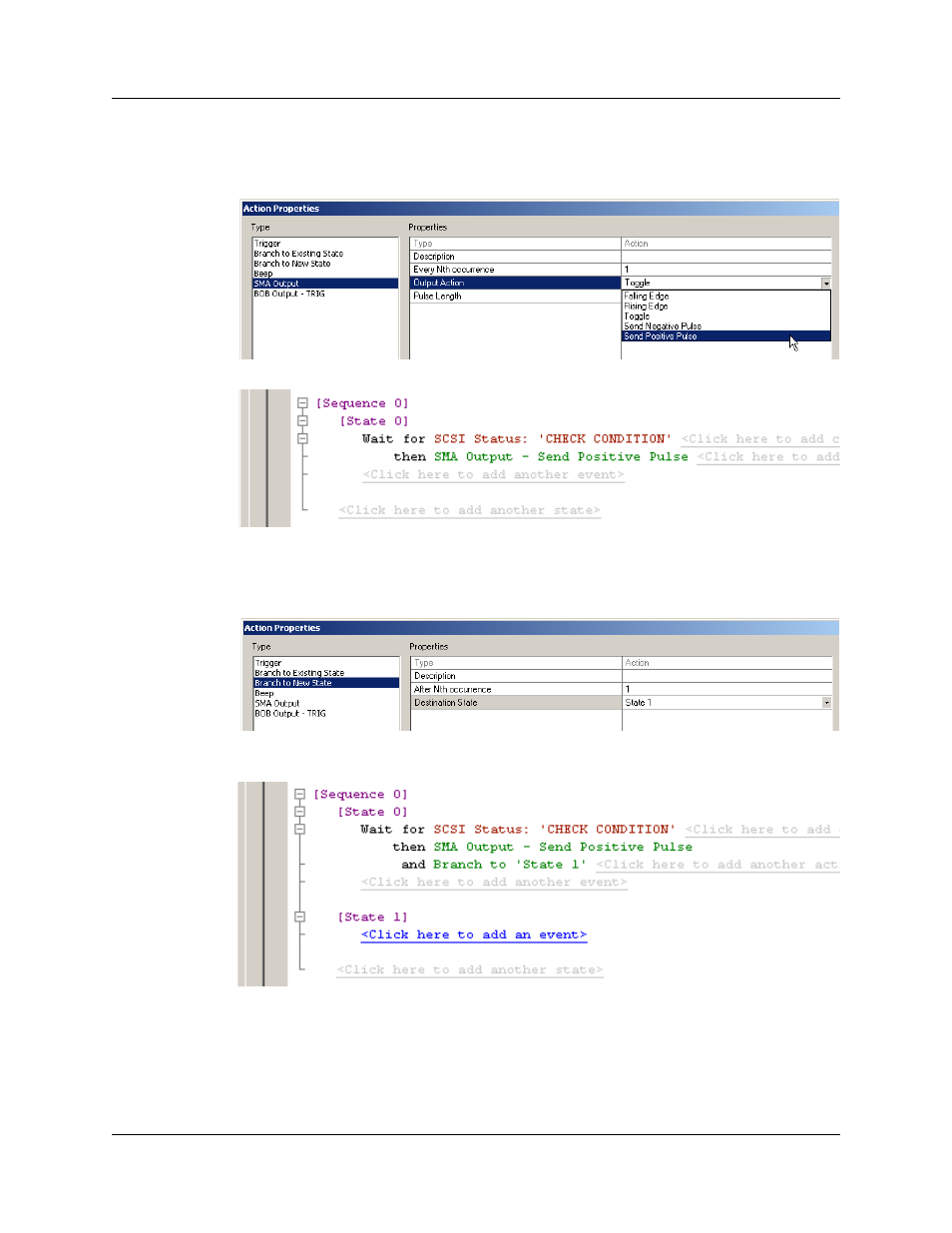

To complete State 0, we need to select an action, so click the link "action>" and select "SMA Output", then in the drop-down list of outputs select "Send
Positive Pulse", as follows:
Click OK, and State 0 now reads as follows:
However, we don’t want this action to just happen once, we now need the system to wait
for a response from the external system when it is ready for the next Check Condition.
So click on the link next to "Send Positive Pulse" that reads "action>" and select "Branch to new state" from the list of actions. The screen now shows:
The default values provided of branching on the first occurrence and branching to State
1 are what we need, so click OK and the sequence we are building now looks as follows:
