Bus Utilization
The Bus Utilization window displays information on bandwidth use.
To open the Bus Utilization window, select Report >Bus Utilization or click the button
marked

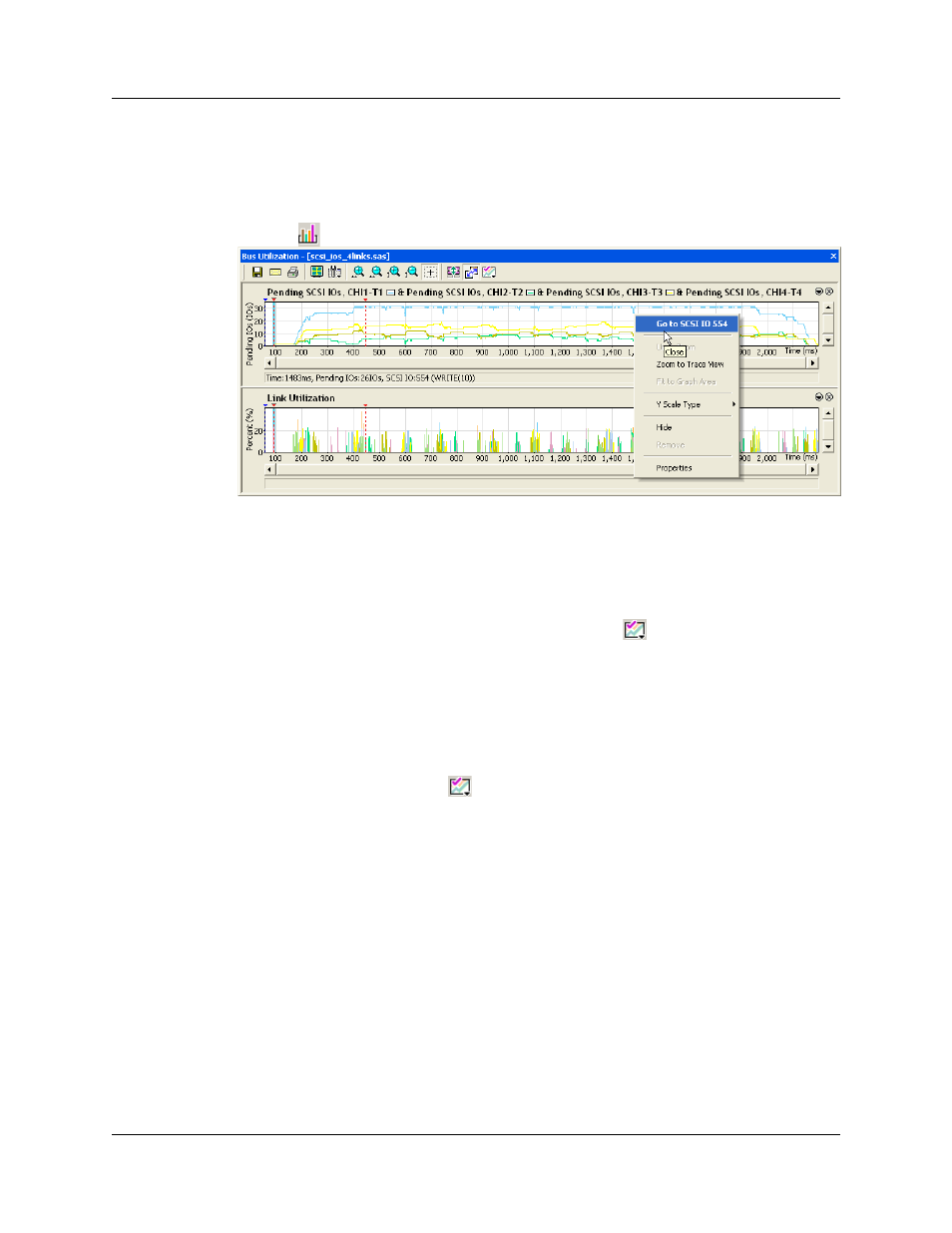

. A window opens like the one shown below:
Window Layout
The Bus Utilization window divides into two areas:
• Graph Area - Displays graphs. Initially, no graphs will be displayed.
To display one or more graphs, click and make a selection from
the menu. See “Graph Areas Menu” on page 179 for an explanation
of the types of graphs listed in this menu.
• Min/Max/Avg Area - Displays the minimum, maximum, and average
values for several parameters. Data is available only after you have
displayed the relevant graph. After displaying a graph, the
Min/Max/Avg information is calculated and is thereafter available to
the user even if the graph is closed. The user can close this section
by clicking
and deselecting Statistics Accumulation from the
menu.
