Interrupting
the Upload
Process

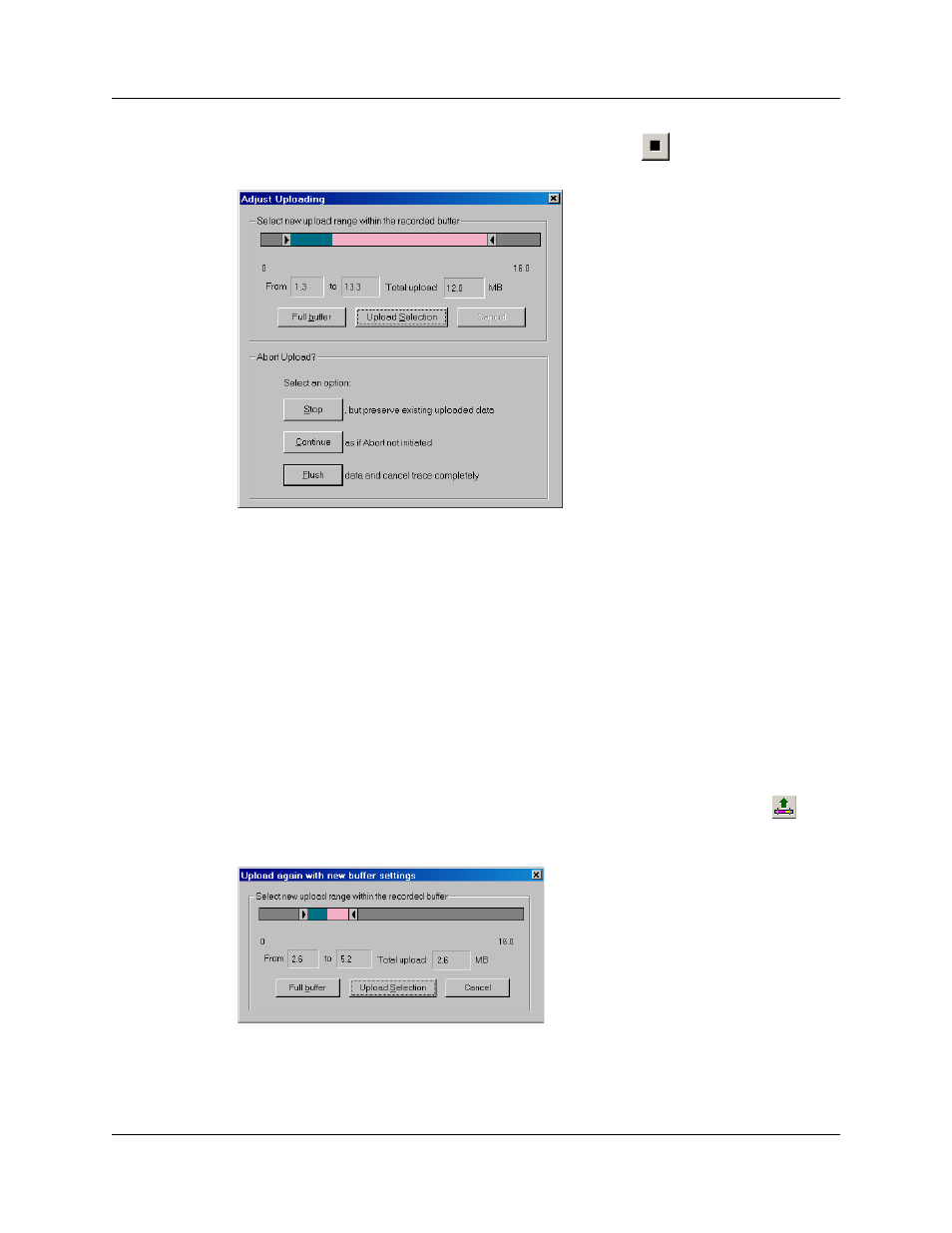

You can interrupt the upload process by pressing the Stop button. Pressing Stop
will cause the following dialog box to open:
This dialog presents options for stopping, continuing, or aborting the recording:
• Select New Upload Range within the Recorded Buffer
•
Slide Bar - Adjust arrows at either end of the slide bar to select the
range of buffer you want uploaded. The color in the slide bar
indicates pre- and post-trigger traffic.
•
Full Buffer - Uploads entire buffer to the PC.
•
Upload Selection - Uploads whatever range you have selected via
the slide bar.
•
Abort Upload?
•
Stop - Stops the recording and then displays the trace on screen.
•
Continue - Resumes the recording.
•
Flush - Cancels the recording without saving or displaying the trace.
Once you have interrupted an upload, a new button will appear on the toolbar: . This
button ("Re-upload") opens a dialog box with a slide bar for re-selecting the range of the
trace that you would like to upload.
