General Display Options
Use the General Display Options to specify the basic appearance of a view.
• Zoom Level: Adjustable in discrete increments from 10% to 200%
percent.
• Enable Tips: Select to enable Tool Tips with explanation text to pop up
when you position your cursor over various fields in the Trace View.
• Wrap: Causes packets to wrap within the window if their length exceeds
the width of the window.

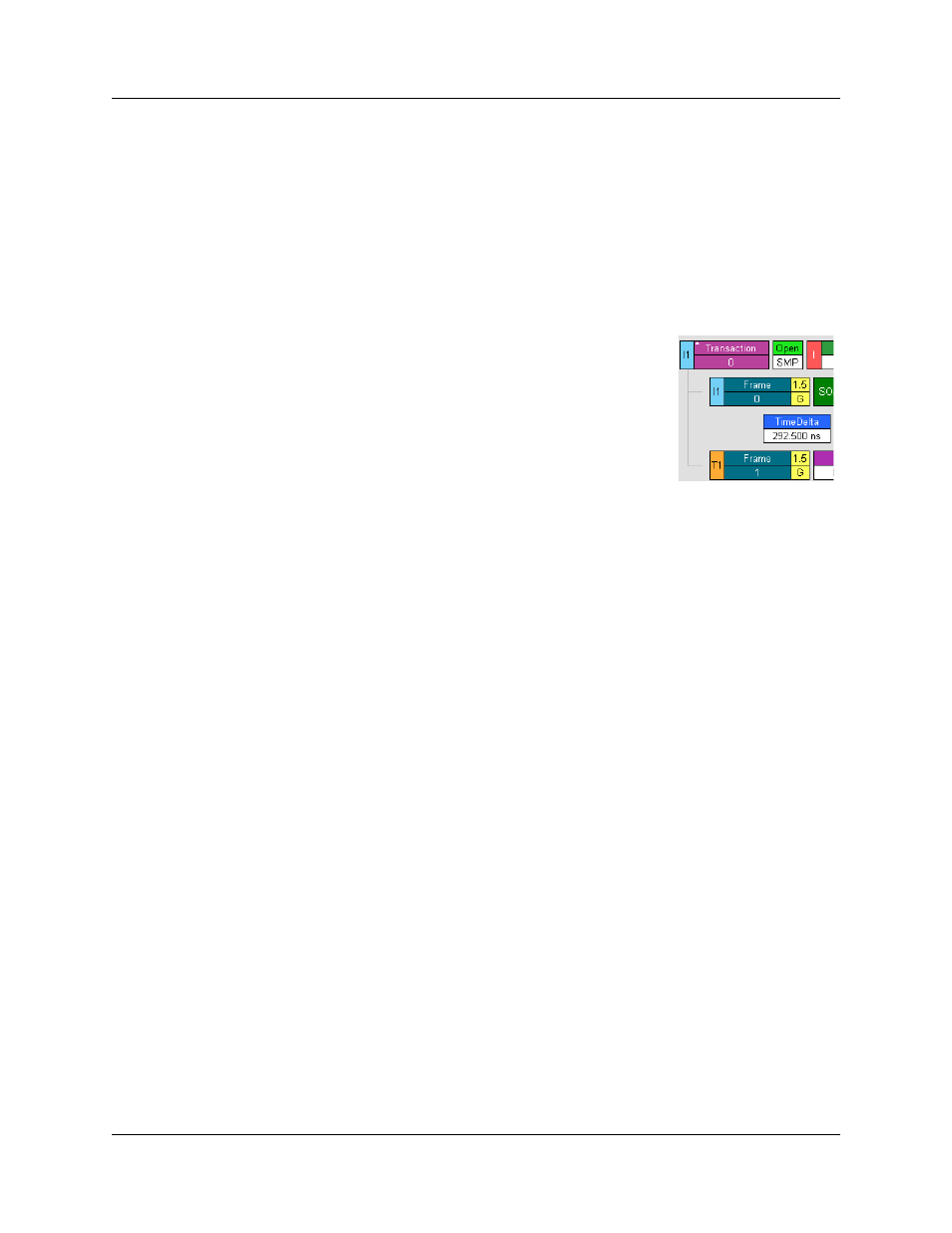

• Hierarchy Lines: Adds faint lines (shown at
left) to the left side of the trace showing the
hierarchical relationship of the Frames,
Transactions etc within the trace. When this
option is enabled, the lines display any time
you cascade higher level decodes.
• Right click cell context menu: Activates
the right mouse button for opening cell
context menus.
• Timestamp At The Beginning: Moves the timestamp from the end of
the Frame to near the beginning.
• Trace Viewing Level: Allows you to select the hierarchical level at
which traffic is displayed.
• Display Configuration Name: Comment field associated with the *.opt
file containing the current Display Options values. You can also create
and store your unique Display Options for future use.
To create a new Display Options file, follow these steps:
Step 1 Enter a comment for the new file in the Display Configuration
Name field.
Step 2 Click Save...
Step 3 Specify a filename (*.opt).
Step 4 Click Save.
