SASSuite User Manual Version 6.25
LeCroy Corporation
187
Frame Tracker Window
The Frame Tracker window displays a detailed chronological view of traffic on a
Frame-by-Frame basis. Events are shown within columns within the window, each
column representing a channel. Time is presented as rows. Idle time is shown by empty
rows in the window.
Each time slot in the vertical axis represents the elapsed time required by the Frame to
traverse the bus.
Opening the Frame Tracker Window

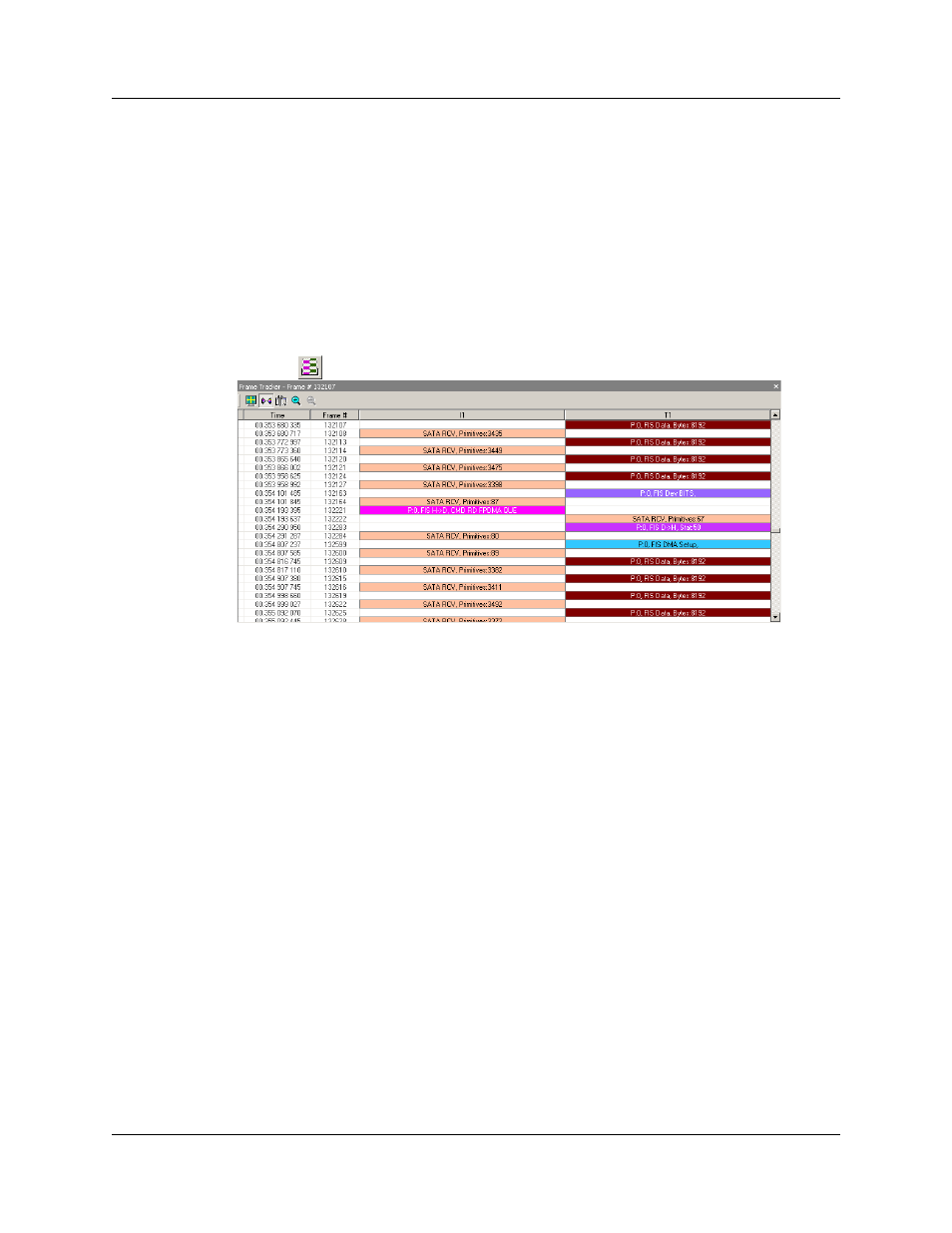

To open the Frame Tracker window, select Report > Frame Tracker or click the button
marked
. A window opens like the one shown below:
Window Layout
The Frame Tracker window divides into two areas:
• Toolbar - Presents buttons for changing data format.
• Main Display Area - Displays traffic chronologically as it occurred in
the recording. The window divides into columns: the first column
shows time and traffic is shown on a channel by channel basis in the
columns on the right.
