2.22 Trace Info
Selecting Trace Info opens the Trace Info dialog. It displays detailed information about the
captured trace (see Figure 2.66).

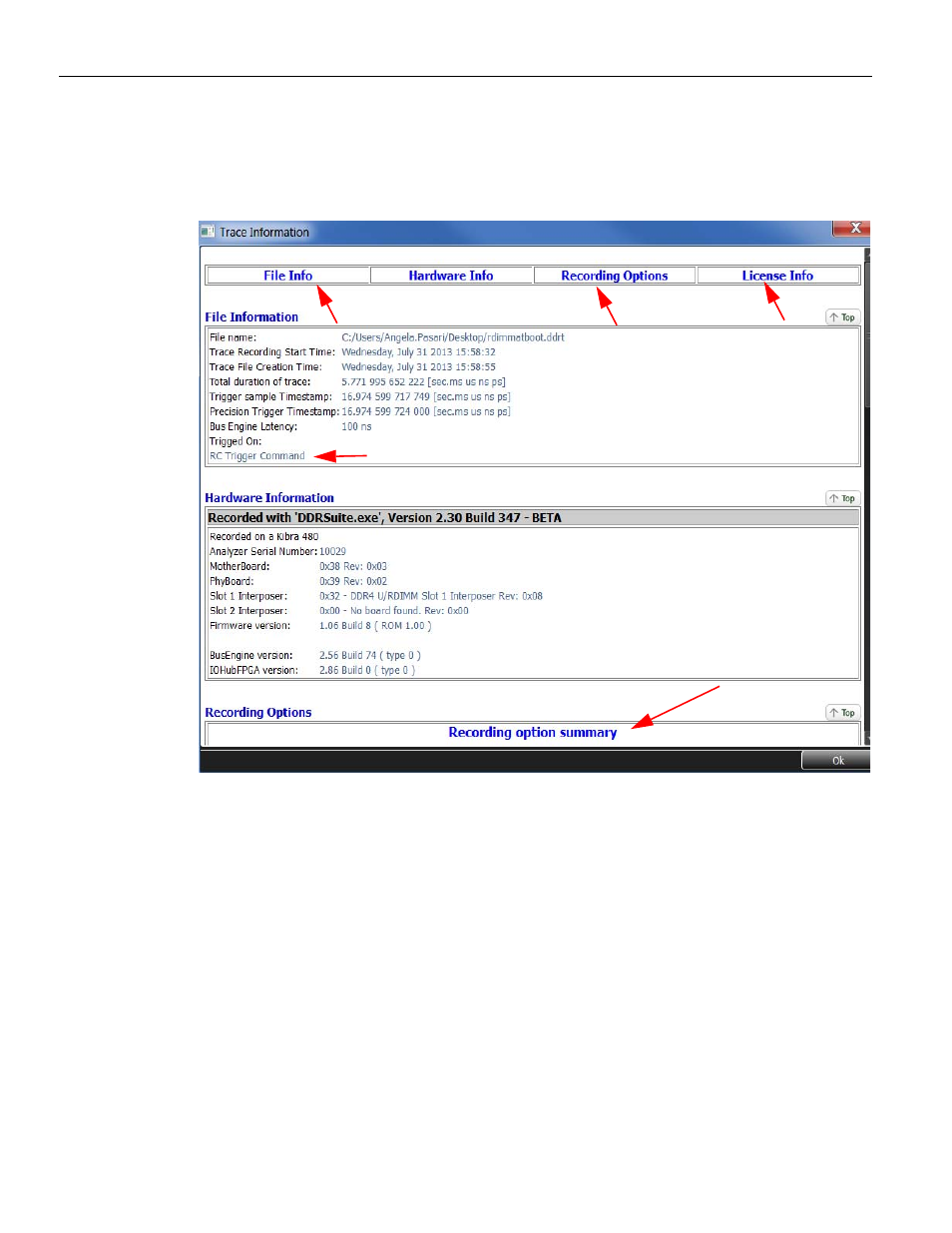

Figure 2.66: Trace Info Dialog
The window provides information about the file name, location and statistics of the trace,
the analyzer hardware and software details and the recording options used to create the
trace. Click on each of the four links on the top of the screen to make them visible. Click
the Top button to go back to the summary.
The Precision Trigger Timestamp latches the time at which the trigger signal occurs. The
trigger Sample Timestamp is the timestamp of the first event shown on the screen after
the trigger signal occurs. It is possible for these to be very different numbers. For
example, if the trigger occurred from an external source when the current analyzer was
filtering incoming events.
If the Trigger was caused by a Protocol or Timing Violation, the specific violation type will
be displayed in the File Information section of the Trace Information dialog
