Kibra DDR Protocol Analyzer User Manual 131
Viewport Slider/Navigation Bar Teledyne LeCroy
3.3.2 Gap Markers
The areas highlighted below indicate that there was a time lapse here while capturing the
trace. The Time Lapses are due to either Filtering or to actual clock stoppage. The filtered
items are also reflected in the Navigation bar.

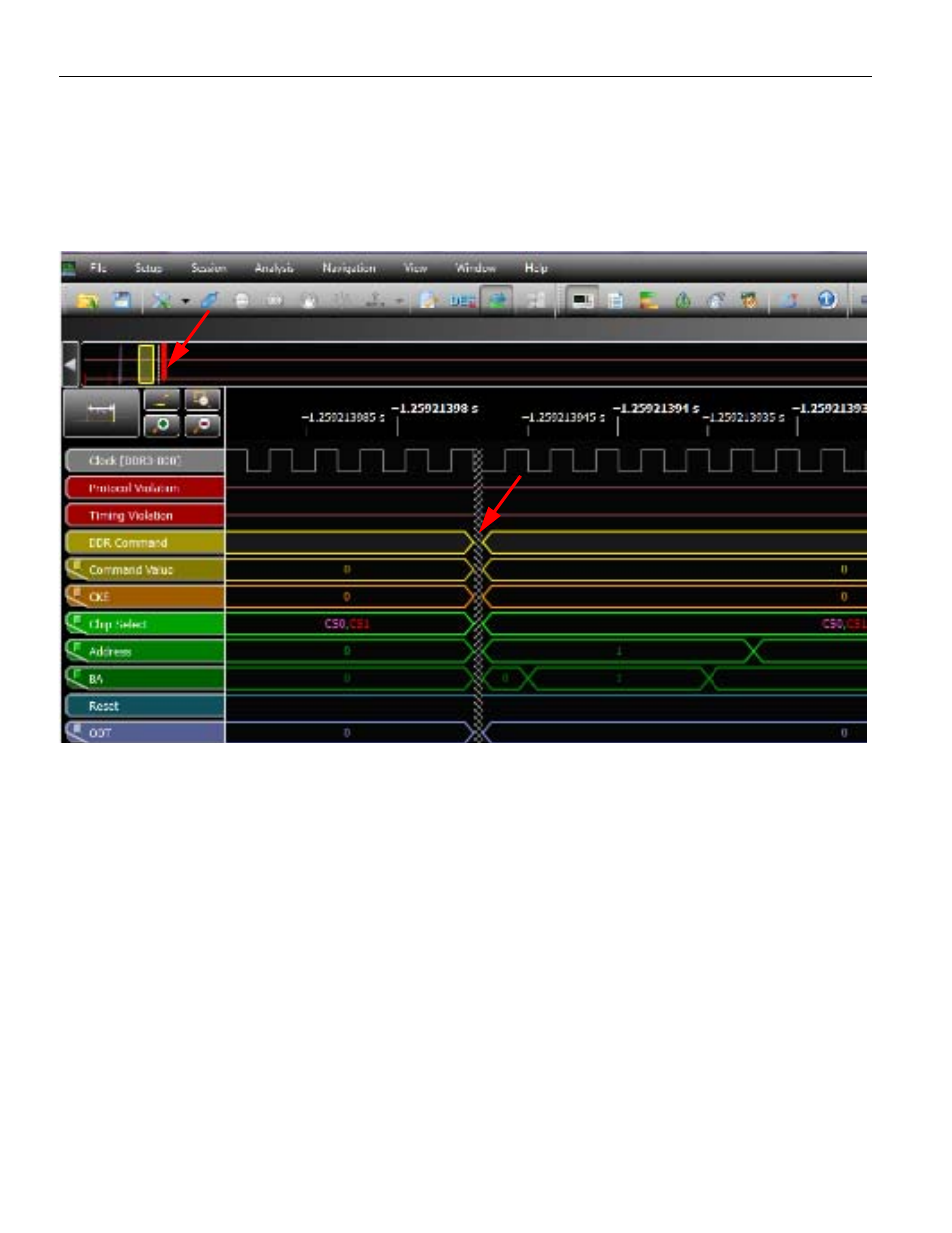

Figure 3.39: Time Lapse While Capturing Trace
