Kibra DDR Protocol Analyzer User Manual 137
Bank State View Teledyne LeCroy

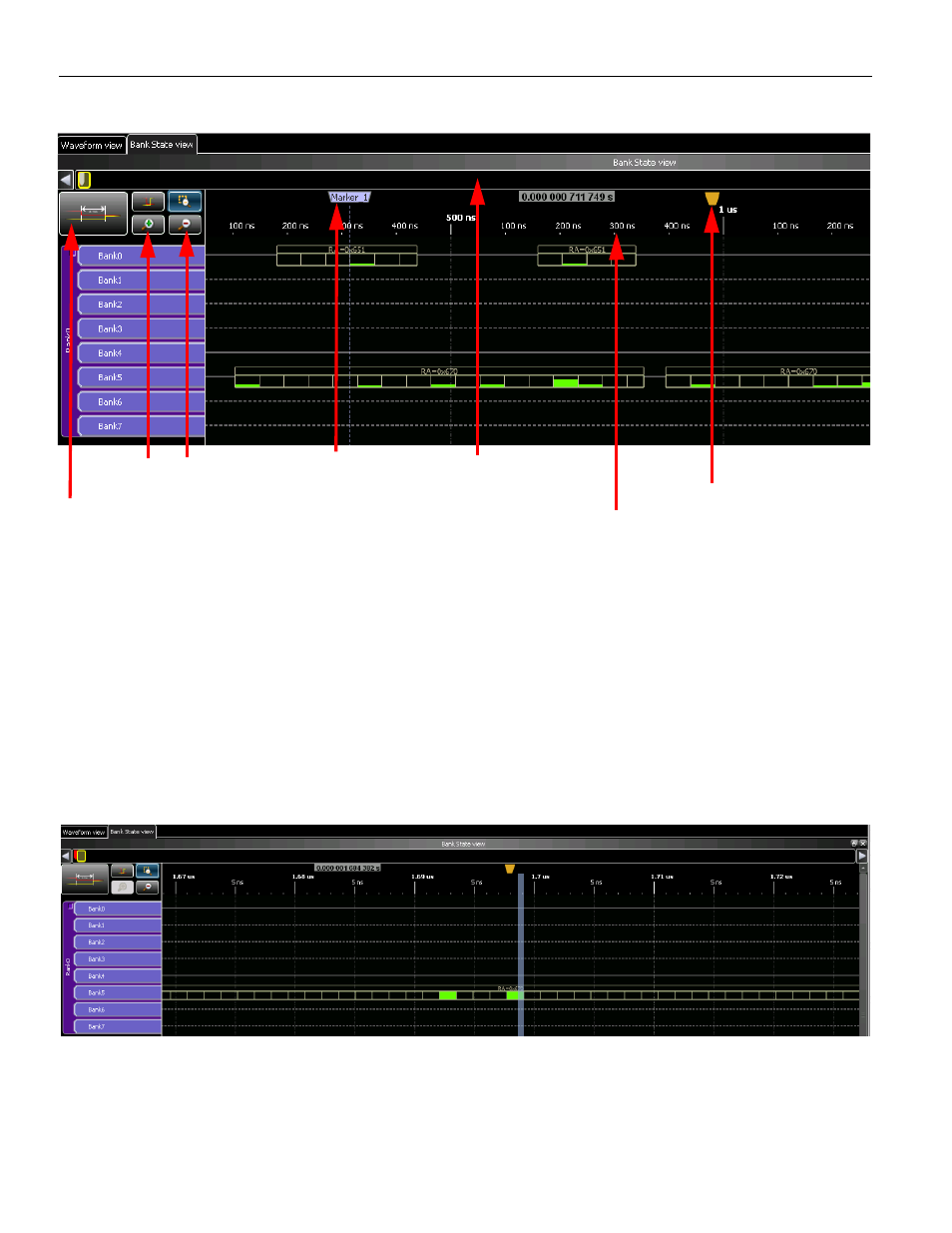

Figure 3.47: Common Features of the Bank State View and Waveform View
3.5.2 Views
There are different amounts of information viewable in the Bank State View depending
on your Zoom level.
Shown below are Zoom Levels to demonstrate these.
Maximum Zoomed In View
This is the maximum zoomed in view. In this view the user can view all the traffic details
on a specific bank.The main information in this view is active states along the time axis.
Figure 3.48: Bank State - Maximum Zoomed-In View
Zoom Buttons
Cursor Insertion
Markers Navigation Bar
Anchor Point
Time Ruler
