Waveform View Teledyne LeCroy

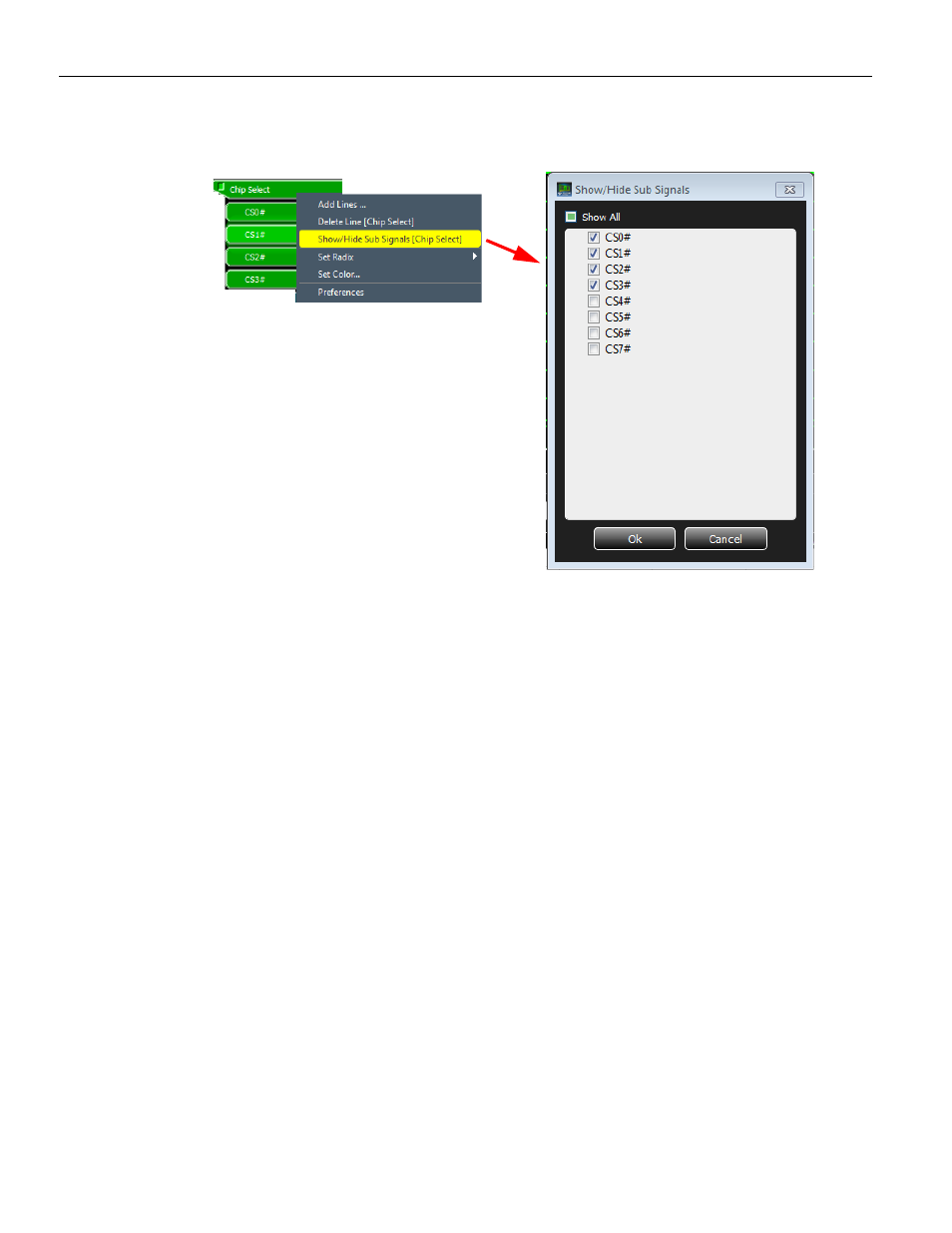

Figure 3.24: Show/Hide Sub Signals Dialog
Preferences
Displays the Preferences dialog (see Figure 2.44 on page 72 .)
3.2.14 Markers
Markers are useful to identify specific points in the data.
The Edit Markers dialog allows you to set the colors, name, description and the time value
for markers. Markers can be set, edited and deleted in Waveform, Listing and Bank State
Views. You can also go to specific markers in these three views. Right‐click in the view and
select Edit Marker.
The Edit Markers dialog has the following fields (see Figure 3.25 on page 118 ):
 Markers: Click on this field to view the markers in the drop‐down list.
 Name: Enter or edit the marker name in this field.
 Color: Select a color for the marker by clicking on the color field.
 Comments: Add comments for later use.
 Time Stamp: Markers can be time stamped. Choose one of the three self‐explan‐
atory options:
 Real time stamp
 Relative to first
 Relative to Trigger point
