Kibra DDR Protocol Analyzer User Manual 87
Bank State View Teledyne LeCroy
2.16 Bank State View
The Bank State View provides a Bank by Bank view of the changing bus states. It is
separated by bank to enable a more insightful picture of the activity in a way that is often
obfuscated in a waveform view. The user can collapse/expand multiple signals into
individual banks in a rank, and zoom and scroll through the traffic on a specific bank.

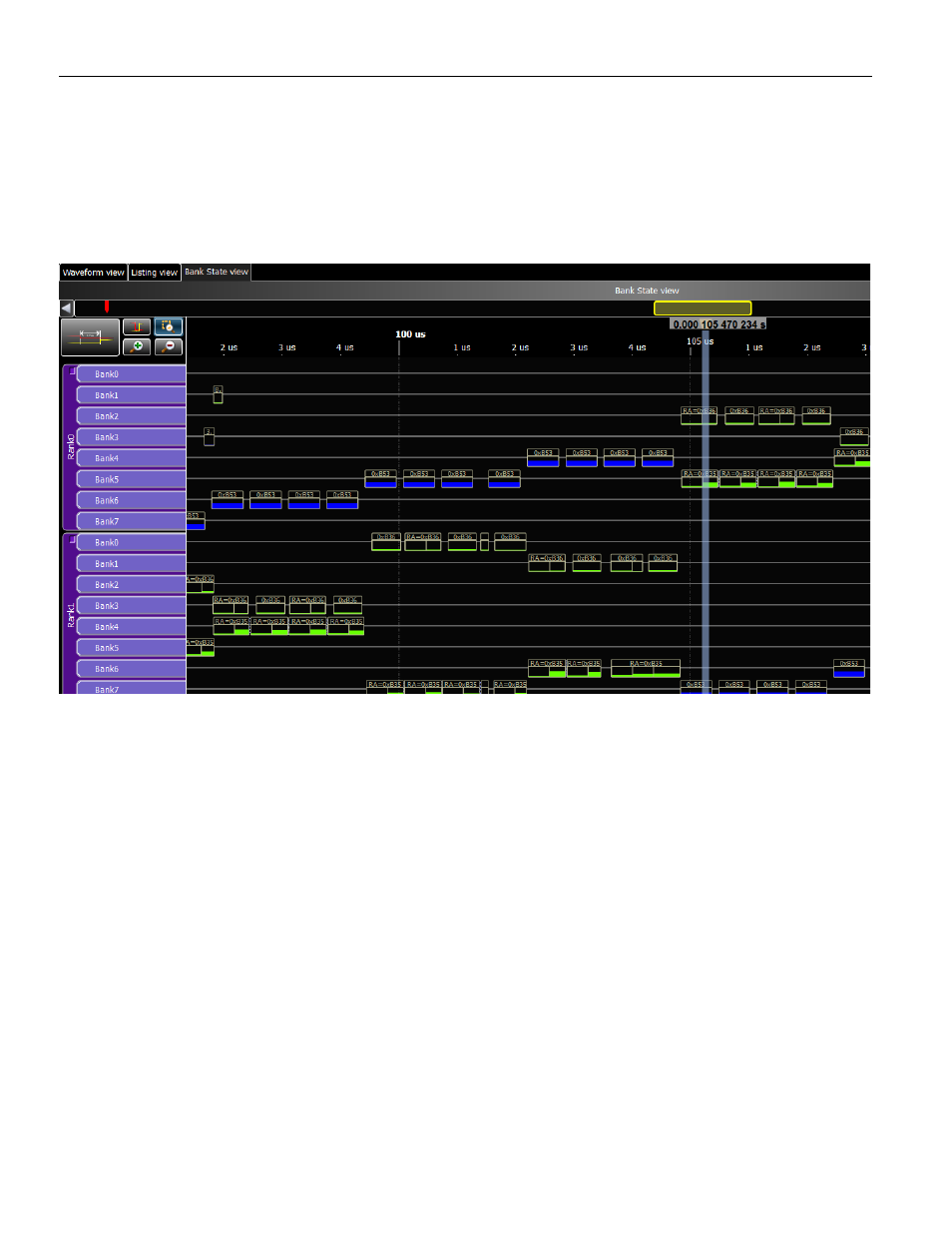

Figure 2.59: Bank State View
For additional information on the Bank State View. See “Bank State View” on page 133.
