Teledyne LeCroy Waveform View
120 Kibra DDR Protocol Analyzer User Manual
Signal Names Column
Click and drag to increase
column height
Click to hide Group
Click to view Group
Right‐click context sensitive menu
A column of signal names is displayed on the left as shown in Figure 3.28.

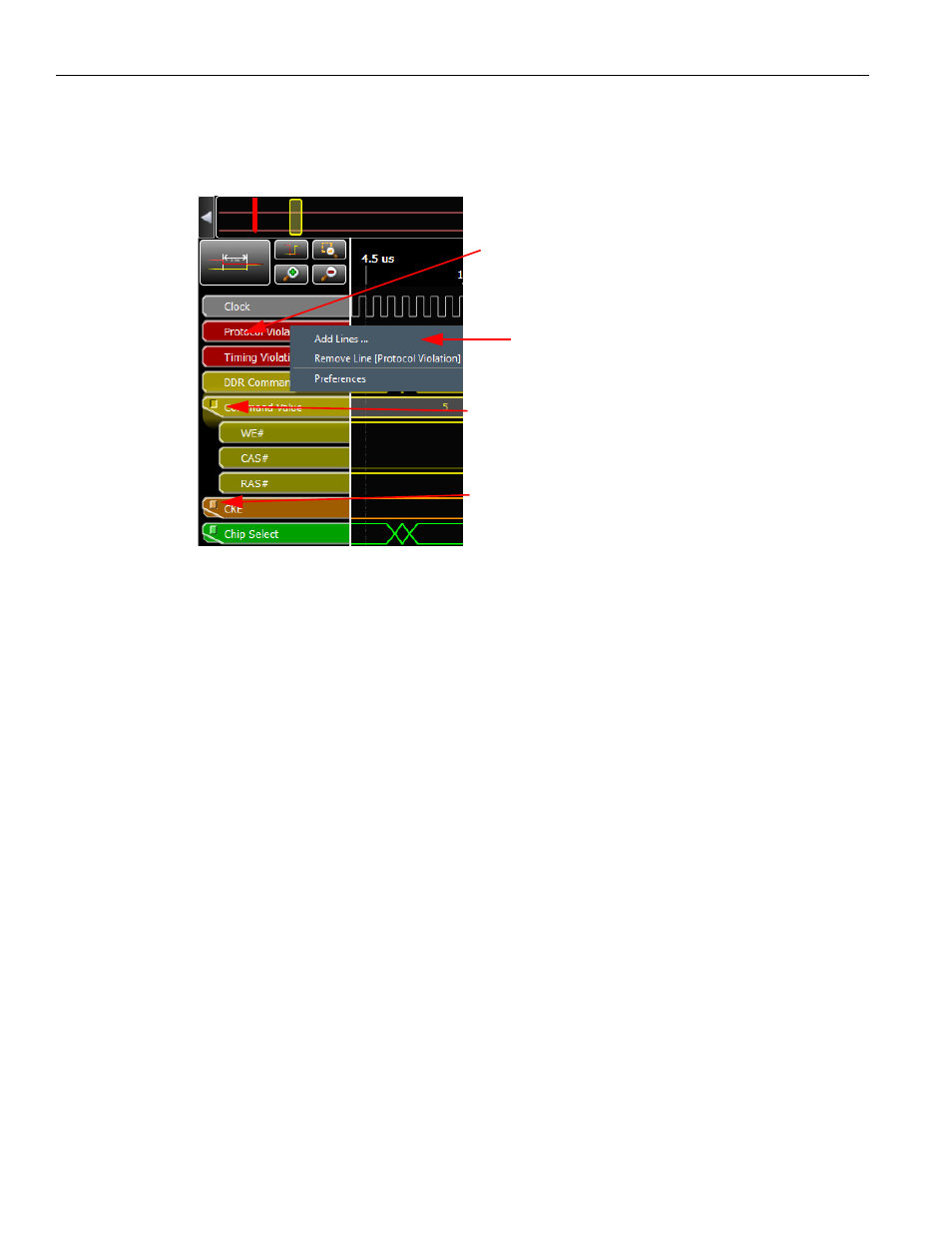

Figure 3.28: Signal Names Column
Additionally, you can also do the following in the Waveform View.
 Moving the Viewport Slider moves you across the view, see the Viewport Slider/
Navigation Bar section below for details.
 Right‐clicking on the Label for the DIMM channel allows the user to add or
remove signals or signal groups from the waveform view.
 Left‐clicking on the + symbol in each label allows the user to expand or collapse a
signal group.
 You can re‐position the order of the signals by dragging the label up or down to
the desired position.
 Scrolling the mouse wheel will cause the waveform area to ZOOM‐In or Zoom‐
OUT.
 Double‐click at a specific location to move it to the center of the screen.
The Clock signal is enhanced to show the measured and nominal (configured) clock
values (see
Figure 3.29 on page 121 ). The first value is the value measured in this region
of the acquisition, whereas the second number in parenthesis is the value as selected in
the Recording Options for this session. The units is MT/s. If "???" displays in the first field,
it means we are unable to determine the clock speed due to filtering or insufficient clocks
to examine.
