Kibra DDR Protocol Analyzer User Manual 17
DDR Interposer Teledyne LeCroy
Power on Procedure
1. Start the DDR Protocol Suite application.
2. Make sure the DDR Interposer(s) is/are attached securely to the Kibra unit.
3. Verify that either:
Interposers are not inserted into the system under test.
OR
Interposers are inserted into the system under test AND power is OFF on the system
under test.
4. Power On the Kibra unit and wait until the Phy's have completed initialization.
5. Power On the system under test.
1.5 DDR Interposer
The Kibra Interposers sit between the Host Under Test (HUT) DIMM slots and the DIMMS
under test. The interposers add less than 1 inch of trace length and a resistive tap to
minimize effects on signal quality while ensuring an adequate signal for the Analyzer.

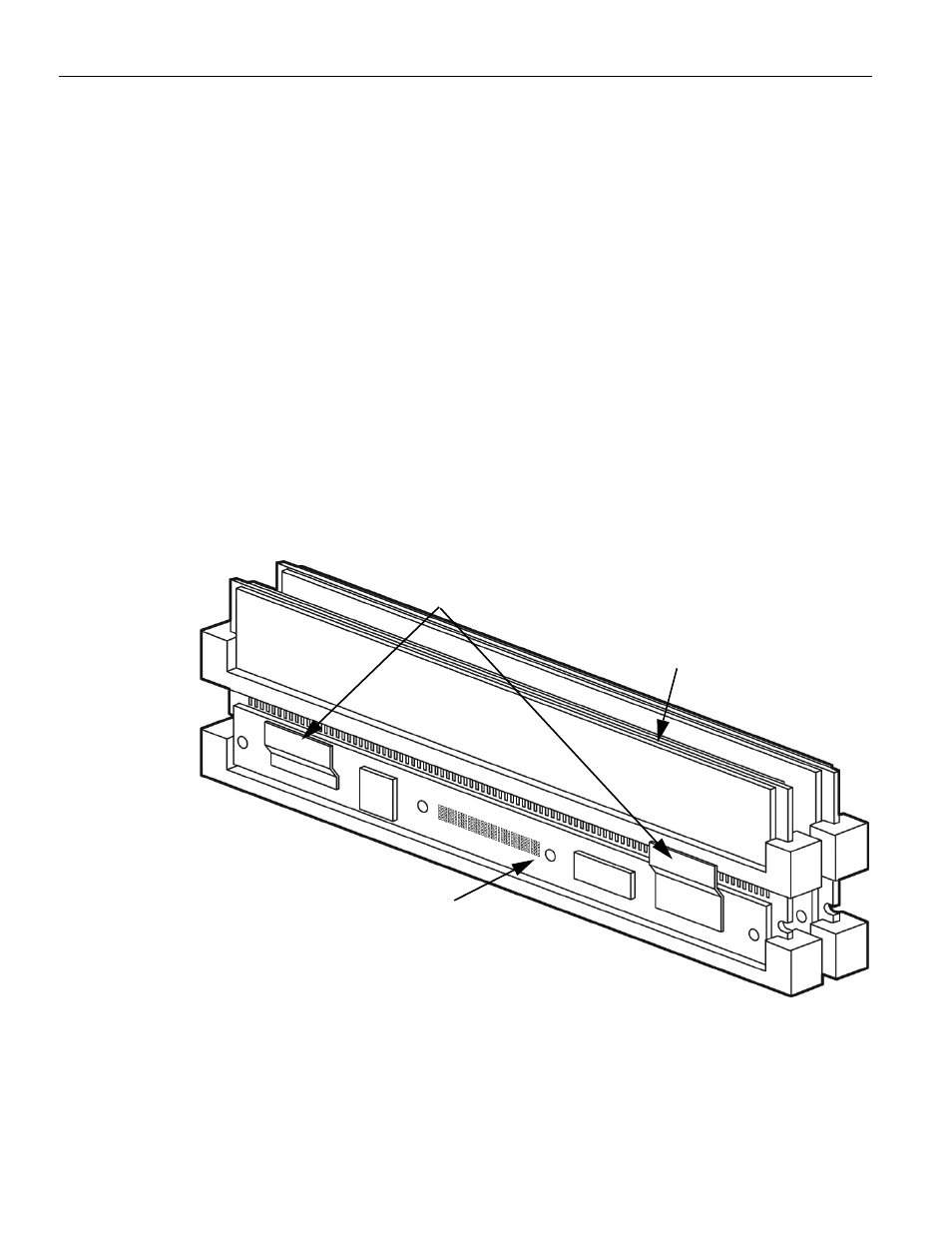

Figure 1.4: DDR Interposer
DIMM
Cable to Analyzer
DIMM Interposer
