Teledyne LeCroy Bank State View
136 Kibra DDR Protocol Analyzer User Manual
Configuring Visible Banks
The application allows users to configure the bank state view according to their
preferences in terms of visible banks in the view and the coloring of the states.
After the recording of a trace is finished, the application shows all selected ranks and
banks in the recording option by default. However, by right‐clicking on the bank state
header section, the application shows a popup menu which hides the desired banks or
shows hidden banks (see Figure 3.46). The view configuration is saved in the trace file
automatically and the user will see the view with the last configuration when the next file
opens.

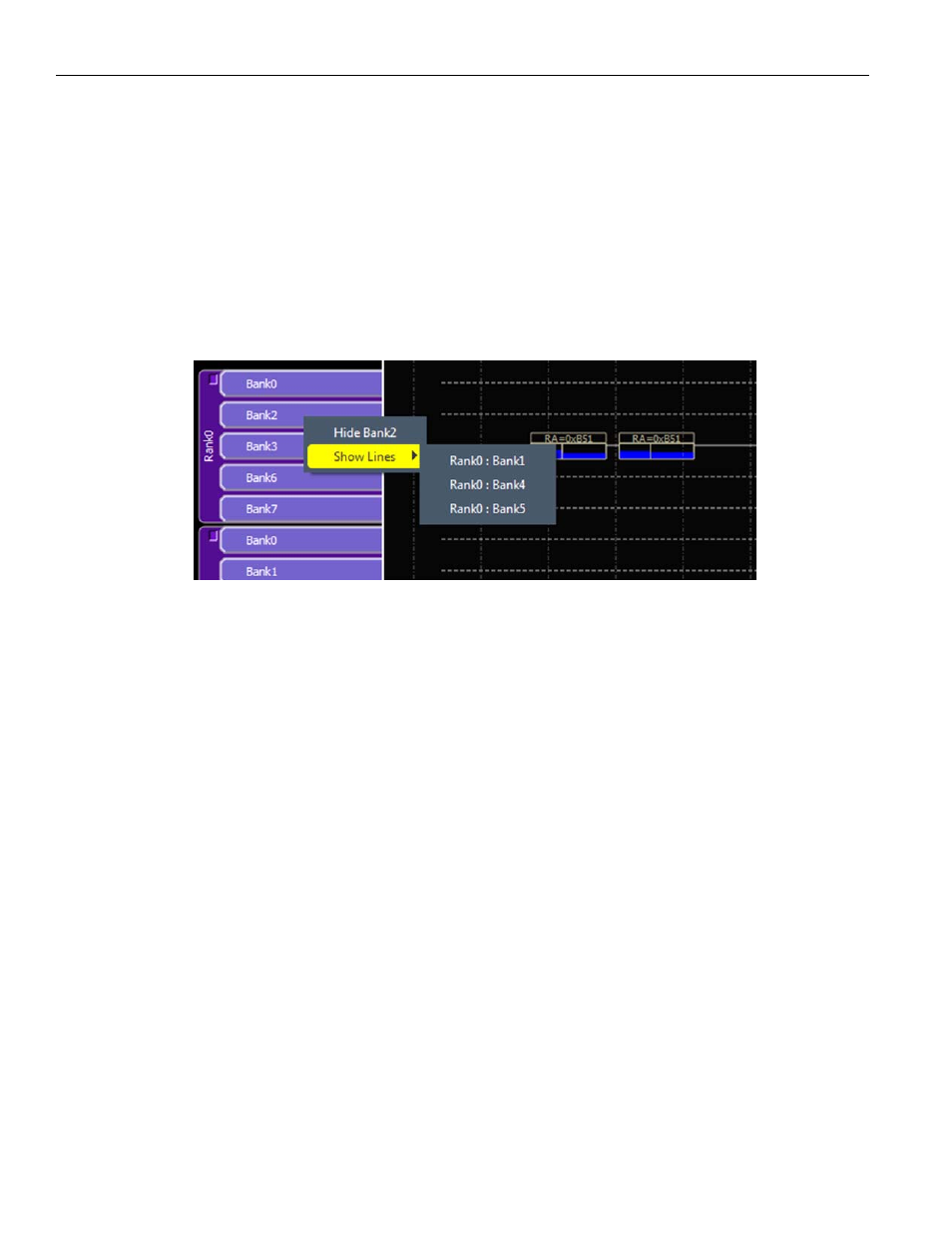

Figure 3.46: Configuring Visible Banks
Common Features of Bank State View and Waveform View
The Bank State View provides all the common features of the Waveform View which are
described before in
“Waveform View” on page 103 . The important common features are
(see Figure 3.47 on page 137 ):
 Navigation bar
 Markers
 Cursor
 Time Ruler
 Zoom in/zoom out capabilities
As in the Waveform View, in deep zoom‐out when the state duration is smaller
than a visible pixel on the screen, the state will be shown as reduced symbol
(see
Figure 3.50 on page 138 ).
 Common Navigation hot keys
 Anchor point to show the synch point with other views
