Teledyne LeCroy Row Usage Report
148 Kibra DDR Protocol Analyzer User Manual
Define Analysis Detail Parameters
The Row Usage report result is partitioned into two main sections:
 Cycle Reports ‐ Cycle report works in periodic intervals. This interval could be
defined according to time range or cycle reset by specific command.
 Commands Count Report ‐ Command counts report provides the number of
command counts per selected row(s).

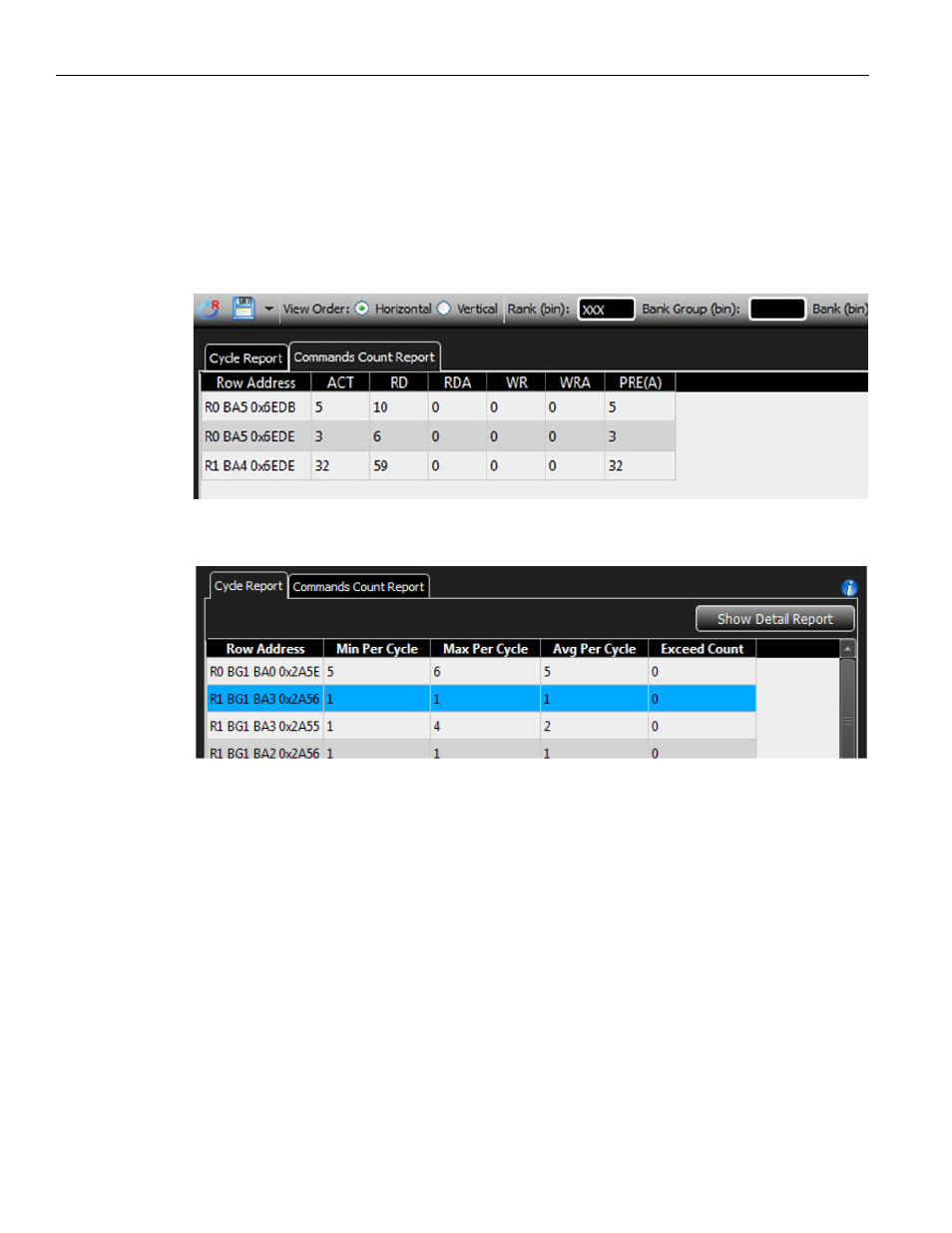

Figure 3.69: Commands Count Report Dialog
Figure 3.70: Cycle Reports Dialog
Show Detail Report
By pressing this button, the user can see the detail of the cycle intervals for the item
selected in the Cycle Report grid.
The description of input fields for the cycle reports is as follows:
Counted command: This field specifies which command type is the target for counting in
cycle.
Periodic counter reset: As mentioned before, cycle can be reset according to time
interval or by other command type.
Max allowed counted command per cycle: This field helps to find violated counts [if any
max count is selected] by counting and highlighting violated cycles in report.
