3.3 Viewport Slider/Navigation Bar
The Viewport Slider in the Navigation Bar enables moving across the view (see
Figure 3.37 on page 129 ). It displays a full trace in the window as you slide the bar across
the bar. You can zoom in and out by selection one end of the bar and dragging it in either
direction.
Figure 3.37: Viewport Slider
Select the Viewport Slider till the cursor changes to a cross and drag it in either direction
to quickly move to a specific location, see Figure 3.37. You can also move the slider by
clicking on the left or right arrow on either side of the Navigation Bar. Drag either end of
the bar to zoom in and out.
The red lines in the Navigation Bar show where the Timing and Protocol errors occurred.
3.3.1 Traces Captured with Filtering Enabled
In traces captured with filtering enabled the vertical crosshatches represent areas which
were filtered during capture. These regions of time are filtered by the analyzer to
conserve capture memory (see
Figure 3.38 on page 130 ).

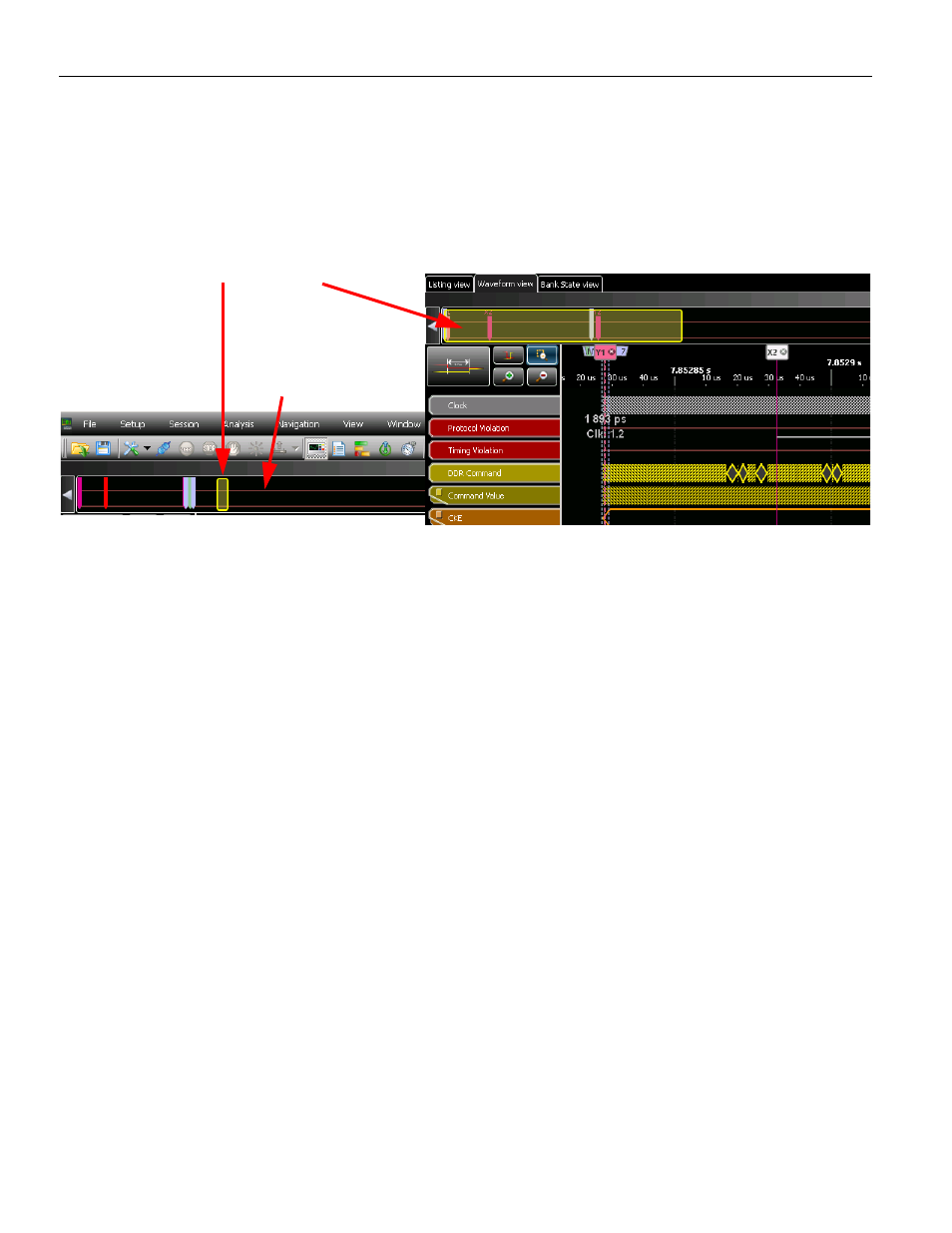

Viewport Slider in the Navigation
Bar
The red lines show
where the timing and
protocol errors occur
