Teledyne LeCroy Kibra 380 or Kibra 480 Overview
10 Kibra DDR Protocol Analyzer User Manual

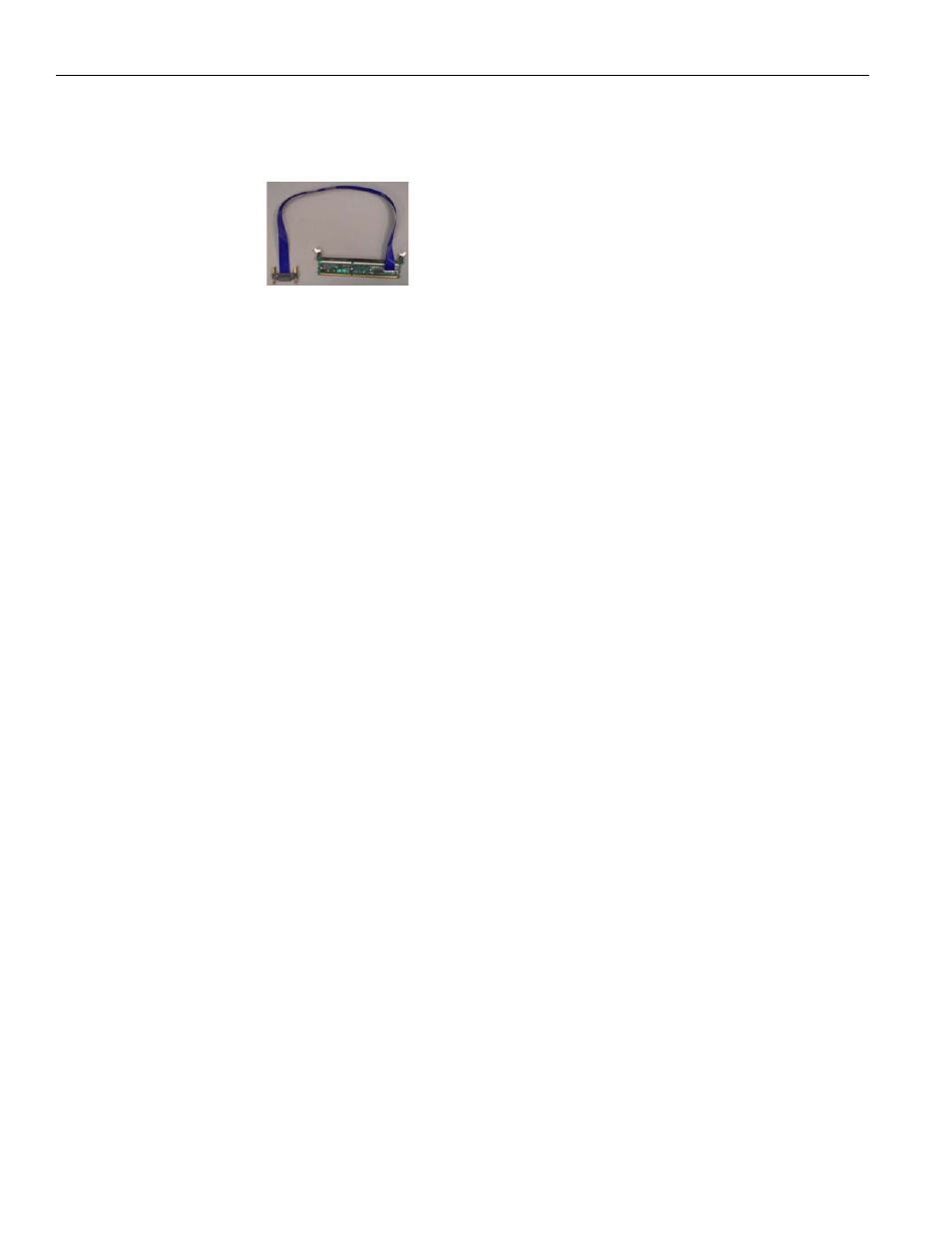

 DDR3 or DDR 4 Slot 2 Interposer cable assembly, sold separately (UDIMM DDR3
version shown below as an example)
 Three‐Prong AC 12V, 5 Amp power brick
 CATC Sync Cable (DB‐9 Male to DB‐9 F)
 Installation CD‐ROM with software and documentation
1.1.2 Unpacking the Kibra 380 or Kibra 480
Inspect the received shipping container for any damage. Unpack the container and
account for each of the system components listed on the accompanying packing list.
Visually inspect each component for absence of damage. In the event of damage, notify
the shipper and Teledyne LeCroy Corporation. Retain all shipping materials for shipper’s
inspection.
1.1.3 Kibra 380 or Kibra 480 Features
 Supports the JEDEC specification (JEDEC defines the DDR specification)
 Records CMD/ADD/CNTRL bus
 Clock based timing displays
 Fast upload
 Large sample capture – 4GB of Recording Memory
 ~500 Million Samples
 Triggers for JEDEC timing violations
 Triggers for JEDEC protocol violations
 User selectable command triggers
 User definable trigger sequence
 DDR3 and DDR4 Analysis
 Clock speeds of 400 ‐ 800MHz (Kibra 380), 400 ‐ 1200MHz (Kibra 480)
 DDR3 and DDR4 Transfer speeds of 800 ‐ 1600MT/s (Kibra 380), 800 ‐ 2400MT/s
(Kibra 480)
 UDIMM/RDIMM/LRDIMM/SODIMM passive Interposer
 Metrics on performance, observed errors
 External Trigger In & Out
 External Read/Write Trigger Out
 Teledyne LeCroy CrossSync support
