Kibra DDR Protocol Analyzer User Manual
147
Row Usage Report
Teledyne LeCroy

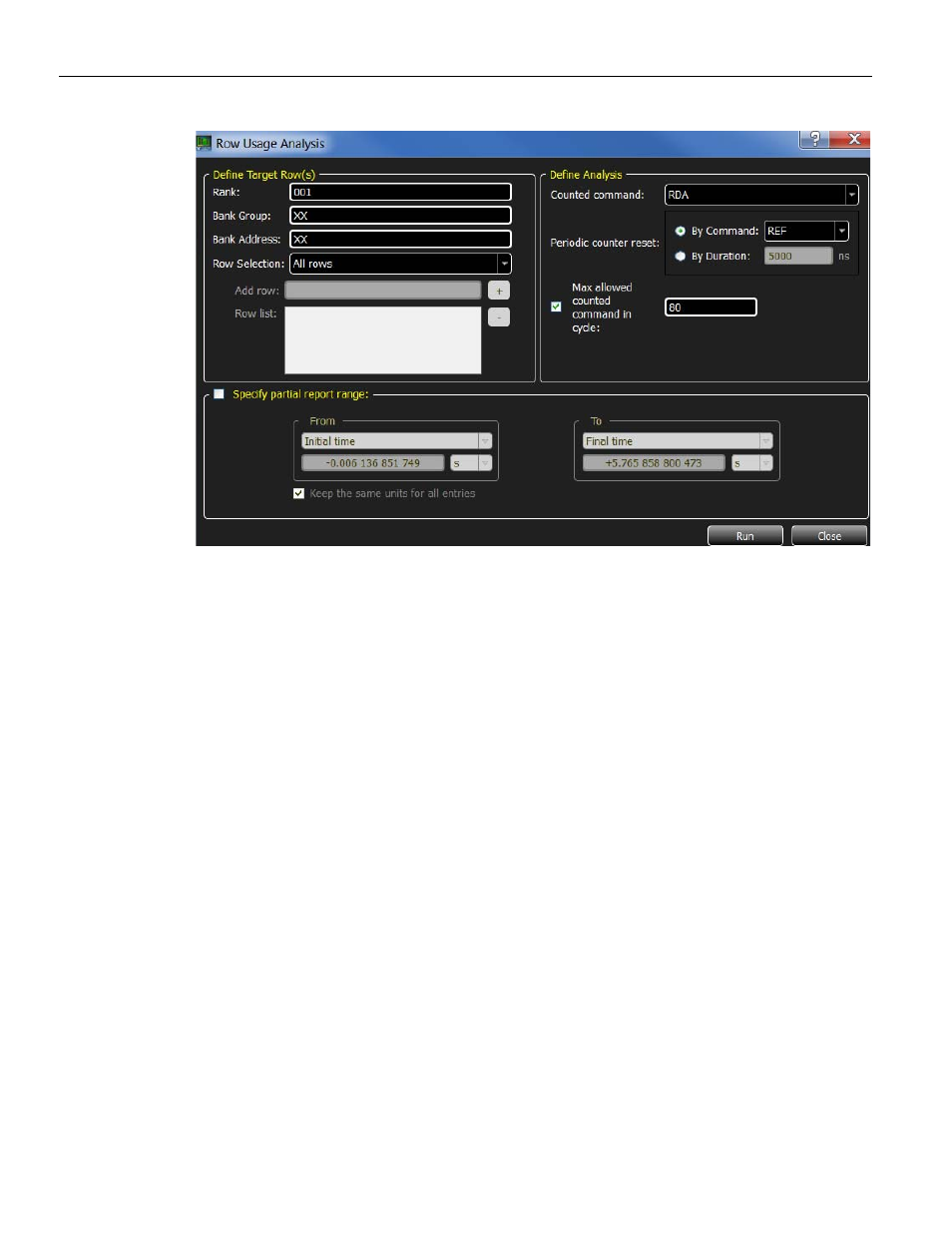

Figure 3.68: Row Usage Analysis Dialog
Specify the analysis parameters which have three main categories.
The Analysis parameters have three main categories:
Defining Target Row(s)
The report provides good flexibility for the user to choose target rows according to their
preference. This selection could be done in Rank\Bank level up to the combination of
single rows. Although the "All rows" option provides whole analysis of trace, it requires
more analysis time and the result may include some additional items of negligible value,
which cause report complexity. However, the user can filter the target items even after
analysis by using filter options available in report toolbar (see
"Rank"/"Bank Group"[DDR4 Only]/"Bank" input fields are binary selection fields which
the user can use to specify one or a combination of them according to "don't care(X)" bit
match. For example, the value "001" will select rank 1 as report target and "00X" will
select rank 0 and rank 1 as the target.
For adding any specific row, the user has to enter the "row address" in "hex" format in the
Add row field and press the add "[+]" button to be added in the analysis list.
