36 Kibra DDR Protocol Analyzer User Manual

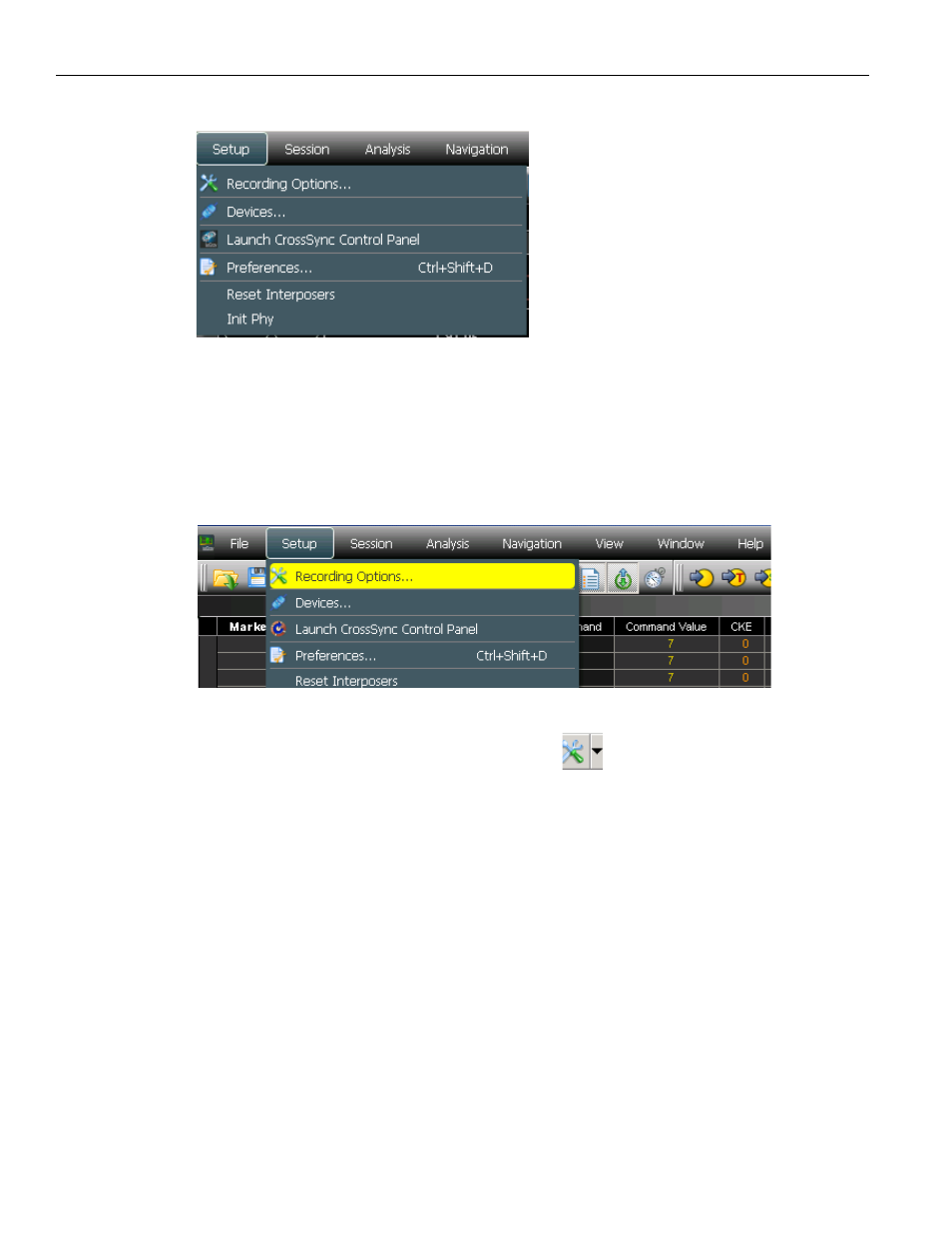

Figure 2.4: Setup Menu Option
2.6 Recording Options Setup
The Recording Options menu enables you to select the device. Click Setup > Recording
Options > and select the product (see Figure 2.5). In the following example the ‘LeCroy
Kibra DDR Analyzer SN:63373 is selected.
Figure 2.5: Recording Options Menu
You can also click on the Recording Options icon on the top menu bar.
The Recording Options Dialog has three tabs. The General tab enables you to set the
general recording configurations. The Basic Settings tab displays the Memory Controller
settings, Capture settings and the Timing and Protocol Violation Trigger values. The third
tab, Advance Triggers allows to set the Command Trigger, Command Filter‐Out and Read/
Write Trigger (see
Figure 2.6 on page 37 ).
