Kibra DDR Protocol Analyzer User Manual 83
Reset Interposers Teledyne LeCroy
2.10 Reset Interposers
Click Setup and select Reset Interposers only when needed in an exceptional situation.

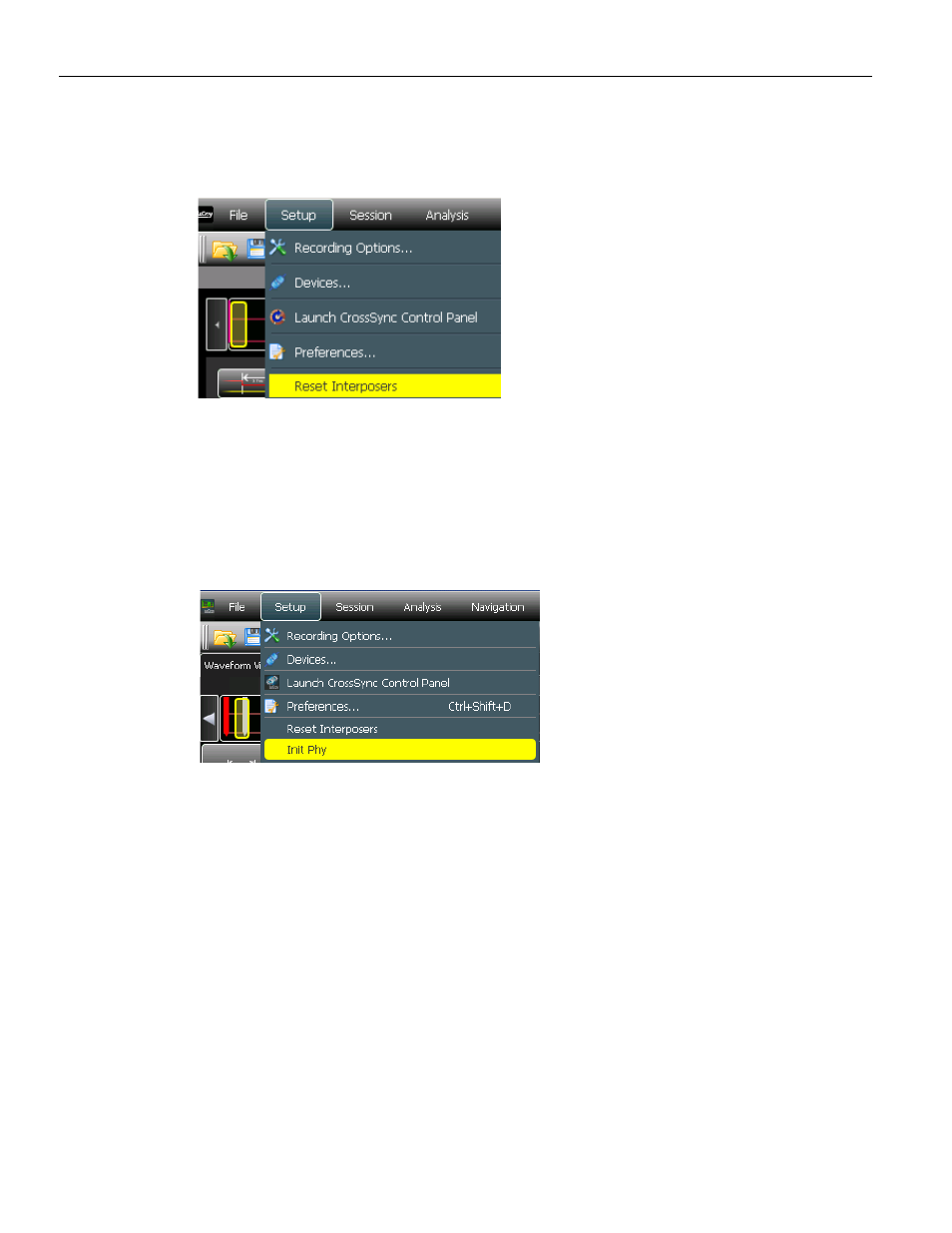

Figure 2.53: Reset Interposers Menu Option
2.11 Init Phy
Click Setup and select Init Phy. This causes the hardware on the interposer, as well as on
the probe front end of the analyzer, to be reset in proper sequence.
This should not be necessary during normal operation of the Analyzer
Figure 2.54: Reset Interposers Menu Option
2.12 Session
The Session menu options allows you to start, stop or abort a capture (see Figure 2.55 on
page 84 ). You can also manually trigger by selecting Manual Trigger. The Session menu
has the following capture options:
 Start Recording ‐ starts a trace capture
 Stop Recording ‐ stops a trace capture
 Abort Recording ‐ stops recording without any upload or trace file creation
 Manual Trigger ‐ initiates a trigger
 Repeat Upload ‐ enables you to select the analyzer to repeat the upload
