82 Kibra DDR Protocol Analyzer User Manual
2.9.8 RTS View
The RTS View tab allows you to set the foreground and background colors, display grid
lines, etc., for the RTS View displayed in the application (see
Figure 2.51 on page 81 .)
Choosing various colors allows for easier distinction of information in the view.
The colors can be set for each of the following elements of the view:
 General
 Select Interval by clicking the up/down arrows.
 Check or un‐check Auto scroll.
 Check or un‐check Sync Graphs.
 Color Select
 The Read color can be selected.
 The Write color can be selected.
 The Power Down color can be selected.
 The Self Refresh color can be selected.

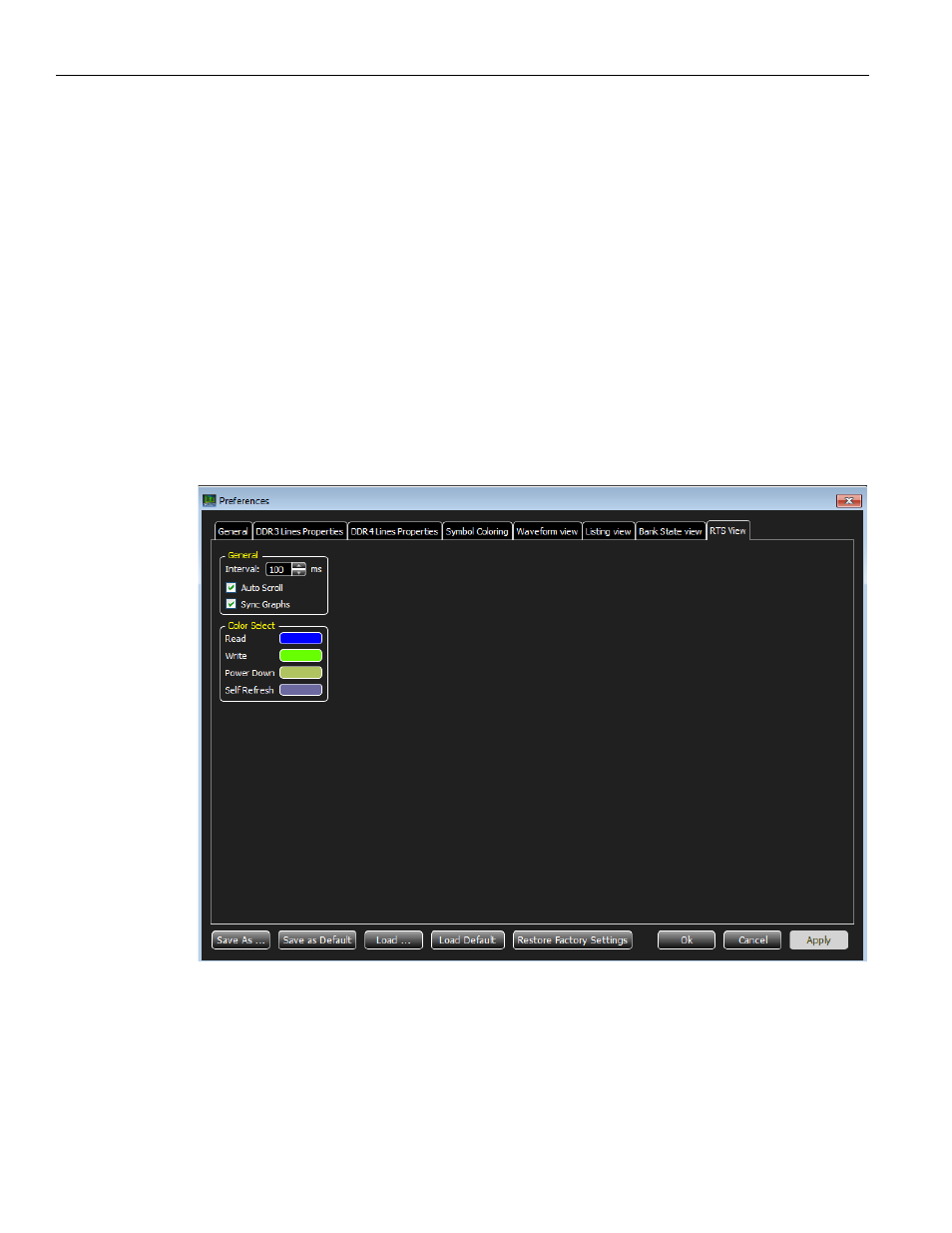

Figure 2.52: RTS View Dialog
