Delete This Marker
Removes a selected marker.
Delete Marker
Removes the selected marker.
Delete All Markers
Removes all markers.
Add Lines
Displays the Lines Selection dialog. Click on the checkbox to select the DDR Command
lines in the view.

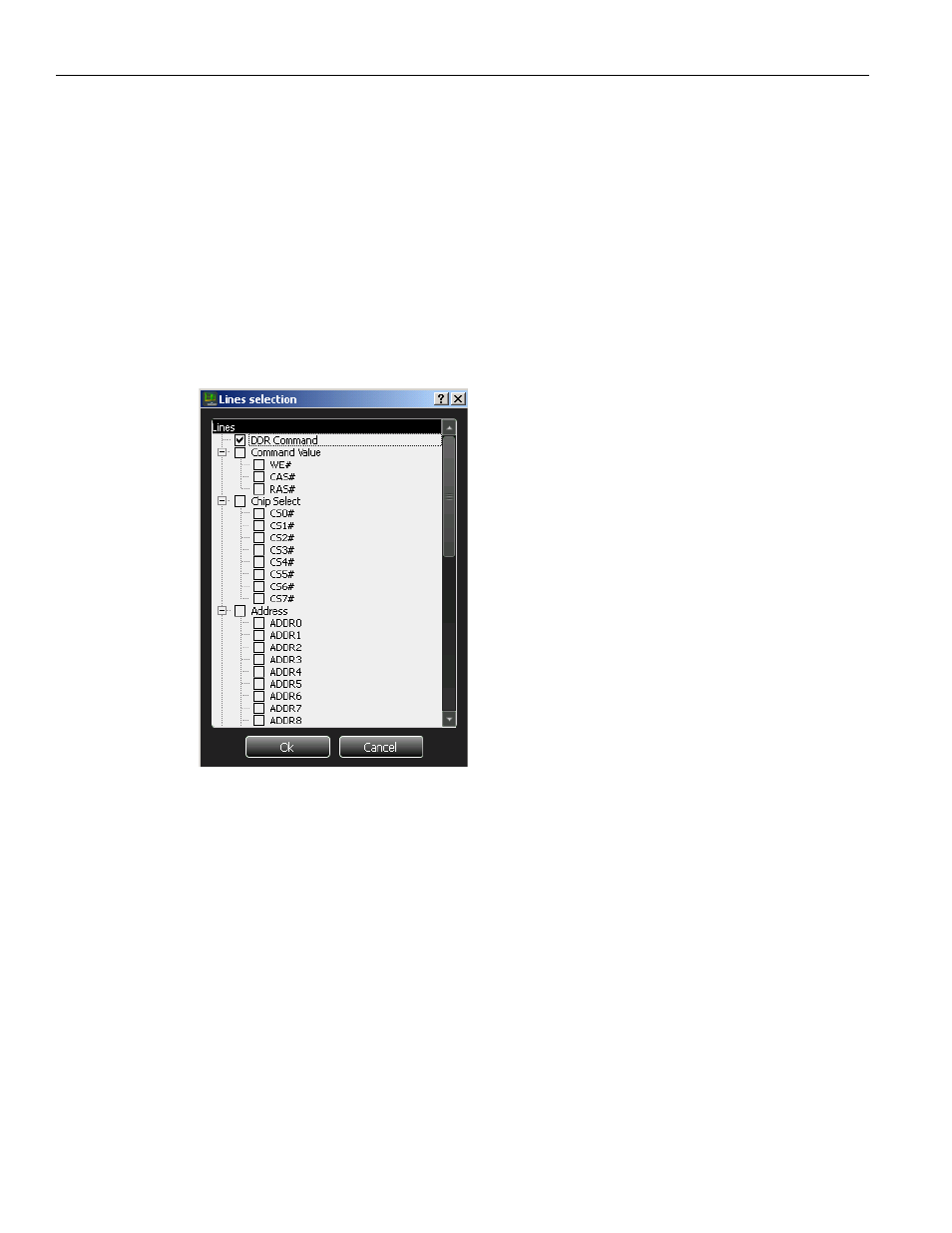

Figure 3.23: Lines Selection Dialog
Delete Line [Alert]
Removes lines where the cursor is located.
Show/Hide Sub Signals
It is often desired to show or hide specific signals in a signal group such as Address or Chip
Select. This feature allows you to select the ones to be shown or hidden when the signal
group is shown in its expanded form. Right‐click on Chip Select and select Show/Hide
Sub Signals (Chip Select) to display the Show/Hide Signals dialog (see
Figure 3.25 on
page 118 ).
You can also hide a signal by right clicking on its header and selecting Hide Sub Signal
[name] from the drop down context menu.
To display it again, select Show/Hide Sub Signals on the parent header for that group to
display the Show/Hide Signals dialog and select the signal.
