Kibra DDR Protocol Analyzer User Manual 145
Last MRS Values Teledyne LeCroy

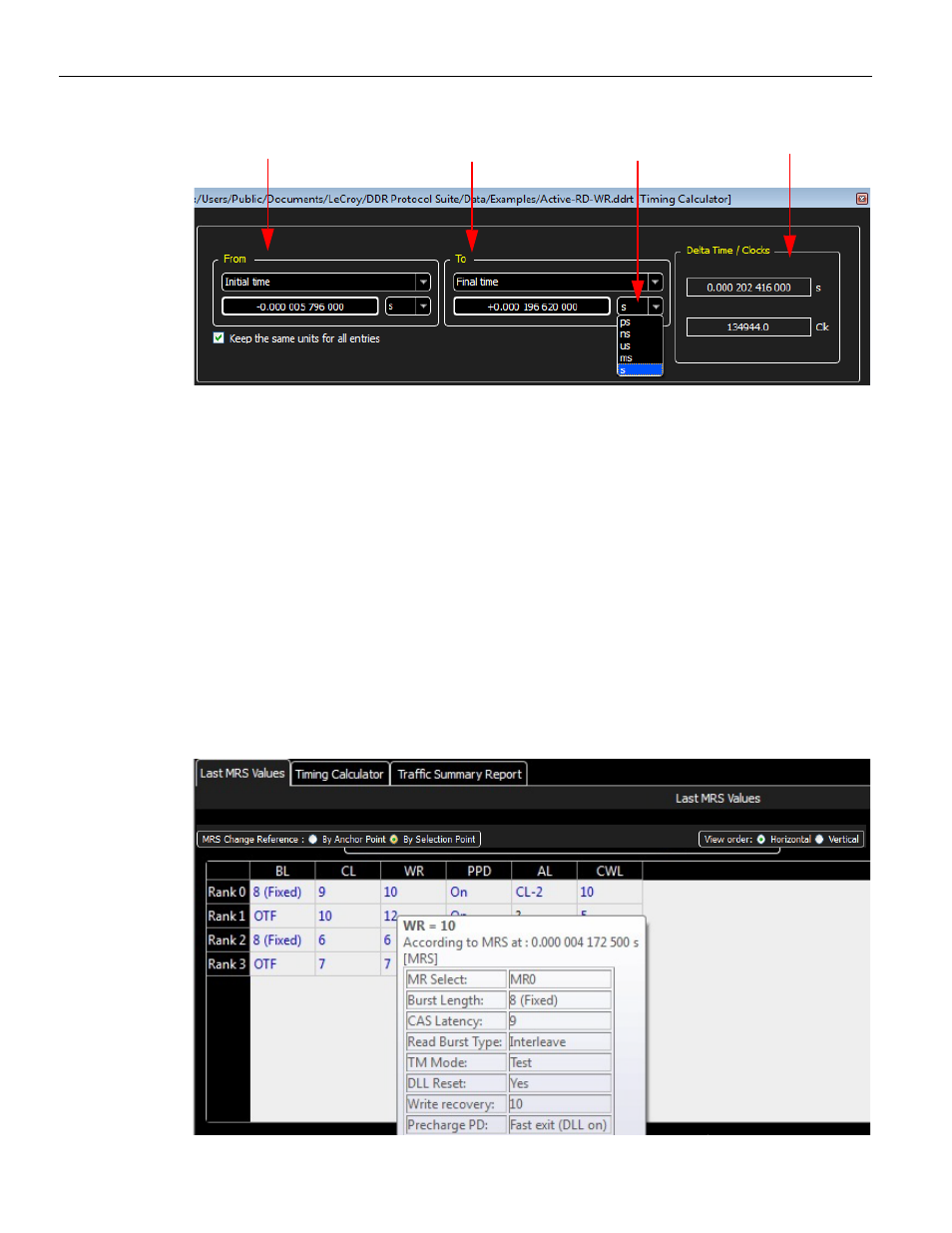

Figure 3.65: Timing Calculator View
As shown above the user can choose to enter the values in seconds, milliseconds,
microseconds, nanoseconds, or picoseconds.
3.8 Last MRS Values
The Last MRS Values View shows the last MRS setting in the trace. This view provides the
capability of viewing MRS values in any part of a trace in detail. Depending on the MRS
Change Reference settings (see
Figure 2.62 on page 89 ), the view values will be updated
either by scrolling in the view (By Anchor Point option) or by clicking on the trace and
selecting waveform"/"listing view" (By Selection point option). This view also provides the
view of the changing timing violations according to the last MRS values along with
detailed descriptions of how the value changed via the tooltip. Violations will show a
detailed formula describing how the calculation of those violations were determined.
Affected timing violations are highlighted in green.
Figure 3.66: Last MRS Values View
From Field
Delta Time/Clocks
To Field Unit Selector
