Kibra DDR Protocol Analyzer User Manual 105
Waveform View Teledyne LeCroy

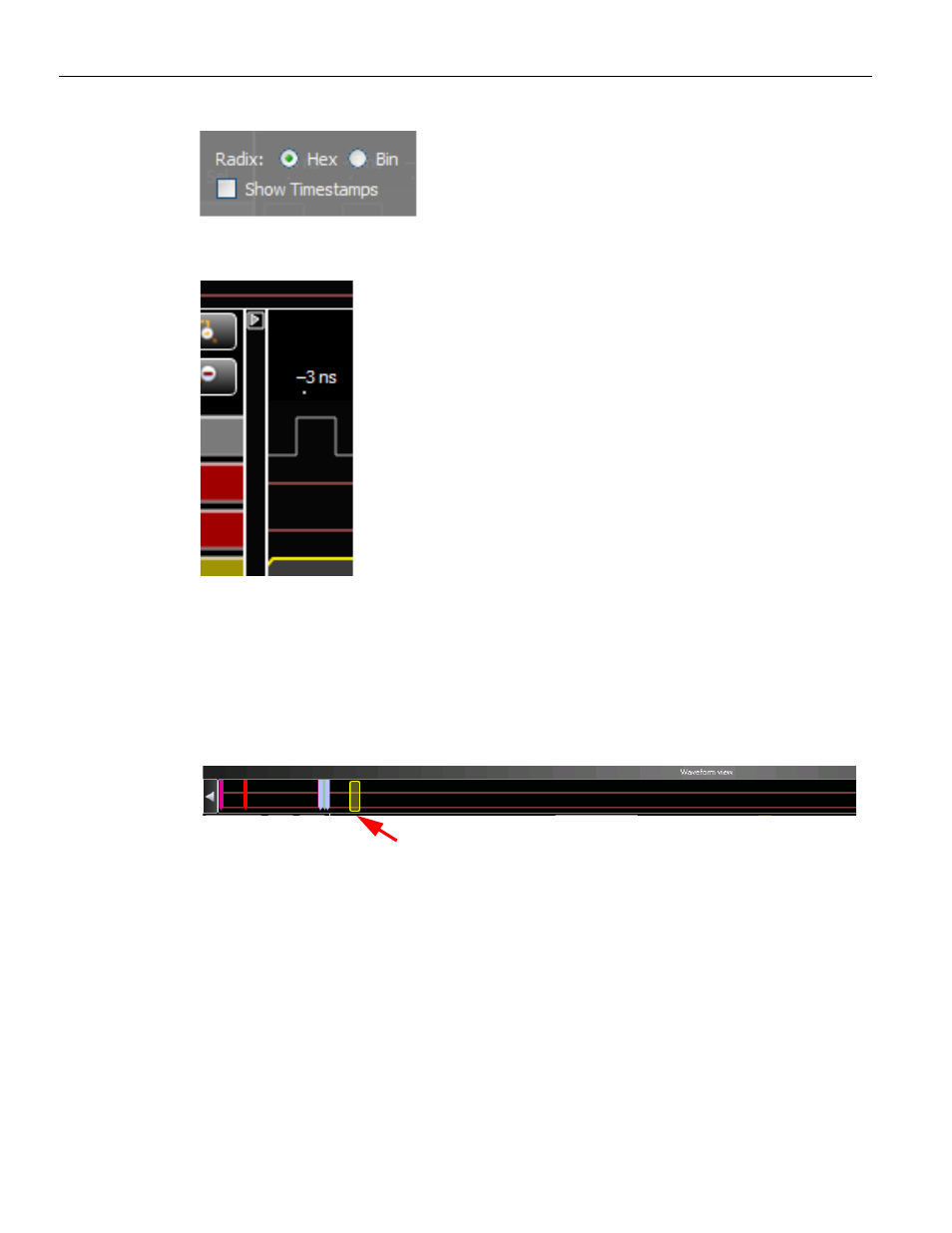

Figure 3.3: Display Format
Figure 3.4: Data View Collapsed
3.2.3 Viewport Slider in Navigation Bar
The Viewport Slider in the Navigation Bar enables moving across the view, see Figure 3.37
on page 129 . It displays a full trace in the window as you slide the bar across the bar. You
can zoom in and out by selecting one end of the bar and dragging it in either direction.
Figure 3.5: Viewport Slider
For more information on the Viewport Slider and Navigation Bar refer to “Viewport
Slider/Navigation Bar” on page 129 .
