60
/
3.
Operation

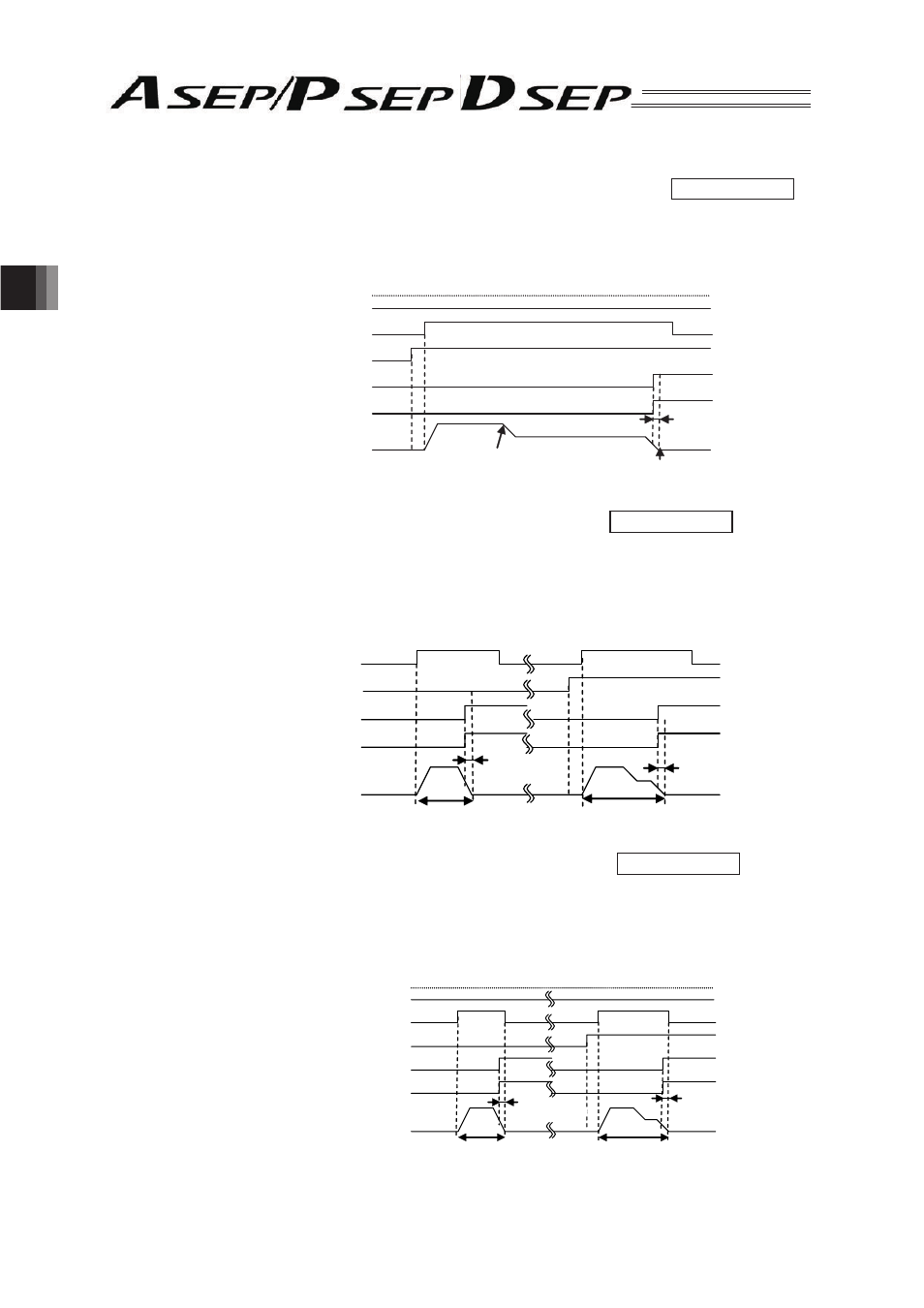

[6] Speed Change during the Movement (For Double Solenoid System) ••• PIO Pattern 1
The movement speed is changed during the actuator’s movement to the target position. When
the movement command is issued with SPDC turned ON, the actuator is moved at the changed
VSHHGVSHFL¿HGXVLQJWKH6SHHG&KDQJHIXQFWLRQIURPWKHSRVLWLRQVHWIRUWKHVSHHGFKDQJHLQWKH
SRVLWLRQVHWWLQJRSHUDWLRQ7KHIROORZLQJ¿JXUHVKRZVDQH[DPSOHRIIRUZDUGSRVLWLRQPRYHPHQW
Position Set as the Change Position
Positioning Band
(Parameter No. 1)
Forward Position
[7] Target Position Change (For Single Solenoid System) ••• PIO Pattern 2
When the operation is to be performed with the two types of works set differently each other, the
setting change is easy by means only of sending a single signal from PLC. When the movement
command is issued after CN1 is turned ON, the actuator is moved using the Position Setting 3,
in the case of moving to the forward position. In the case of moving to the backward position, the
3RVLWLRQ6HWWLQJLVXVHG7KHIROORZLQJ¿JXUHVKRZVDQH[DPSOHRIIRUZDUGSRVLWLRQPRYHPHQW
Positioning Band
(Parameter No. 1)
Position Setting 1 Position Setting 3
Positioning Band
(Parameter No. 1) Positioning Band
(Parameter No. 1)
[8] Target Position Change (For Double Solenoid System) ••• PIO Pattern 2
When the operation is to be performed with the two types of works set differently each other, the
setting change is easy by means only of sending a single signal from PLC. When the movement
command is issued after CN1 is turned ON, the actuator is moved using the Position Setting 3, in the
case of moving to the forward position. In the case of moving to the backward position, the Position
6HWWLQJLVXVHG7KHIROORZLQJ¿JXUHVKRZVDQH[DPSOHRIIRUZDUGSRVLWLRQPRYHPHQW
Positioning Band
(Parameter No. 1)
Position Setting 1 Position Setting 3
Positioning Band
(Parameter No. 1) Positioning Band
(Parameter No. 1)
Backward Position Movement Signal (ST0)
Forward Position Movement Signal (ST1)
Movement Speed Change Signal (SPDC)
Forward Position Detection Output (LS1)
Forward Positioning Completion Output (PE1)
Actuator Operation
Movement Signal (ST0)
Target Position Change Signal (CN1)
Forward Position Detection Output (LS1)
Forward Positioning Completion Output (PE1)
Actuator Operation
Backward Position Movement Signal (ST0)
Forward Position Movement Signal (ST1)
Target Position Change Signal (CN1)
Forward Position Detection Output (LS1)
Forward Positioning Completion Output (PE1)
Actuator Operation
