30
/
2.
Wiring
2.2 PIO Pattern Selection and PIO Signal

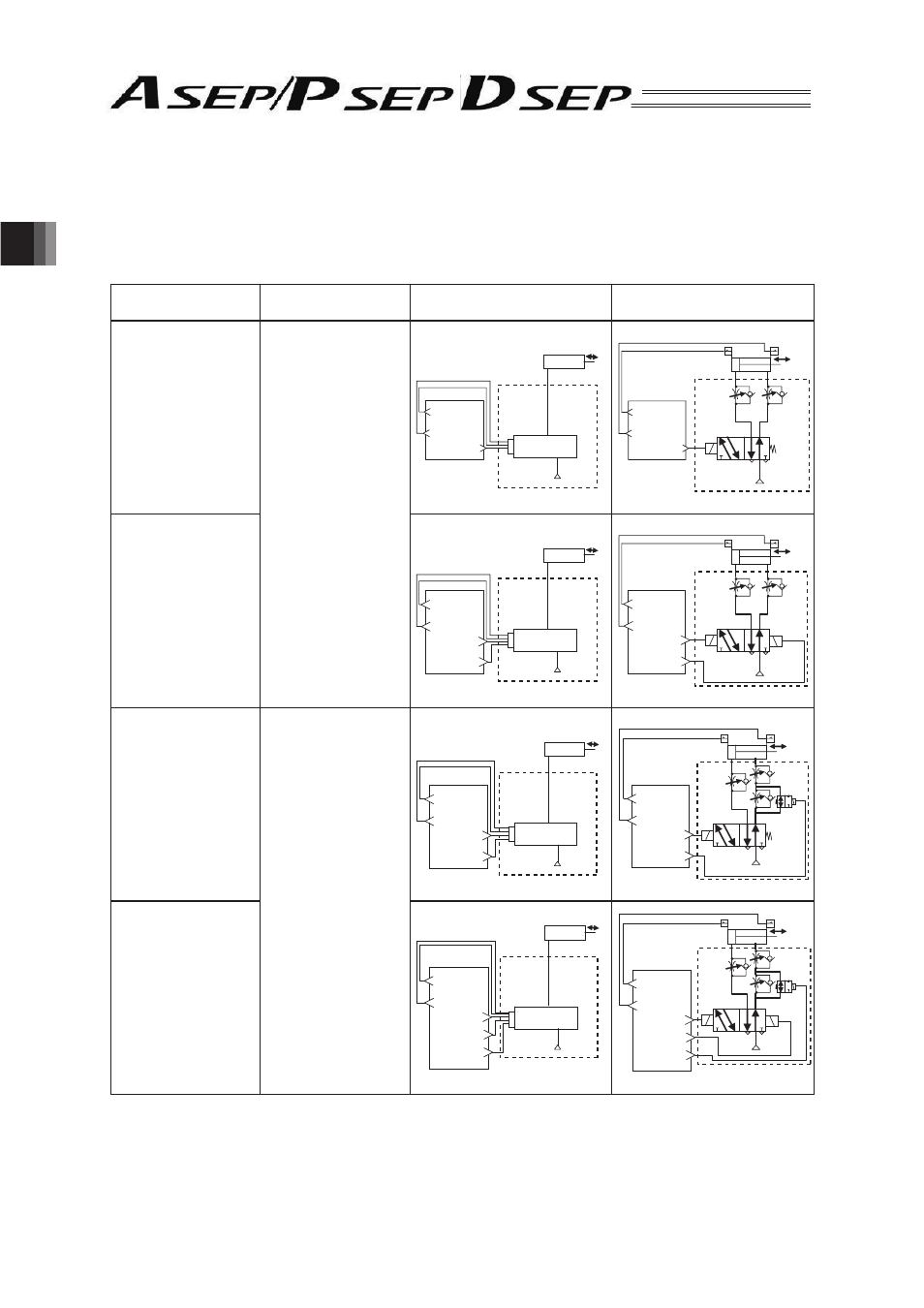

(1) Operation Pattern
The 6 operation patterns (For PIO Pattern). Each of these 6 patterns is described as in the table. Also,
the corresponding air cylinder circuit is described for reference.
Operation Pattern Contents
Example for Electric Cylinder
Connection
Example for Air Cylinder
Connection (Reference)
PIO Pattern 0
Single Solenoid System
(Standard Point-to-Point
Movement)
The actuator point-
to-point movement is
available using the same
control function as for
the air cylinder.
The target position
setting (forward position
and backward position)
is available.
Speed and acceleration
settings in the actuator
movement are available.
The pressing operation
is available.
PLC
+24V
ASEP,
PSEP,
DSEP
Electric Cylinder
Dedicated
Cable
Movement Signal
(ST0)
Backward
Position Detection
(LS0)
Forward
Position Detection
(LS1)
R2 R1
B A
Spring
Solenoid
Air Cylinder
PLC
Movement Signal
(ST0)
P(Air)
Forward
Position Detection
(LS1)
Backward
Position Detection
(LS0)
PIO Pattern 0
Double Solenoid System
(Standard Point-to-Point
Movement)
+24V
ASEP,
PSEP,
DSEP
Electric Cylinder
Dedicated
Cable
PLC
Backward Position
Movement Signal
(ST0)
Forward Position
Movement Signal
(ST1)
Backward
Position Detection
(LS0)
Forward
Position Detection
(LS1)
R2 R1
B A Solenoid
Solenoid
Air Cylinder
PLC
P(Air)
Movement Signal
(ST0)
Forward Position
Movement Signal
(ST1)
Backward
Position Detection
(LS0)
Forward
Position Detection
(LS1)
PIO Pattern 1
Single Solenoid System
(Point-to-Point Movement)
(Movement Speed Setting) The actuator point-
to-point movement is
available using the same
control function as for
the air cylinder.
The speed change in the
movement operation is
available.
The target position
setting (forward position
and backward position)
is available.
Speed and acceleration
settings in the actuator
movement are available.
The pressing operation
is available.
+24V
ASEP,
PSEP,
DSEP
Electric Cylinder
Dedicated
Cable
PLC
Movement Signal
(ST0)
Movement Speed
Change Signal
(SPDC)
Backward
Position Detection
(LS0)
Forward
Position Detection
(LS1)
Spring
R2 R1
B A Solenoid
Air Cylinder
PLC
P(Air)
Movement Signal
(ST0)
Movement Speed
Change Signal
(SPDC)
Backward
Position Detection
(LS0)
Forward
Position Detection
(LS1)
PIO Pattern 1
Double Solenoid System
(Point-to-Point Movement)
(Movement Speed Setting)
+24V
ASEP,
PSEP,
DSEP
Electric Cylinder
Dedicated
Cable
PLC
Backward Position
Movement Signal
(ST0)
Forward Position
Movement Signal
(ST1)
Movement Speed
Change Signal
(SPDC)
Backward
Position Detection
(LS0)
Forward
Position Detection
(LS1)
R2 R1
B A Solenoid
Solenoid
Air Cylinder
PLC
P(Air)
Backward Position
Movement Signal
(ST0)
Forward Position
Movement Signal
(ST1)
Movement Speed
Change Signal
(SPDC)
Backward
Position Detection
(LS0)
Forward
Position Detection
(LS1)
