46
/
2.
Wiring

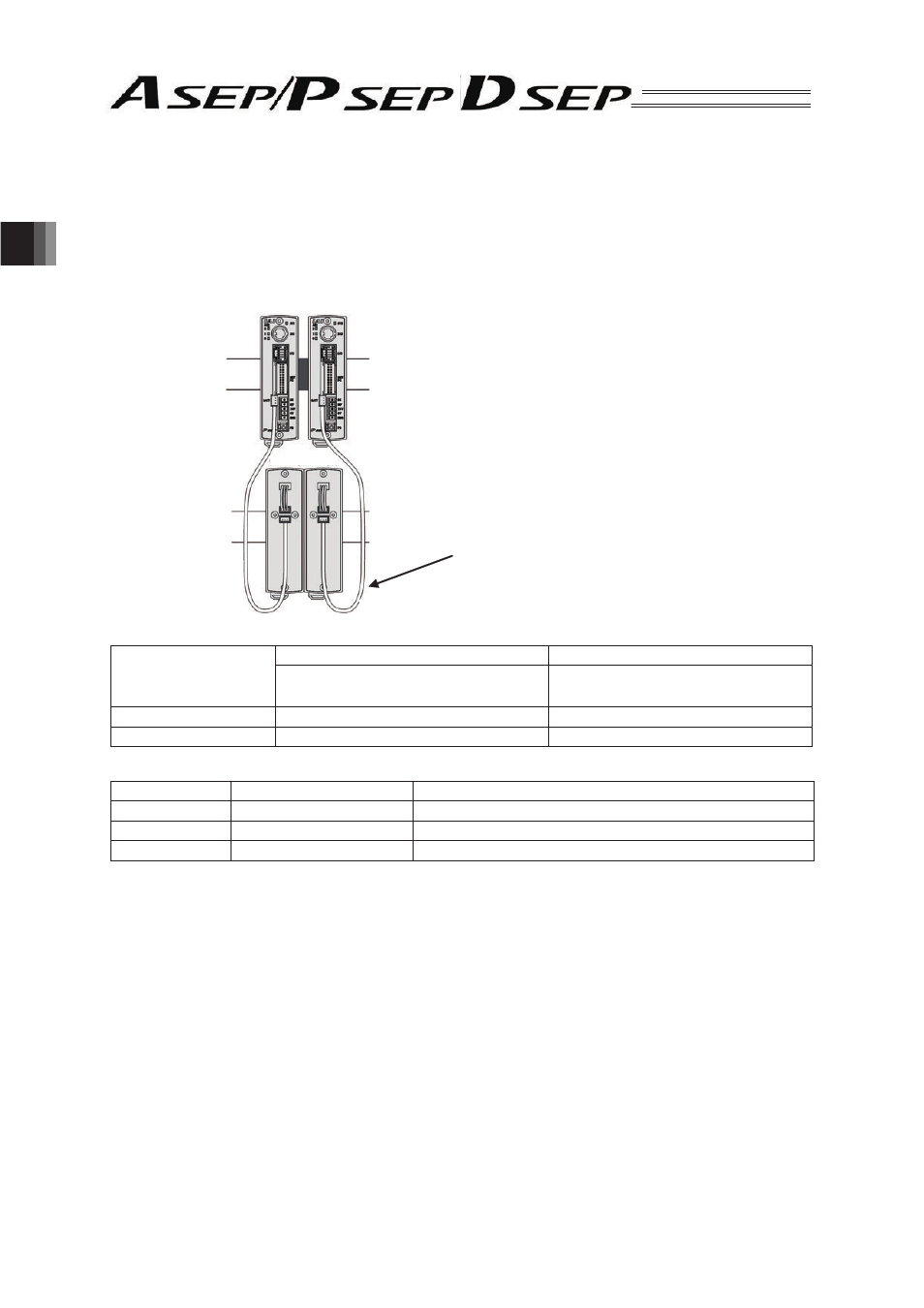

2.4.6 Battery Connector Connection (For Simple Absolute Type)
The absolute battery unit is to be connected to the battery connector.
Connect the dedicated cable enclosed with the absolute battery unit.
Connection Cable between Controller and Absolute Battery : CB-APSEP-AB005
$SSOLFDEOH&RQWUROOHU
$6(3ƑƑƑ$%80
36(3ƑƑƑ$%80
(Absolute Battery Unit)
Connection Cable [Refer to 1.10.9]
(Absolute Battery Unit Accessories)
Ɣ Battery Connector
Applicable Connector 53015-0310 (Model: ABUM, ABUNM) Manufactured by Molex
S3B-PH-K-S (LF) (SN)
(Model: ABU, ABUN)
0DQXIDFWXUHGE\-67
Connector Name BATT Battery Connector
Connection Cable Dedicated Cable Enclosed in the absolute battery unit
Pin No. Signal Name Contents
1 BT Negative Side of Battery Power Supply
2 GND Positive Side of Battery Power Supply
3 BTMP For Battery Temperature Detection
