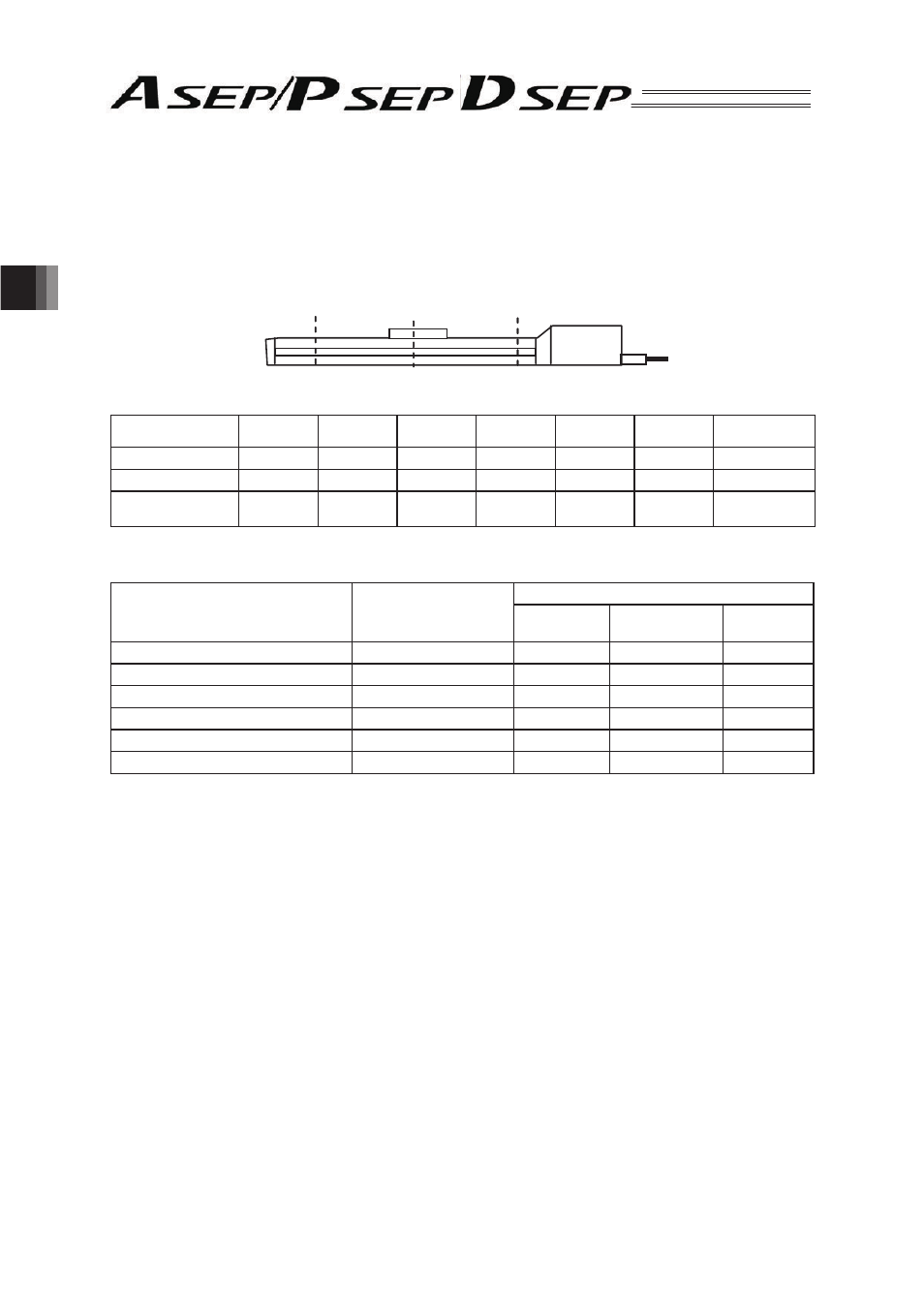

3.1.2 Position Data Setting
Set the following items in the position data editing window of the PC software menu or by selecting
“Position Setting” in the Touch Panel Teaching menu. [Refer to the PC Software or Touch Panel
Teaching Instruction Manual for the details]
Backward
Position
Intermediate
Position
Forward
Position
Motor
Actuator
Position Data
Position Data 1) Position 2) Velocity 3) Acceleration 4) Deceleration
5) Pressing
Force
6) Pressing
Band
7) Energy-Saving
Function
Forward Position 200.00 50.00 0.1 0.1 70 1.00 Effective
Backward Position 0.00 50.00 0.1 0.1 0 0 Effective
Intermediate
Position
100.00 50.00 0.1 0.1 0 0 Effective
1) Position … Set the position where the actuator is moved.
Setting Range : 0 to Actuator Stroke Range (Unit 0.01mm)
Operation Pattern Name
: PIO Pattern No.
Displacement
Set Position
Forward
Position
Backward
Position
Intermediate
Position
Standard Point-to-Point Movement :0 Point-to-Point Movement ż ż
Movement Speed Setting :1 Point-to-Point Movement ż ż
Target Position Setting Change :2 Point-to-Point Movement ż ż
2-Input, 3-Point Movement :3 3-Point Movement ż ż ż
3-Input, 4-Point Movement :4 3-Point Movement ż ż ż
Continuous Reciprocating Operation :5 Point-to-Point Movement ż ż
2) Velocity … Set the actuator speed.
[Refer to Appendix in this manual or the Instruction Manual for the actuator.]
Setting Range : Actuator’s min. speed to Actuator’s max. speed
(Unit: 0.01mm/sec)
3) Acceleration … Set the actuator acceleration.
[Refer to Appendix in this manual or the Instruction Manual for the actuator.]
Setting Range : 0.01 to Actuator’s rated Value Range (Unit: 0.1G)
4) Deceleration … Set the actuator deceleration.
[Refer to Appendix in this manual or the Instruction Manual for the actuator.]
Setting Range : 0.01 to Actuator’s rated Value Range (Unit: 0.1G)
