20
/
6SHFL¿FDWLRQV&KHFN
1.1.3 Instruction manuals related to this product, which are contained in the
instruction manual (CD/DVD).
No Name Manual No.
1 ASEP/PSEP/DSEP Instruction Manual ME0267
2 PC Software RCM-101-MW/RCM-101-USB Instruction Manual ME0155
3 Touch Panel Teaching CON-PTA/PDA/PGA Instruction Manual ME0294
4
Teaching Pendant dedicated for SEP Controller (Touch Panel Teaching)
Instruction Manual
ME0217

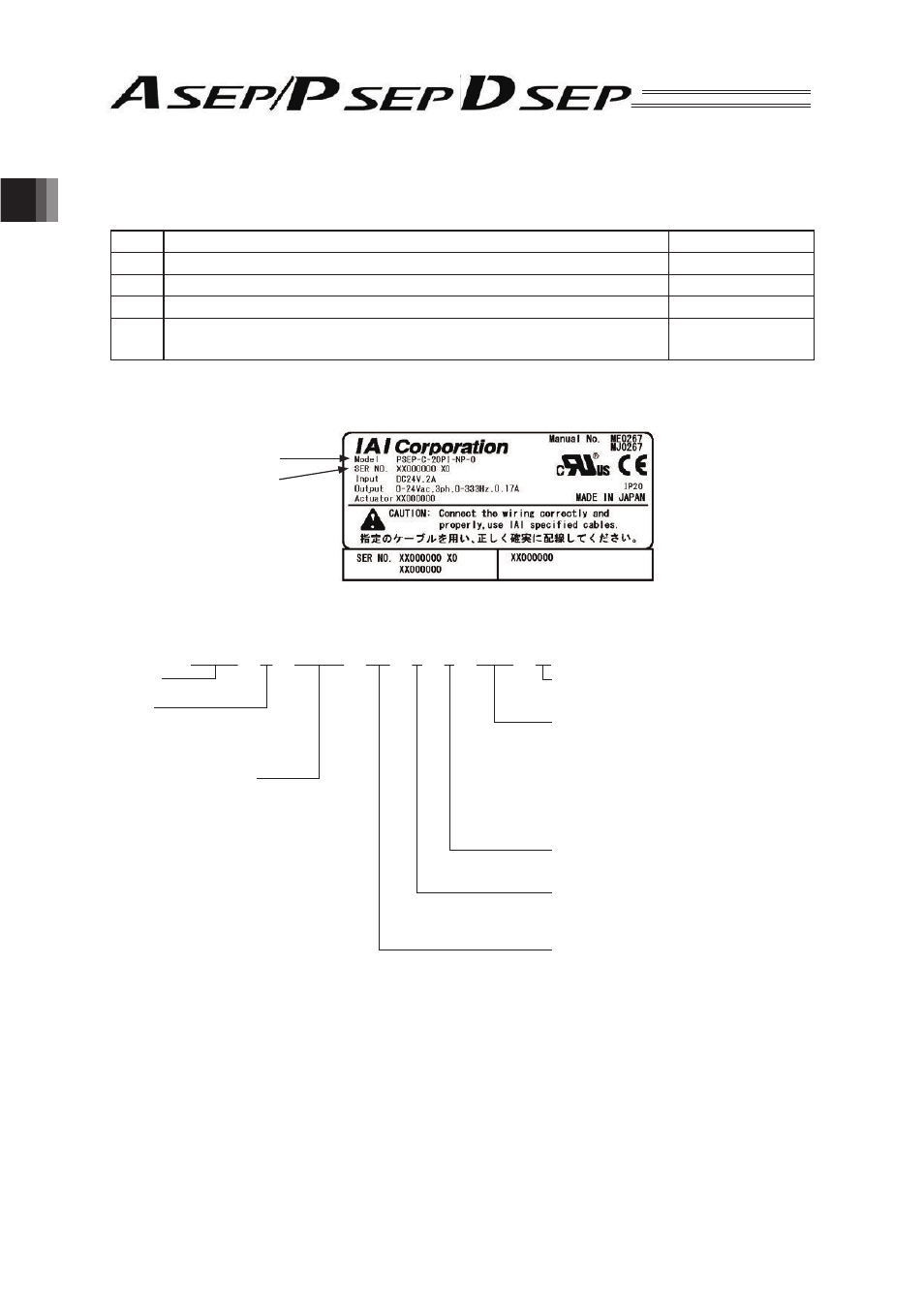

1.1.4 How to read the model plate
Model
Serial number
1.1.5 How to read the model of the controller
[Motor Type]
* There is no identification in some cases.
ABU
ABUN
No description
(Note) ABU and ABUN are the already existing
models, which do not comply with UL.
0 : 24V DC
0 : No Cable 3 : 3m
2 : 2m 5 : 5m
NP : NPN Specification
(Sync. Type) (Standard)
PN : PNP Specification
(Source Type)
: Simple Absolute Type
(with the Absolute Battery Unit)
: Simple Absolute Type
(with no Absolute Battery Unit)
: Incremental Type
2W
5W
10W
20W :
:
:
: 20W
)RU5&$5Ƒ65$5&$6$7$
30W :
:
20S
30
[Encoder Type]
I : Incremental
[Option]
LA : Power Consumption Type
HA : High Acceleration/Deceleration Type
2
5
10
20
[ A S E P ]
C : Standard type
CW : Dust-proof type
(Equivalent to IP53)
A S E P – C – 2 0 I L A – N P – 0 – 0 – A B U – * *
