31
/
2.
Wiring

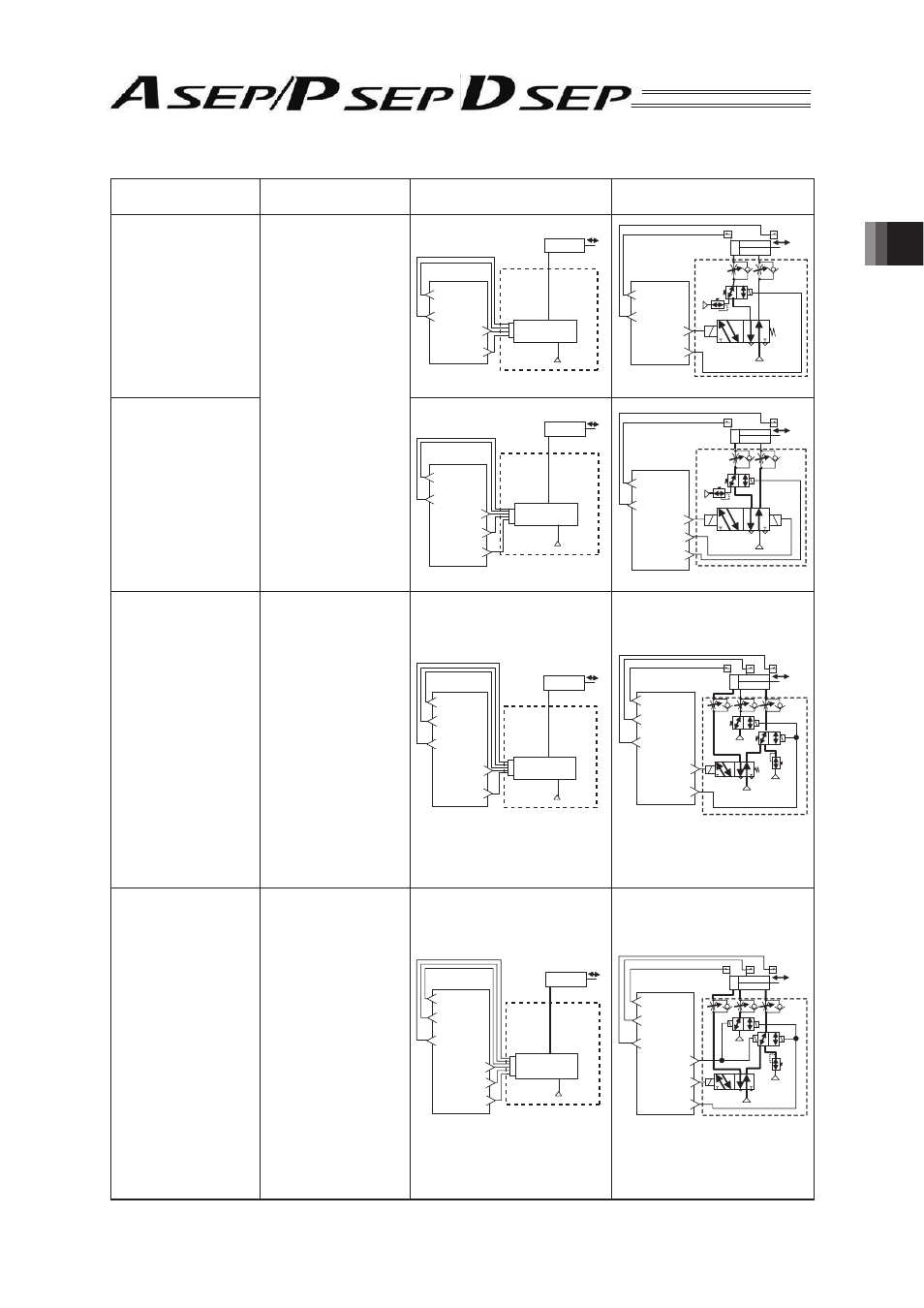

Operation Pattern Contents
Example for Electric Cylinder
Connection
Example for Air Cylinder
Connection (Reference)
Single Solenoid System
(Point-to-Point Movement)
(Target Position Setting
(Position Data) Change)
The actuator point-
to-point movement is
available using the same
control function as for
the air cylinder.
The change-over
between the positioning
and pressing operations
during the operation is
available.
The target position
setting (forward position
and backward position)
is available.
Speed and acceleration
settings in the actuator
movement are available.
The pressing operation
is available.
+24V
ASEP,
PSEP,
DSEP
Electric Cylinder
Dedicated
Cable
PLC
Movement Signal
(ST0)
Target Position
Change Signal
(CN1)
Backward
Position Detection
(LS0)
Forward
Position Detection
(LS1)
R2 R1
B A
Air Cylinder
PLC
P(Air)
P(Air)
Movement Signal
(ST0)
Target Position
Change Signal
(CN1)
Backward
Position Detection
(LS0)
Forward
Position Detection
(LS1)
PIO Pattern 2
Double Solenoid System
(Point-to-Point Movement)
(Target Position Setting
(Position Data) Change)
+24V
ASEP,
PSEP,
DSEP
Electric Cylinder
Dedicated
Cable
PLC
Backward Position
Movement Signal
(ST0)
Forward Position
Movement Signal
(ST1 )
Target Position
Change Signal
(CN1)
Backward
Position Detection
(LS0)
Forward
Position Detection
(LS1)
R2 R1
B A
Air Cylinder
PLC
P(Air)
P(Air)
Backward Position
Movement Signal
(ST0)
Forward Position
Movement Signal
(ST1 )
Target Position
Change Signal
(CN1)
Backward
Position Detection
(LS0)
Forward
Position Detection
(LS1)
PIO Pattern 3
(2-Input, 3-Point
Movement)
The actuator 3-Point
Movement is available
using the same control
function as for the air
cylinder.
The target position
setting (forward position,
backward position and
intermediate position) is
available.
Speed and acceleration
settings in the actuator
movement are available.
The pressing operation at
the positions except for
the intermediate position
is abailable.
+24V
ASEP,
PSEP,
DSEP
Electric Cylinder
Dedicated
Cable
PLC
Movement
Signal 1
(ST0)
Movement
Signal 2
(ST1 )
Backward
Position Detection
(LS0)
Forward
Position Detection
(LS1)
Intermediate
Position Detection
(LS2)
Air Cylinder PLC
P(Air)
P(Air)
P(Air)
Movement
Signal 1
(ST0)
Movement
Signal 2
(ST1 )
Backward
Position Detection
(LS0)
Forward
Position Detection
(LS1)
Intermediate
Position Detection
(LS2)
PIO Pattern 4
(3-Input, 3-Point
Movement)
The actuator 3-Point
Movement is available
using the same control
function as for the air
cylinder.
The target position
setting (forward position,
backward position and
intermediate position) is
available.
Speed and acceleration
settings in the actuator
movement are available.
The pressing operation
at the positions except
for the intermediate
position is abailable.
+24V
ASEP,
PSEP,
DSEP
Dedicated
Cable
PLC
Electric Cylinder
Intermediate Position
Movement Signal
(ST2)
Backward Position
Movement Signal
(ST0)
Forward Position
Movement Signal
(ST1)
Backward
Position Detection
(LS0)
Forward
Position Detection
(LS1)
Intermediate
Position Detection
(LS2)
Air Cylinder PLC
P(Air)
P(Air)
P(Air)
Intermediate Position
Movement Signal
(ST2)
Backward Position
Movement Signal
(ST0)
Forward Position
Movement Signal
(ST1)
Backward
Position Detection
(LS0)
Forward
Position Detection
(LS1)
Intermediate
Position Detection
(LS2)
