14
/
1) Battery Connector (It is not equipped for Incremental Type and DSEP)
If Absolute Type actuator, it is the battery connector for absolute data retention.
2) LED for ABS (It is not equipped for Incremental Type and DSEP)
Following shows the absolute data retention battery status:
Signal Indication Status Description
2
Green Light is turned ON. System Normal
Red Light is turned ON. System abnormality
1
Green Light is turned ON Absolute Unit Reset Complete (ST2 lighting ON in Green)
Red Light is turned ON.
• Absolute Unit Reset Incomplete (ST2 lighting ON in Green)
• Hardware Error (ST2 lighting ON in Red)
0
Green Light is turned ON Battery Fully Charged
Orange Light is turned ON. In Battery Charging Operation
Red Light is turned ON. Battery Disconnected

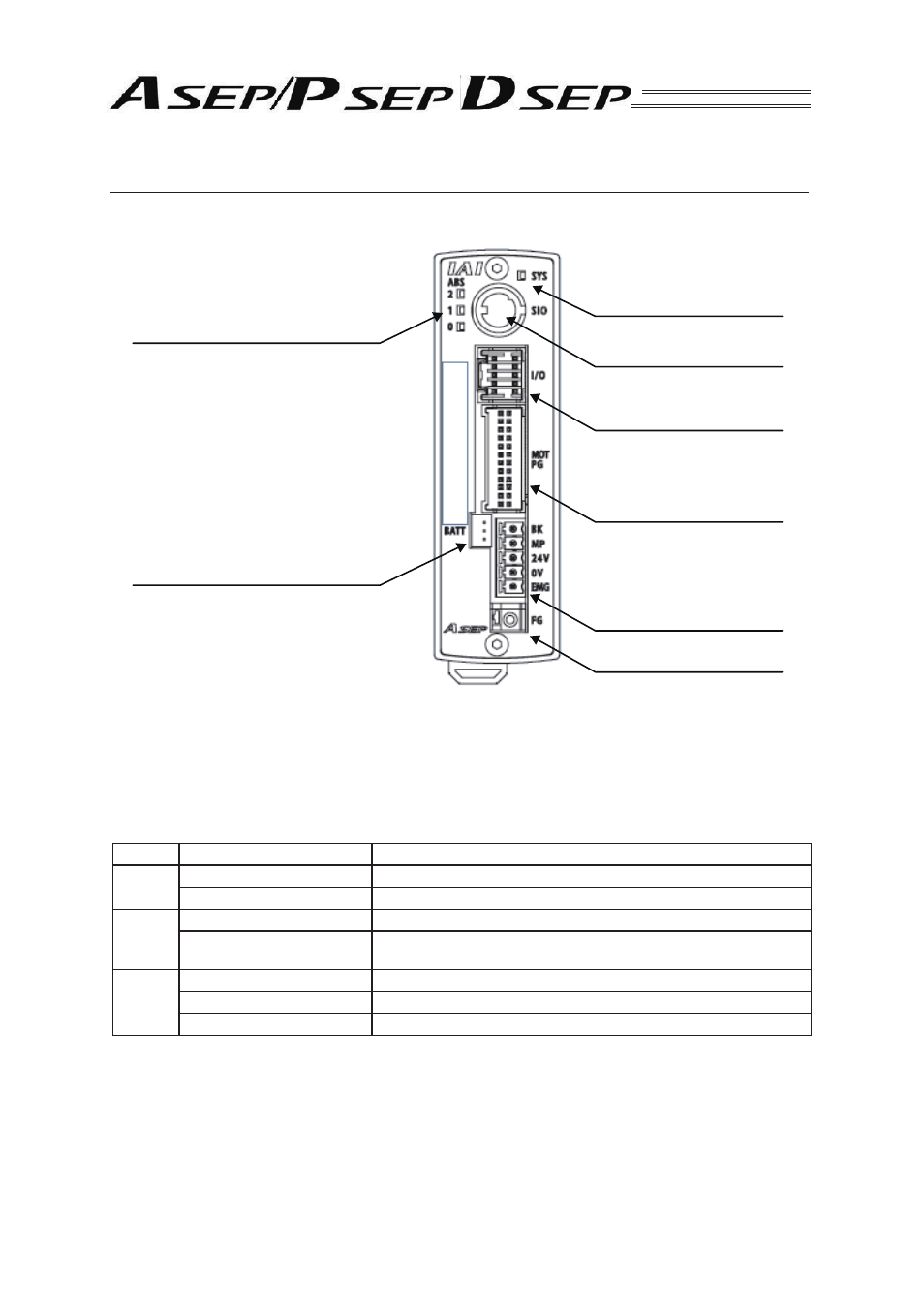

Name for Each Parts and Their Functions
Pictures show ASEP, It should be the same for PSEP and DSEP.
1) Battery Connector
(It is not equipped
for Incremental Type and DSEP)
2) LED for ABS
(It is not equipped
for Incremental Type and DSEP)
3) StatusLED
(for SV, ALM and EMG)
4) SIO Connector
5) PIO Connector
6) Motor · Encoder
Connector
7) Power Supply
Connector
8) FG Terminal Block
