Page Number - 22

Form 822378

DOMESTIC CAR & LIGHT
TRUCK WHEEL LUG NUT
SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Domestic Cars

Chrysler Motors & Ford Motor Co.
FWD Models

90-100 (122-136)

RWD Models

85-95 (115-129)

General Motors Corp.
Aluminum Wheels

90-100 (122-136)

Steel Wheels

80-90 (109-122)

Domestic Trucks

Jeep

75-85 (1 02-115)

All Others
1/2” Stud

85-95 (115-129)

9/16” Stud

130-145 (177-197)

5/8” Stud

190-200 (258-272)

IMPORT CAR & LIGHT
TRUCK WHEEL LUG NUT
SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Acura & Honda

80 (109)

Audi & BMW

80 (109)

Infiniti & Nissan

72-87 (98-118)

Lexus & Toyota

76 (103)

Mercedes-Benz

190, 300D, 300E, 400E,
500E, C220, C280, E320,
E420 & E500

80 (109)

300SD, 300SE, 400SEL,
500SEL S320, S350,
S420 & S500

111 (150)

Peugeot

Aluminum Wheels

55 (75)

Steel Wheels

45 (61)

Porsche

94 (128)

Volkswagen

Vanagon

123 (167)

All Others

72-95 (98-129)

Volvo

700/900 Series

63 (85)

All Others

80 (109)

All Others

Aluminum Wheels

70-90

Steel Wheels

55-65 (75-88)

LAWN MOWER
APPLICATIONS

1. Priming circuit of the Lawn Boy

and similar engines.

a. Connect pump to the hose

and bulb assembly as shown
in Fig. 17.

b. Seal off vent hole in primer

bulb (if present) with finger
as shown in Fig. 17. Draw a
vacuum on the primer and
hose. The bulb should
collapse and hold a vacuum
until finger is released.

2. Carburator Float Needle and Seat

Assembly.

a. Use dual converter pump and put

selector on pressure.

b. Connect the pump to the fuel inlet.
c. Pressurize to 7 psi minimum.
d. Must hold 7 psi with carburator

inverted as shown on Fig. 18.

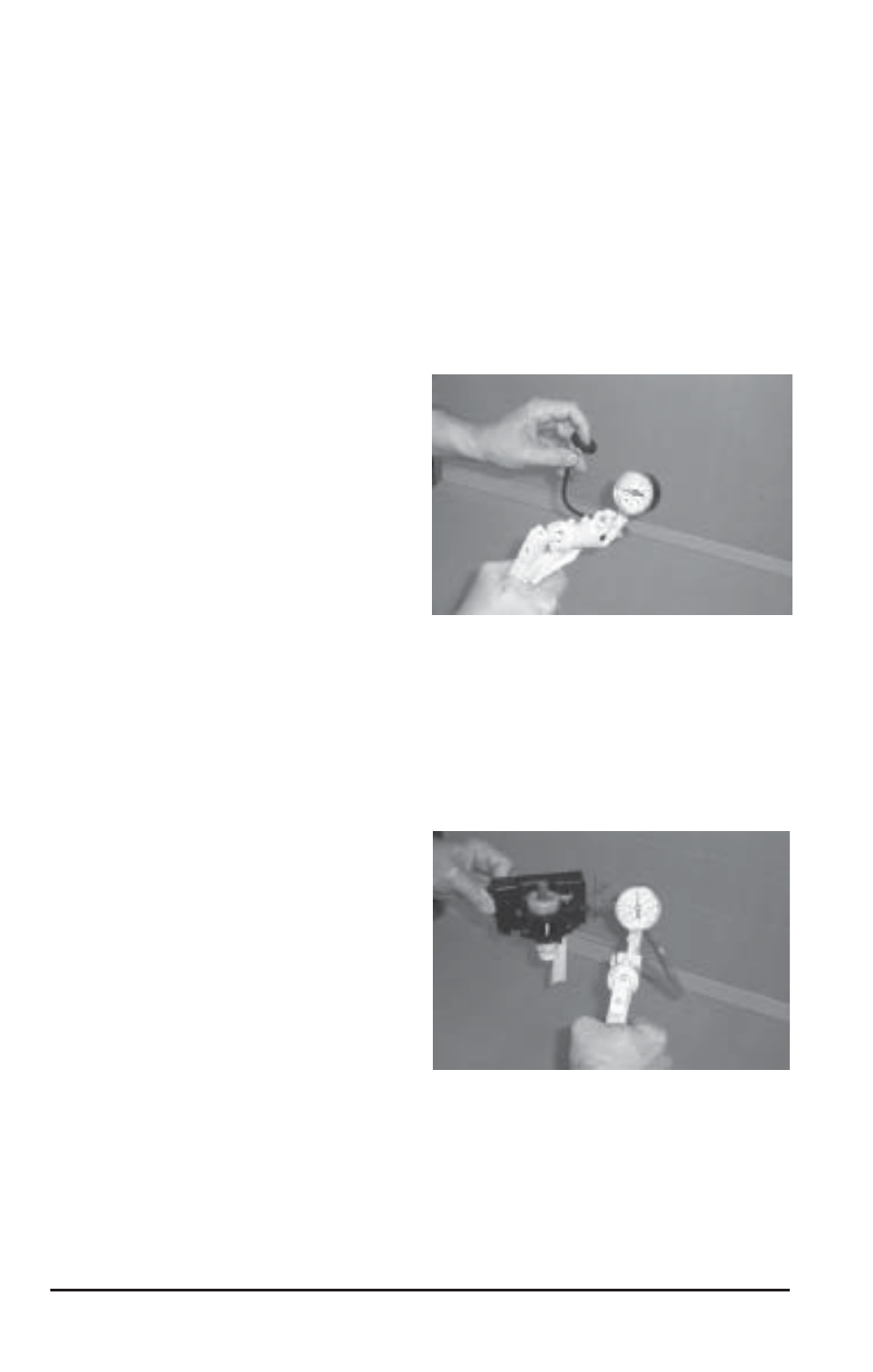

Figure 17

Figure 18
