TRANSMISSION REFILL KIT
Models: MVA7210, MVA7212, MVA7214, MVA7216©
Page Section
- MV96 - 1B
Form 824688
Application Precautions
This equipment is intended for use by vehicle service
professionals with experience and knowledge of its application
and limitations. While it is designed for servicing a variety of
vehicles in a safe and convenient manner, due to variations
between vehicle manufacturers, makes, models and years,
use of this equipment is not always feasible, possible, or
recommended.
Use common sense when operating this equipment. If
something does not seem or feel right, stop immediately and
consult a professional with knowledge of the application. Don’t
force the use of this equipment on an application for which it is
not intended.
The procedures documented in this manual are to serve as
guidelines for general use of this equipment. In addition to
these guidelines, always follow the vehicle manufacturer’s
recommended procedures when attempting to use this
equipment.
Read and understand the instructions for this and all
referenced equipment prior to use.
Always were safety glasses when using this equipment
Instructions for Use
1. Fill the evacuator with as much transmission fluid as
required to fill or top-off the transmission. This can be
accomplished by removing the plug from the pour spout in
the reservoir lid and pouring the fluid in, or by sucking it in
using the evacuation procedure.
Note: Always refer to the vehicle manufacturer’s
specification for the type of transmission fluid to
use.
2. Install and lock the plug in the evacuator pour spout,
and shift the valve on the side of the evacuator to the
DISPENSE position.
3. Insert the transmission refill assembly tube into the 10
mm x 90° pressure/vacuum port located on the top of the
fluid evacuator. Push the tube into the connector until it is
firmly seated and secured by the locking sleeve.
4. Select the appropriate transmission refill adapter for the
model of vehicle.
If the refill adapter does not require installation onto
the transmission, connect it to the female quick-change
coupler at the end of the transmission refill tube.
If the refill adapter requires installation onto the
transmission, follow the vehicle manufacturer’s procedure
to do so. Once the adapter is connected to the
transmission, connect the transmission refill tube using the
female quick-change coupler.
5. Open the shut-off valve on the transmission refill
assembly.
6. Pump the evacuator to build pressure and start the flow of
fluid to the transmission.
7. Follow the vehicle manufacturer’s recommended
procedure to fill or top-off the transmission to the correct
level, and then close the shut-off valve.
8. Disconnect the refill tube from the adapter by pulling back
on the sleeve of the female quick-connect coupler.
Note: A shut-off valve in the female quick-change coupler
will prevent fluid from leaking out of the refill tube
when the adapter is disconnected.
9. Remove the refill adapter from the transmission, and
replace any plugs or caps.
10. Empty and clean the evacuator and refill assembly if
necessary and/or store it appropriately for further use.

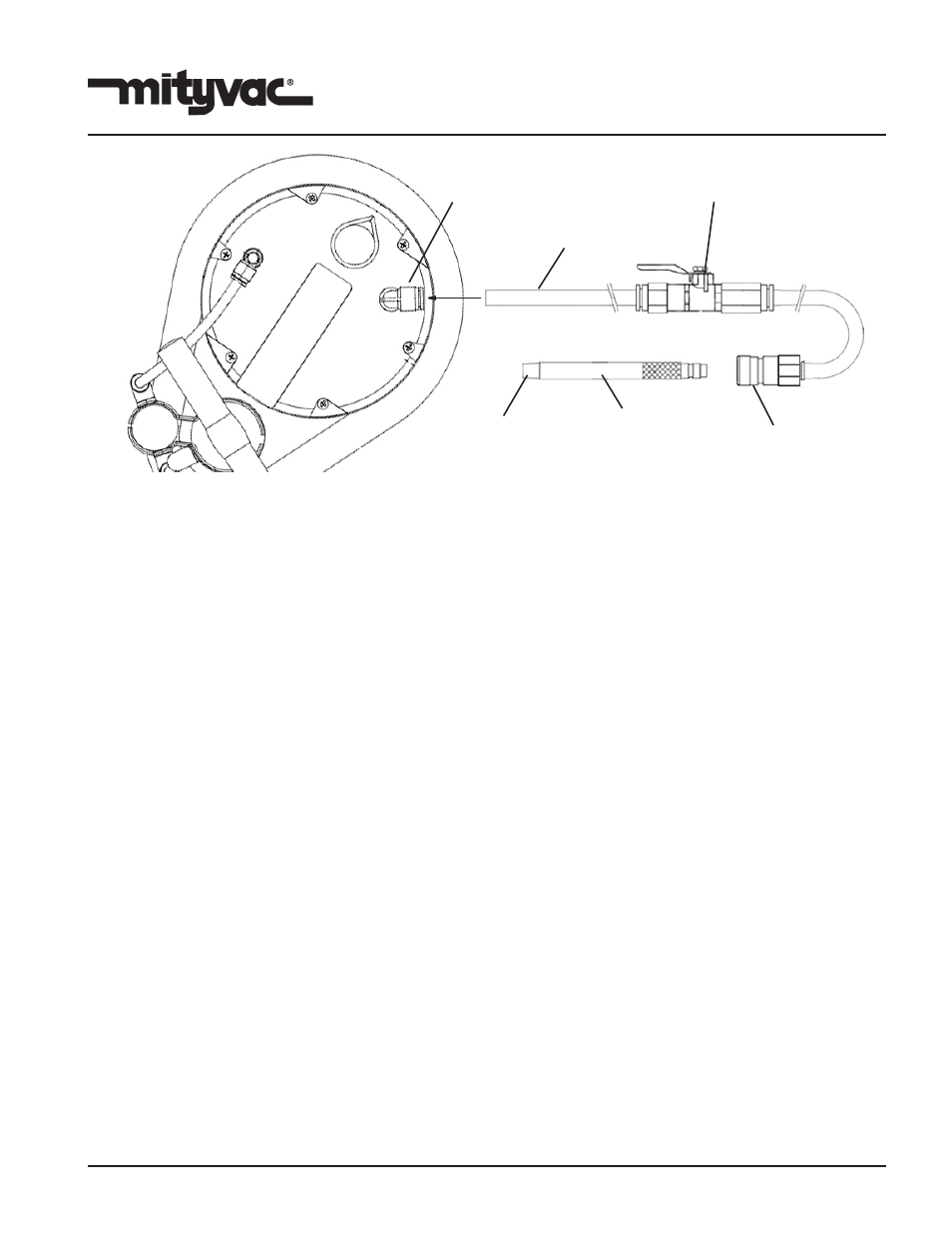

MV7201 Evacuator Top View
Evacuator Vacuum/
Pressure Port
Shut Off Valve
To vehicle
transmission
Refill Adapter
(reference) Female QC
Coupler
MVA7210©
© Indicates change
