62

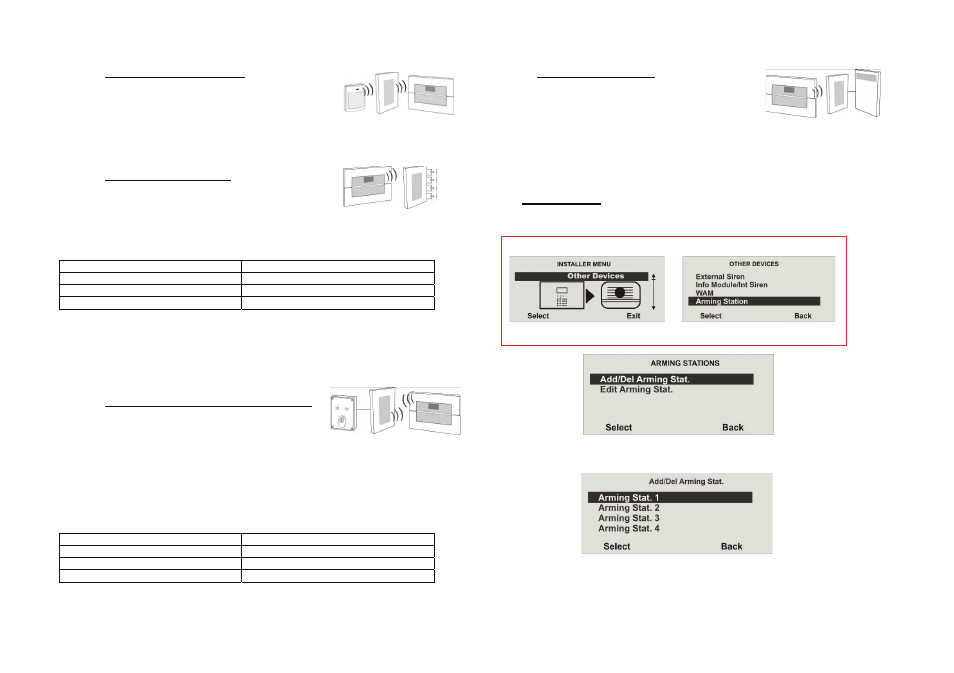

15.3.1 WAM as wireless repeater
WAM function 1
If the accessory module is trained with the wireless repeater function, then the wireless
repeaters whose signals are to be transmitted via this module must also be trained to
the WAM. Consult the WAM operating instructions for more information.
15.3.2 WAM as output module
WAM function 2
If the W AM is trained with the output function, the alarm centre automatically reserves
the respective outputs for this module in the alarm centre.
Outputs 31 – 34 for WAM 1 Outputs 15 – 18 for WAM 5
Outputs 27 – 30 for WAM 2 Outputs 11 – 14 for WAM 6
Outputs 23 – 26 for WAM 3 Outputs 07 – 10 for WAM 7
Outputs 19 – 22 for WAM 4 Outputs 03 – 06 for WAM 8
These outputs no longer have to be added manually. Make the settings for the output
functions as described in the Editing outputs section. Outputs reserved by the W AM
are described as shown in the following diagram. These outputs must be configured,
but do not have to be added.
Consult the operating instructions of the WAM for more details.
15.3.3 WAM as wireless transmitter / receiver
WAM function 3
In the same way as the WAM as output module, the WAM as transmitter / receiver
technology module also occupies the 4 outputs. In addition to the outputs, one
wireless zone is reserved that corresponds to input 1. These must be configured at the
end according to the function connected in the WAM.
Consult the operating instructions of the WAM for more details.
The occupied wireless zone is displayed.
WAM 1 – Wireless zone 48 WAM 5 – Wireless zone 44
WAM 2 – Wireless zone 47 WAM 6 – Wireless zone 43
WAM 3 – Wireless zone 46 WAM 7 – Wireless zone 42
WAM 4 – Wireless zone 45 WAM 8 – Wireless zone 41
The second WAM input is used as a tamper line for the corresponding reserved
wireless zone.
15.3.4 WAM as siren module
WAM function 4
After configuring the WAM as a siren module, you will see a display in which you have
to define the partition where the siren is to be activated. This setting is made in the
same way as for the external sirens.
For details on the connection of compact alarm devices in the WAM, please consult
the accessory module operating manual.
15.4 Arming station
Up to four arming stations can be trained.
Select ADD/DEL Arming Stat..
Select the corresponding arming station.
In the installer menu:
Æ
Select the arming station
.
