35
8. Notes on the security system
High-frequency emission warning!
The limit value of the emitted high-frequency signals for these components is below
the European standard (considered as safe). Nonetheless, the device must be
attached so that potential contact with users during normal operation is kept to a
minimum. To keep signal emissions to a minimum, users must be more than 200 mm
away from the components during normal operation.

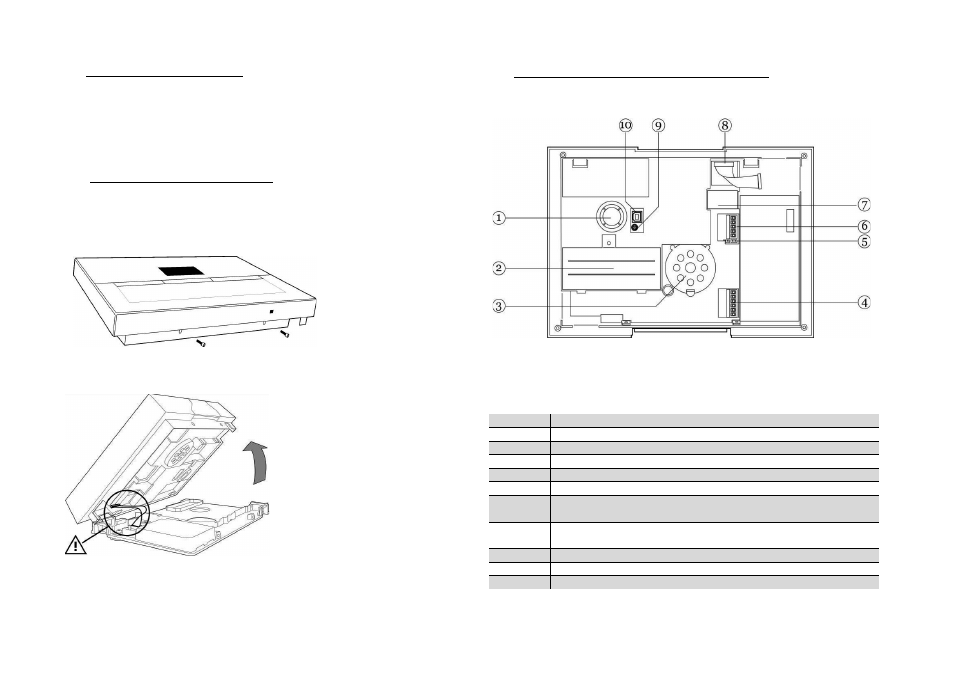

8.1 Opening the alarm centre housing
When installing the alarm centre, follow the sequence listed here.
Firstly, loosen the two housing screws on the bottom of the wireless alarm centre as
illustrated.
Open the top part (1) of the wireless alarm centre and detach the base plate (2) from
the rest of the system. Pay special attention to the cable connections.
8.2 Connections on the top part of the alarm centre
The following diagram shows the connections on the top part of the alarm centre.
Number Description
1 Internal siren
2 Battery compartment
3 Internal loudspeaker
4 Connection for the analogue telephone line (PSTN)
5 Kickstart and Codes Defaulted jumper (KS + RESET)
6 Connection for external loudspeaker and microphone
(separate device)
7 Connection for extension modules (ISDN / GSM / ethernet /
GPRS)
8 Connecting cable between base plate and top part
9 Loudspeaker volume control (S/W<5.01.10)
10 USB port
(1)
(2)
