Connect the other end of the USB cable to your PC or laptop. In the installer menu, go
to “Download” . In the “Download” menu, select “Connection Type”.

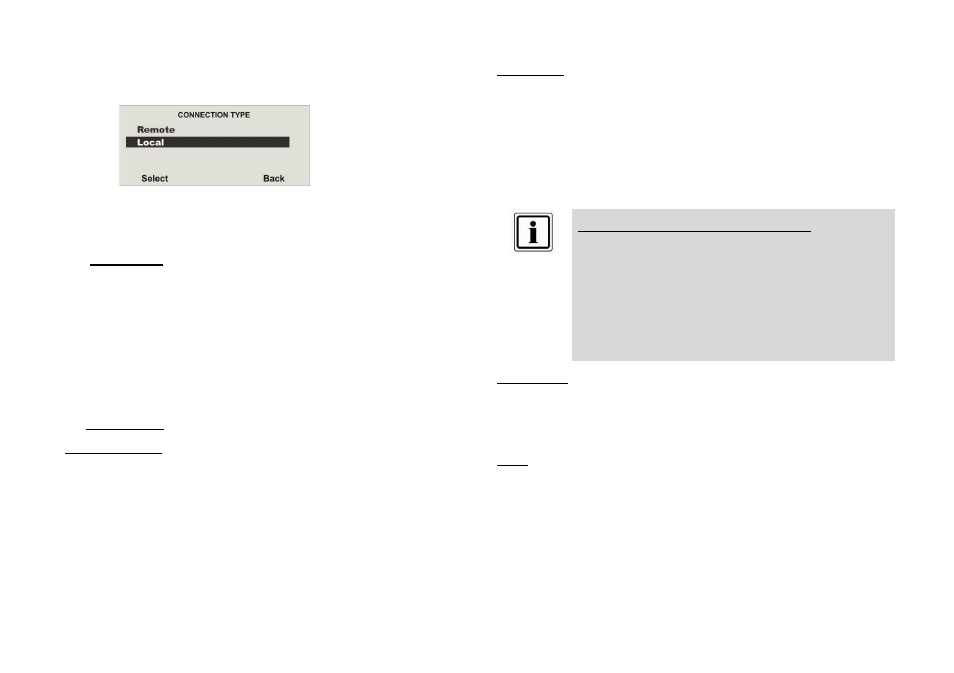

Select “Local” and press “Select” under the display.
During the initial connection, the alarm centre installs the USB drivers on your
computer. The connection is then established.
32.2 Programming
To program the system, install the downloader program from the software CD
supplied. The current version of this program can also be downloaded from the
Security Center website.
After installing and starting the downloader program, you are prompted to enter a
password. This is: security.
After entering the password, create a new customer. W hen a customer is created, a
serial number of the alarm centre must be entered. Enter any 8-digit number, e.g.
12345678.
Also note the connection settings. For the local connection setting via USB, COM 3 in
the software is usually chosen. For a brief description of the software, see the
Downloader CD provided.
33. Technical data
General information
Product name:
FU8006
Environmental protection: Class II
Operating temperature: Checked at -10 °C to 55 °C
Dimensions: 285 mm x 206 mm x 45 mm (W xHxD)
Weight: 1060 g (without batteries)
Housing material: ABS
Zones: 2 x wired, 48 x wireless
Outputs: 2 x wired, 32 x wireless
Internal clock: ±10 minutes over one year
(depends on the accuracy of the network
frequency)
Signaller: Internal piezo signaller, max. 97 dB(A) at 1 m
Power supply
The internal power supply meets the requirements of EN50131-6 Type A, Class 2 and
Environment Class 2.
Mains supply voltage: 230 V AC, 50/60 Hz +/-5%
Power consumption: 200 mA +10%/-15%
Emergency power supply: 6 x 1.2 V, 2000 mAh rechargeable batteries
NiMH AA
Standby time: More than 12 hours
Maximum recharging time: Less than 72 hours
Power supply monitoring: Power failure, battery empty, battery low
Fuse: 400 mA delay action (T400 mA)
Inputs/outputs
Wired outputs 1 and 2:
Disconnected, single pole relay contacts, max.
load 24 V DC, 1 A or 120 V AC, 0.5 A
Wired zones 33 and 34: DEOL
Wireless outputs: 32
Wireless inputs: 48
Safety
EMC immunity:
Corresponds to EN50130-4, EN50131-4
EMC emissions: Corresponds to EN61000-6-3
Electrical safety: EN60950-1:2002
Environmental compatibility: EN50130-5 Class 1, 93% ambient humidity
Security level: EN50131-1 Level 2
Encryption: 16.777.214 (2E24 – 2) variations
Wireless supervision: Programmable
Access code: 4-digit (0000-9999)
Each position can be a number between 0 and 9 = 10,000 code variations
Entry blocking:
90 seconds
After four incorrect code entry attempts (consecutive)
Alarm centre behaviour in the event of power failure
When deactivated, a message is shown in the alarm centre display
after a few minutes. Activation of the alarm centre is prevented. The
backlight of the display goes out. When the alarm centre is activated,
the backlight of the display goes out. The fault display is first shown
on deactivation. W hen “Contact ID Reports” or “SIA 1 Full” reports
are used for transmission, the power failure is transmitted using a
digital report. When the “Supply Fault” speech dialler function is
activated, the power failure is transmitted by voice message. A local
alarm is never made.
