50
PANIC
This zone always triggers an alarm, irrespective of whether the burglar alarm centre is
activated or deactivated. A panic alarm can also be transmitted silently (reporting). The
programming menu can only be exited when this zone is closed.
TECHNICAL
When deactivated, a technical zone triggers an alarm and reporting. When activated,
only reporting but no alarm is triggered. If an alarm occurs in this zone when activated,
then this is displayed when the alarm centre is deactivated. This zone type can be
used for water detectors.
Social care messages when communicating with ALARMS
xThe “QA” code in the SIA protocol in “Basic”, “Summary”, “Intermediate” and“Full”.
xThe “101” code in the Contact ID protocol.
KEY SW MOMENT
Train a key switch (pulse) to the wireless alarm centre. Any change to this zone
changes the state of the alarm centre from active to inactive or vice versa (following
the delay time).
KEY SW LATCHED
A key switch (permanent) can be connected to the burglar alarm centre. Any change to
this zone changes the state of the alarm centre from active to inactive or vice versa
(following the delay time). Please note that you can only operate the alarm centre via
the key switch. If the status is unclear (e.g. key switch closed and deactivated on the
control panel), then the alarm centre may return to active state.
KEY BOX
This zone is mainly used in Scandinavia. If this zone is opened, the trigger is stored in
the memory of the burglar alarm centre. The can also be transmitted via the telephone
dialler. No alarm is triggered.
If a zone of this type is necessary, the user connects the alarm wiring of this zone
(usually the auxiliary contact of a door) to an external key box and the tamper wiring to
the housing switch. If the housing is opened, the wireless centre saves the trigger and
notifies the alarm reception.
EXIT NORM ALM
A zone programmed as “Exit Norm Alm” behaves in a similar way to a “Normal” zone.
However, a zone of this type initiates an alarm when the detector is triggered during
the delay time.
PERIMETER WARNING
This zone triggers a pre-alarm, if the alarm system has been set or part set.
The control panel beeps twice every five seconds. "Perimeter Warn" appears on the
display every five seconds.
The wireless external sirens FU8220 and FU8250 flash and beep every five seconds
for approx. one second.
The info module FU8200 beeps once every second and the red alarm LED lights up.
The indoor siren FU8230 beeps once every second. It must however be supplied by a
power supply unit for this and the jumper "Alarm Only" must not be inserted.
(This sound is an "Info" sound, not an "Alarm" sound.)
The duration of all signals is 30 seconds.
An output of the "Perimeter Warn" type is enabled for 30 seconds.
Only the door chime sounds when the system is disabled, if configured.
13.9 Selecting partitions
The trained detectors are assigned to Partition 01 as standard.
To assign the detector to another partition, proceed as follows:

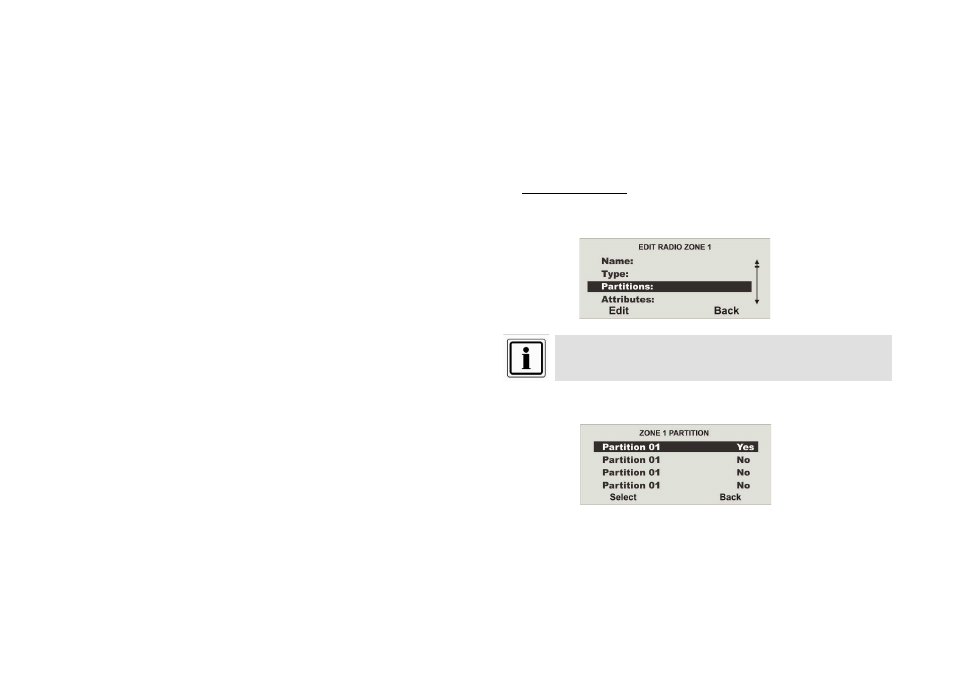

Select the Partitions menu item.
At least one partition must be marked with Yes.
Select the relevant partition in which this zone is to be monitored. Confirm by pressing
“Done”.
