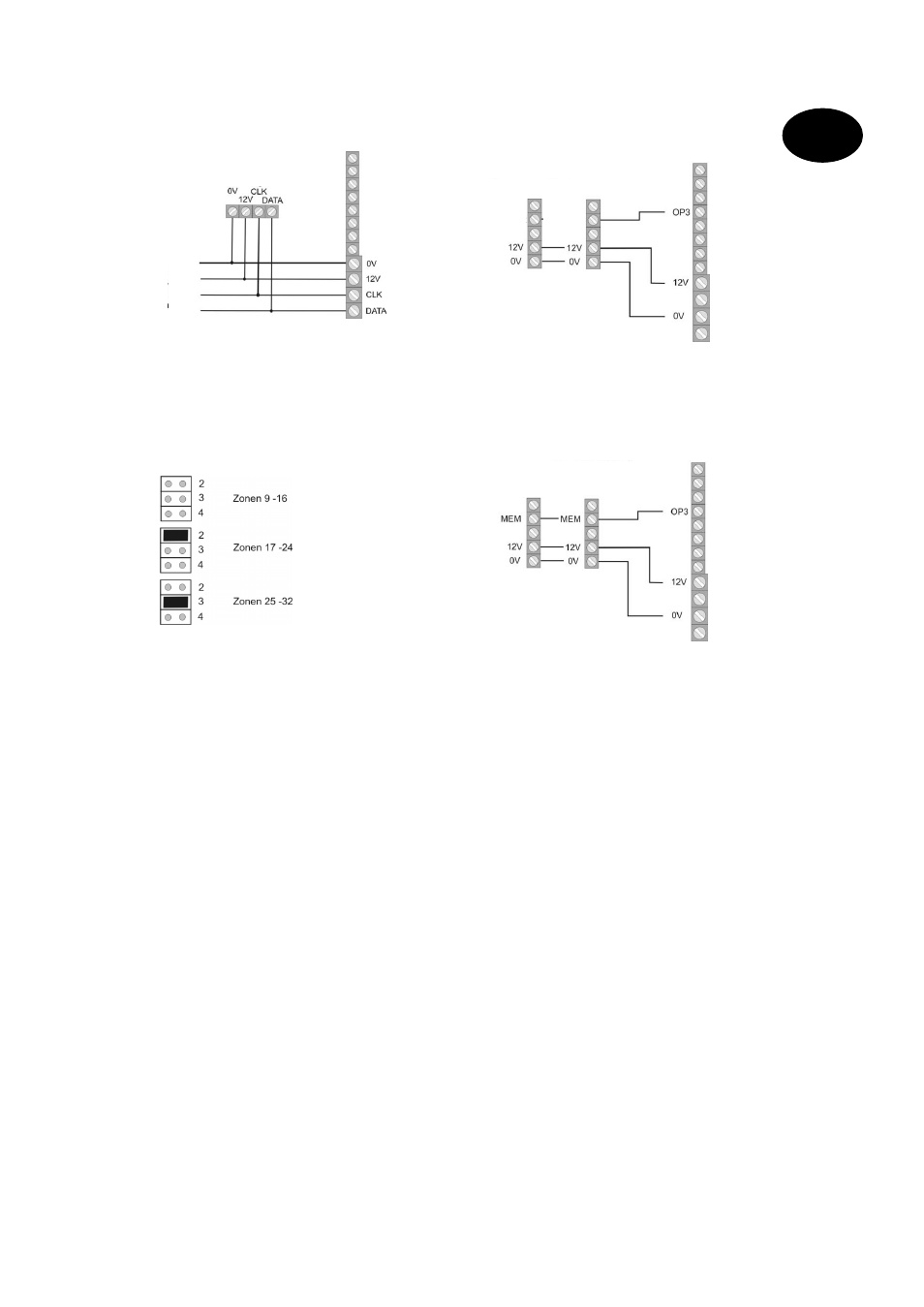

10.10 Connecting expansion modules
The 8-zone wire expansion modules and the 8-zone radio
expansion modules are connected to the 4-wire bus as
follows.
Make sure when connecting the 8-zone wire expansion
module that the zone terminations (CC / DEOL) from the
alarm centre and the expansion module are identical.
10.11 Addressing of expansion modules:
A determined range of zones must be assigned to each
expansion module. Two modules must not occupy the
same zone range. The zone ranges are addressed via the
jumpers on the expansion modules.
10.12 Walk test
The OP3 output must be appropriately programmed for
the walk test (function 83, option 5). If the user activates
the walk test function then the LED for motion detection is
activated at the detector.
10.13 Detector alarm memory
For the alarm memory function, e.g. for motion detectors,
the OP3 output must be appropriately programmed
(function 83, option 3). The first detector in the line that
triggers the event can store and signalise this.
expansion modul
Alarmpan
el
Alarmpan
el
walk test
motion detector 1
motion detector 2
walk
test
motion detector 1
motion detector 2
