Connection of 230V mains supply with primary fuse (T 250V 250mA).
230V AC / 12V DC transformer
Connector strip for siren, flashlight, programmable outputs, loudspeakers, 12VDC power supply and
alarm zones.
Connection of tamper contacts of the housing of the alarm centre.
Terminal connector strip for standby battery.
Terminal connector strip for control units.
Terminal connector strip for extra transistor outputs or the optional relay module.
Room for 12V standby battery (7Ah) and cabling.
9 Connection for PC data cable
Connections for telephone line
Note for 230 V connection
Do not switch on the mains power yet!

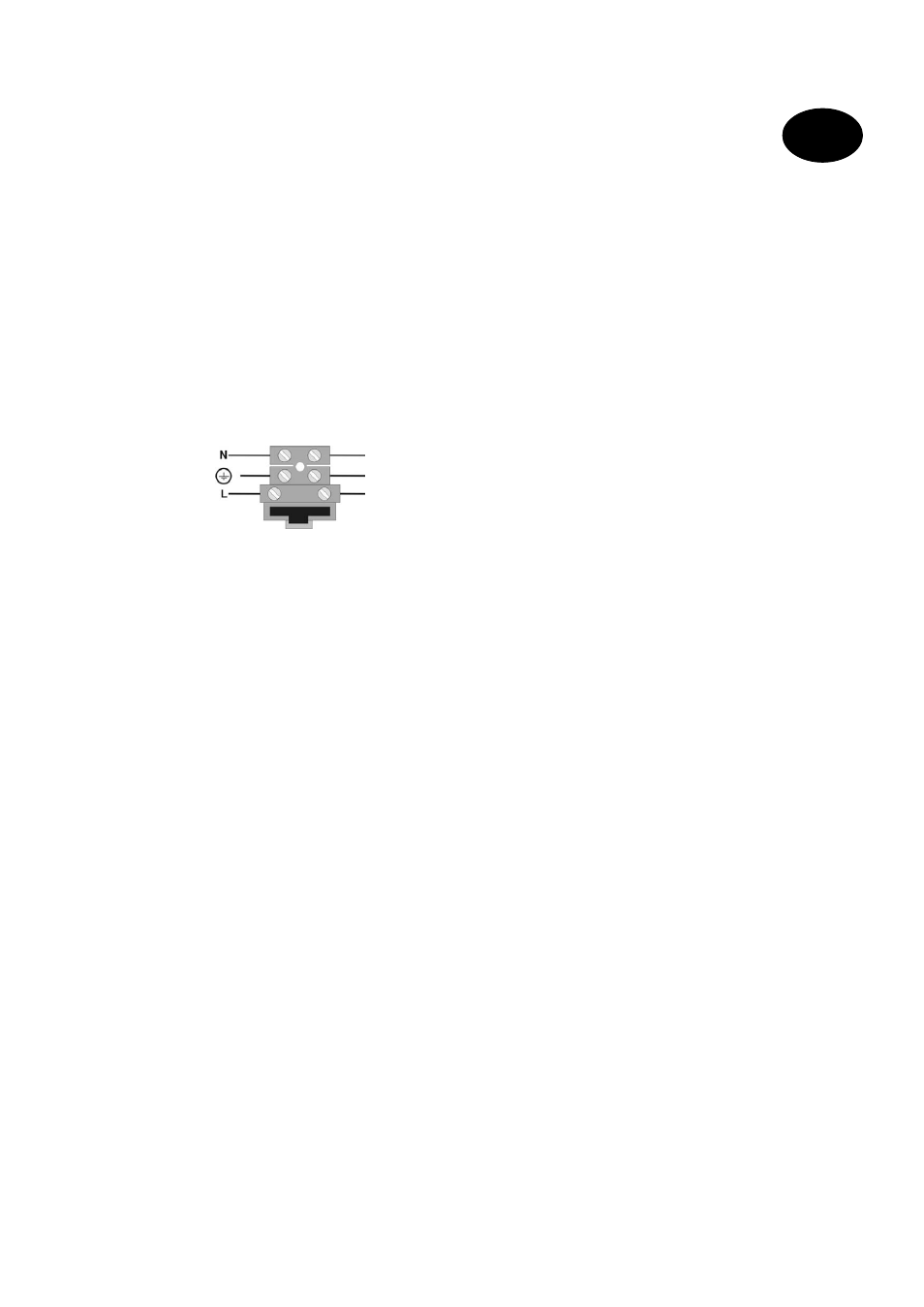

Connect the mains power to the terminal connector strip as follows:
neutral (blue)
Phase (black)
ground (green/yellow)
1
3
4
5
6
7
8
2
