Chapter 2 Loading Media and Ribbon
12. Align the left (inside) edge of the media with the guide notch located on
the front edge of the tear bar.
13. Close the pivoting deck and rotate the deck lock lever fully
counterclockwise. This locks the pivoting deck and printhead assembly
into the printing position.
IMPORTANT Ensure the pivoting deck is down and locked before attempting to
advance media or print. Failure to do so will cause the “PRINTHEAD UP”
fault message to display.
14. Verify that Print Mode submenu is set for the media type installed (direct
or transfer). The Print Mode submenu is located in the QUICK SETUP
menu. See “Main Menu” on page 84 for more information. Also, if thermal
transfer media is installed, see “Loading Ribbon” on page 40.

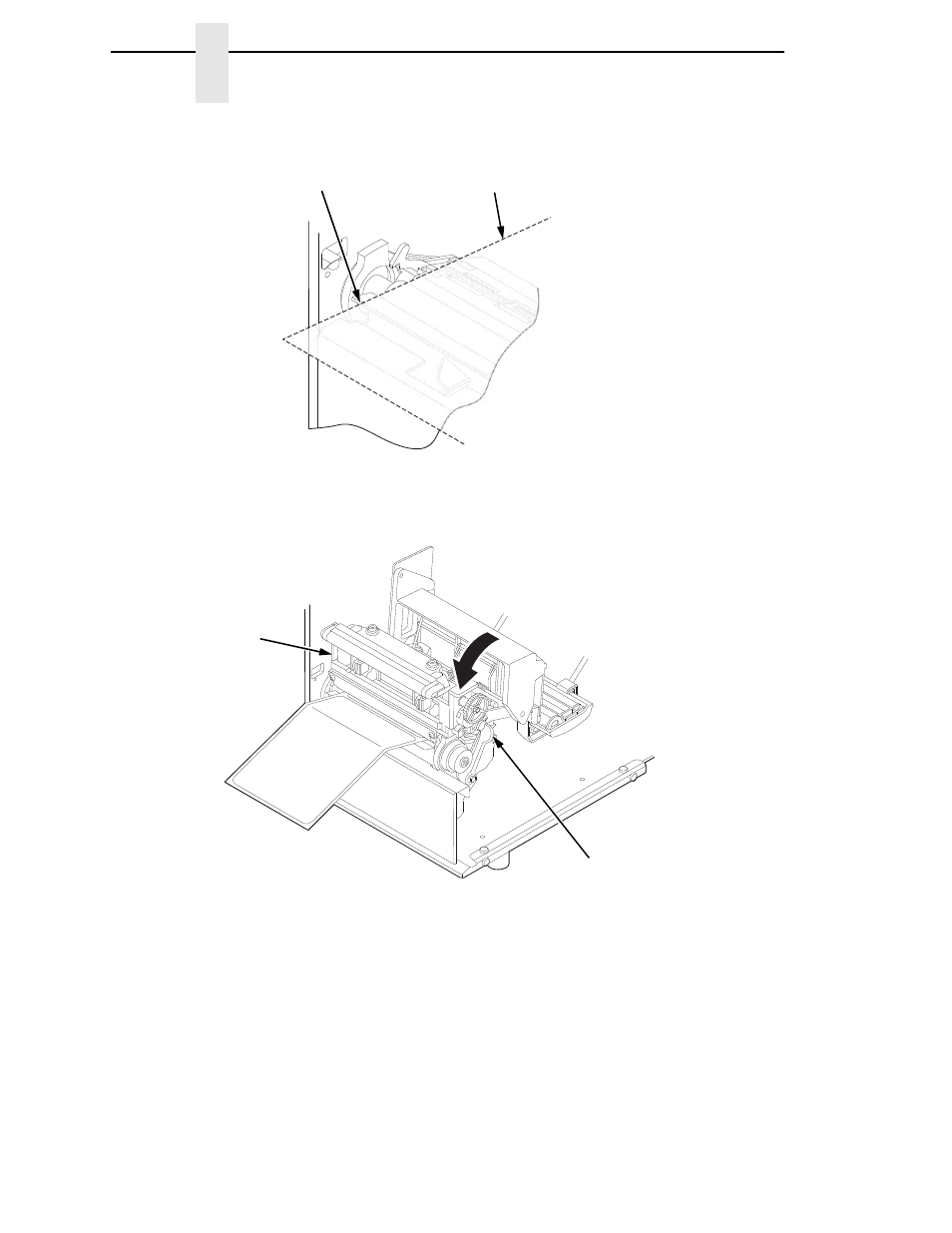

183391a
Guide Notch
Media
(left edge)
183392a
Deck Lock Lever
Pivoting
Deck
