IP Board

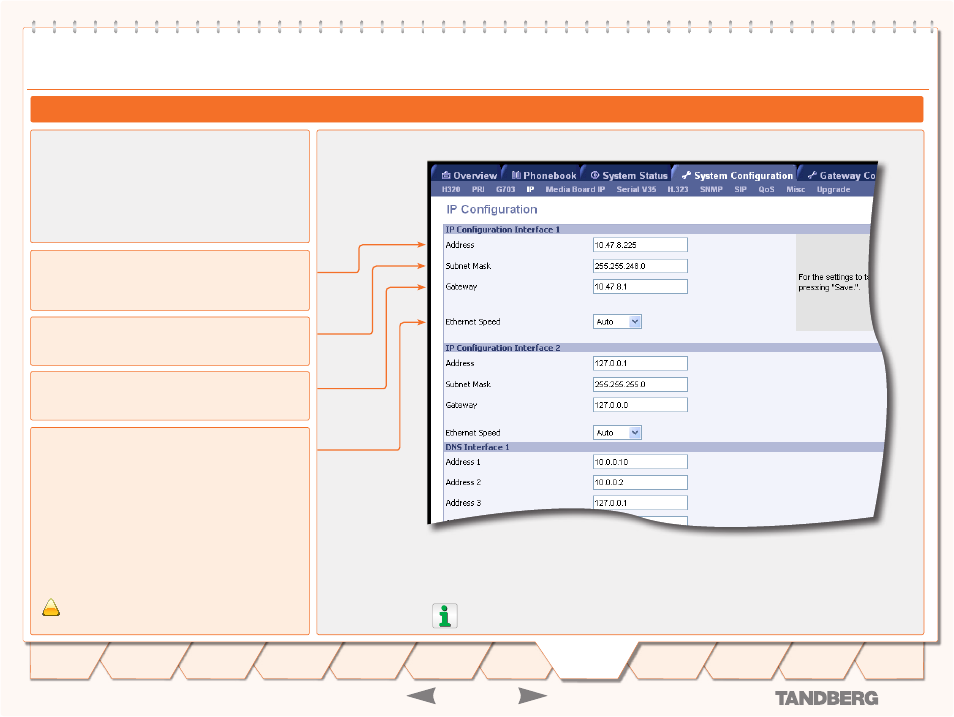

IP Configuration Interface 1 and 2
As a minimum you must configure Interface 1. If your TAND-
BERG MPS is connected to two different IP-networks, you
must configure both Interface 1 and Interface 2.
INFO: Before you can access the MPS from a web browser
the initial configuration, of a static IP address for the Sys-
tem Controller Board, is done via the LCD.
Network Configuration
Address
The IP Address defines the network address of the System
Controller Board. Your LAN administrator will provide you with
the correct address for this field.
Save - Press the Save button to save changes.
Restart - For the settings to take effect the unit must be restarted after pressing the Save button.
Subnet Mask
The IP Subnet Mask defines the type of network. Your LAN
administrator will provide the correct value for this field.
Gateway
The IP Gateway defines the Gateway address. Your LAN ad-
ministrator will provide the correct value for this field.
IP Interfaces Configuration
Ethernet Speed
Auto:
The MCU will automatically detect the speed/duplex on
the LAN.
10Half: The MCU will connect to the LAN using 10 Mbps/Half
Duplex.
10Full: The MCU will connect to the LAN using 10 Mbps/Full
Duplex.
100Half: The MCU will connect to the LAN using 100 Mbps/
Half Duplex.
100Full: The MCU will connect to the LAN using 100 Mbps/
Full Duplex.
If forcing the TANDBERG MPS to anything other than
Auto then the Ethernet switch must also be forced to
match. !
