MCU Overview > Manage an Active Conference
The Basic View (1:3)
Conference Status

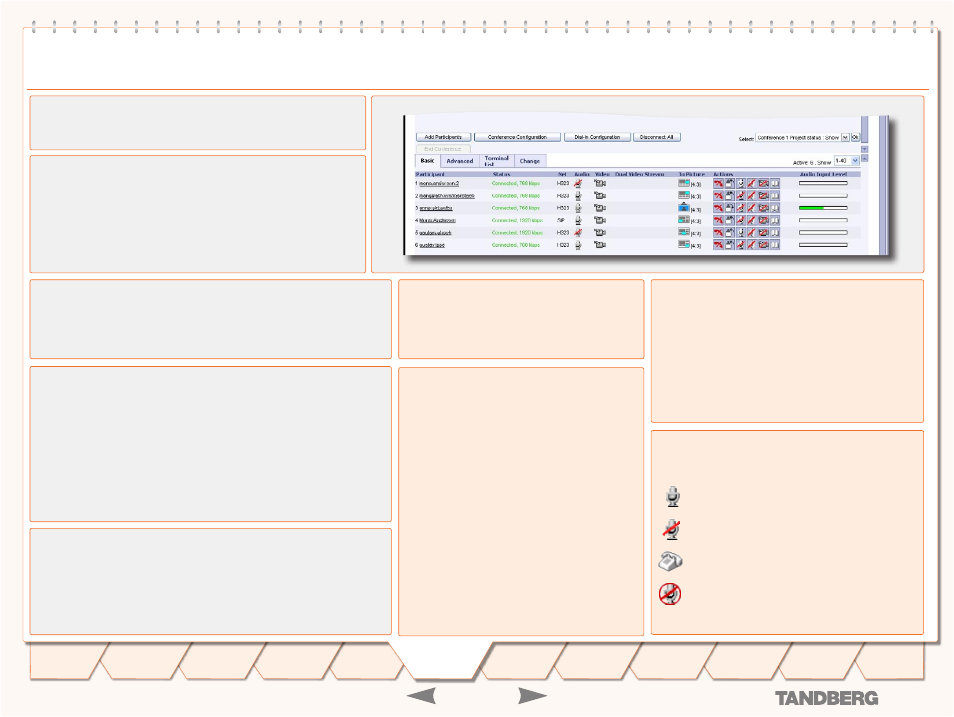

The Conference Status page shows information about a conference and
lets you control the conference.
Basic View -
Provides a basic overview of all the participants in the
conference.
Advanced View -
Gives detailed information on the audio in, audio out
and video in protocols and the bandwidth used by these protocols.
Terminal List -
List the participants in the conference. If the conference
is cascaded to another conference, this will be shown here.
Change -
The change view is used to modify endpoint constraints or
move the endpoint to another conference.
Disconnect One Participant
To disconnect a participants in the conference
Select a participant from the list and press the red
1.
Disconnect
button.
A confirmation window will be shown. Press
2.
OK
to disconnect the participant.
End Conference
To end the conference completely:
Press the
1.
End Conference
button. This button is only available when there
are no active calls left in the conference.
A confirmation window will be shown. Press
2.
OK
to end the conference.
The conference will loose its configuration and will be set to
3.
[idle]
in the
MCU Overview
page.
Status
Shows the status of the connection:
Establ Out:
Shown during call setup between the
participant and the MCU.
Alerting:
Waiting for the participant to answer the
outgoing call.
Connected, 384 kbps:
The participant is connected
at 384 kbps bandwidth.
Requesting Password:
To join the conference. the
participant is requested to enter the conference
password.
Initiating Encryption:
Encryption is being initiated
between the MCU and the participant.
Disconnected:
The participant has either discon-
nected or been disconnected by the conference
administrator.
Clear Out:
The MCU is currently disconnecting the
participant.
Net
Shows the network protocol used for the connection:
H.323:
The participant is connected on IP using the H.323
protocol.
H.320:
The participant is connected on ISDN or V.35 using
the H.320 protocol.
SIP:
The participant is connected on IP using the SIP
protocol
ISDN:
The participant is connected on ISDN as a tele-
phone.
Participants
Shows the name of the participants. You may
change the displayed name in the Change view, see
Change DIsplay Name for details. You may also reset
the participant name to the original system name.
Audio
Shows the audio status for each participant (not supported
for SIP calls):
The participant is transmitting audio.
The participant has muted the microphone.
The participant is connected as a telephone.
The conference administrator has manually muted
the participant.
Disconnect All
To disconnect all participants in the conference:
Press the
1.
Disconnect All
button.
A confirmation window will be shown. Press
2.
OK
to disconnect all partici-
pants.
After disconnecting the participants, the
3.
End Conference
button is enabled.
Disconnecting all participants will not end the conference itself; this will just dis-
connect all the participants in the conference. The conference can be restarted
by pressing the green
Redial
Action button.
NOTE:
Disconnecting all participants from an Ad-hoc conference will terminate
the conference.
