V.35 Serial Interface - Cable Description

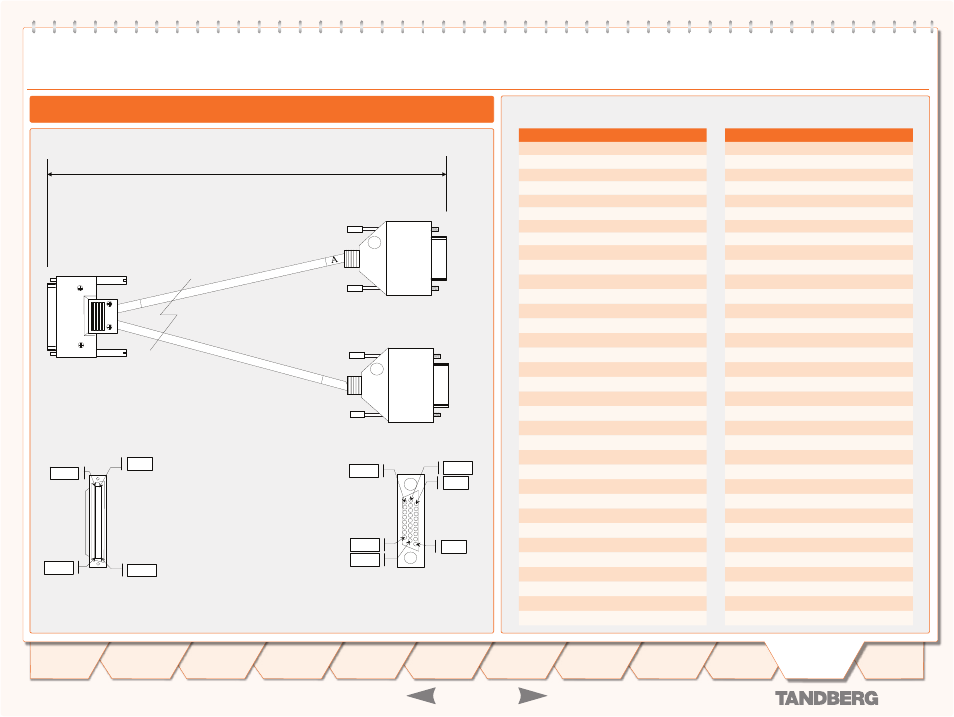

V.35 Serial Interface Card - Cable Description
PLUG C
POS 1
POS 34
POS 35
POS 68
PLUG A
PLUG B
1600mm
+50.00
- 0.00
POS 1
POS 9
POS 10
POS 19
POS 26
POS 18
B
Frontview
Pair no Plug C Plug A Signal Name
1
1
25
LOST SIG
1
2
NC
GND
2
3
18
CLK TX +
2
4
17
CLK TX -
3
5
12
TX +
3
6
11
TX -
4
7
14
RX +
4
8
13
RX -
5
9
19
GND
5
10
24
INCALL
6
11
21
TR +
6
12
20
TR -
7
13
16
CLK RX +
7
14
15
CLK RX -
8
15
23
RR +
8
16
22
RR -
9
17
26
DTR
9
18
NC
GND
10
19
7
RS_366 1
10
20
8
RS_366 2
11
21
9
RS_366 4
11
22
10
RS_366 8
12
23
NC
GND
12
24
2
DPR
13
25
3
ACR
13
26
4
CRQ
14
27
5
PND
14
28
6
DLO
15
29
NC
VCC
15
30
NC
VCC
16
31
1
GND
16
32
NC
GND
17
33
NC
GEN IN
17
34
NC
I_CALL OUT
Pair no Plug C Plug B Signal Name
1
35
25
LOST SIG
1
36
NC
GND
2
37
18
CLK TX +
2
38
17
CLK TX -
3
39
12
TX +
3
40
11
TX -
4
41
14
RX +
4
42
13
RX -
5
43
19
GND
5
44
24
INCALL
6
45
21
TR +
6
46
20
TR -
7
47
16
CLK RX +
7
48
15
CLK RX -
8
49
23
RR +
8
50
22
RR -
9
51
26
DTR
9
52
NC
GND
10
53
7
RS_366 1
10
54
8
RS_366 2
11
55
9
RS_366 4
11
56
10
RS_366 8
12
57
NC
GND
12
58
2
DPR
13
59
3
ACR
13
60
4
CRQ
14
61
5
PND
14
62
6
DLO
15
63
NC
VCC
15
64
NC
VCC
16
65
1
GND
16
66
NC
GND
17
67
NC
GEN IN
17
68
NC
I_CALL OUT
V.35 Pinout Table Plug A
V.35 Pinout Table Plug B
