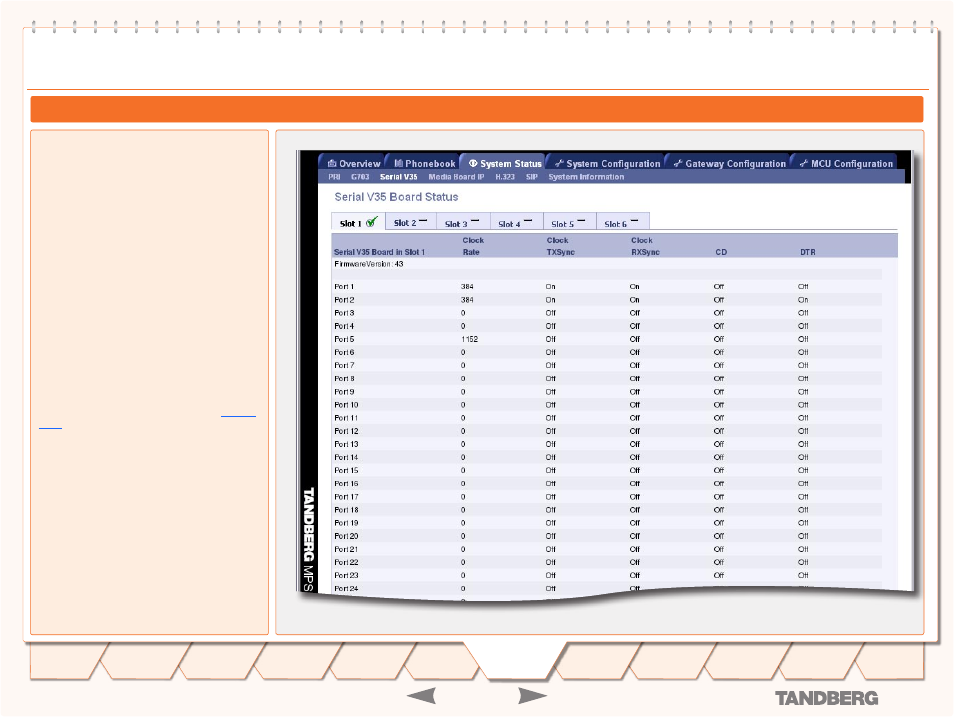

Serial V.35 Board Status
Clock rate: Displays the current clock rate for
each individual Serial port. When a port is active in
a call this will display the call rate that the port is
connected at. If used for external clocking on the
MPS this will display the rate of the clock that the
MPS is receiving from the network.
Clock TXSync/Clock RXSync: Displays the current
Tx data clock and Rx data clock synchronization
status for each individual port. If status is On
the data clock is synchronized with the internal
reference clock of the MPS. If status is Off the
data clock is not synchronized with the internal
reference clock of the MPS. During a call both
RxSync and TxSync should be On. If not there is a
problem with the clock synchronization of either
the MPS or the external equipment. Lack of clock
synchronization may cause severe deterioration of
video and audio quality and may even prevent call
establishment.
For further information please refer to the
System
Clock configuration in the System Configuration >
Miscellaneous section.
CD: Displays the current status for Carrier Detect
for each individual port. When a port is active in a
call this will show “On”. When a port is in the idle
state this will show “Off”.
DTR: Displays the current status for Data Terminal
Ready for each individual port. When a port is ac-
tive in a call or assigned to a conference this will
show “On”. When a port is in the idle state this will
show “Off”.
Serial V.35 Board Status
Serial V.35 Board Status
