Installation
TANDBERG MPS
ADMINISTRATOR GUIDE
Preparations
Before starting the TANDBERG MPS make
sure the following has been done:
The 1. System Controller Board must be
installed in the first slot in the chassis.
Make sure the 2. Media Processing Board(s)
and the Network Interface Card(s) are
interted correctly into the chassis.
MPS 800: Make sure the 2. Power Unit(s)
are inserted correctly into the back of the
chassis.
Connect the 3. Power Cable .
Turning on the MPS
Set the Power Switch on the back of the
chassis to 1 .
Startup mode
On the front of the chassis you will see the •
CPU LED on the System Controller Board
flashing
On the Media Processing Boards the •
Power LED turns green.
The • Active LED is flashing green while
software is being uploaded to the Media
Processing Boards.
In the • LCD (Liquid Crystal Display) you will
see the logo.
The system is ready for configuration
When both 1. Power and Active LED’s on the
Media Processing Boards are steady green
And the initial configuration menu appears 2.
on the LCD.

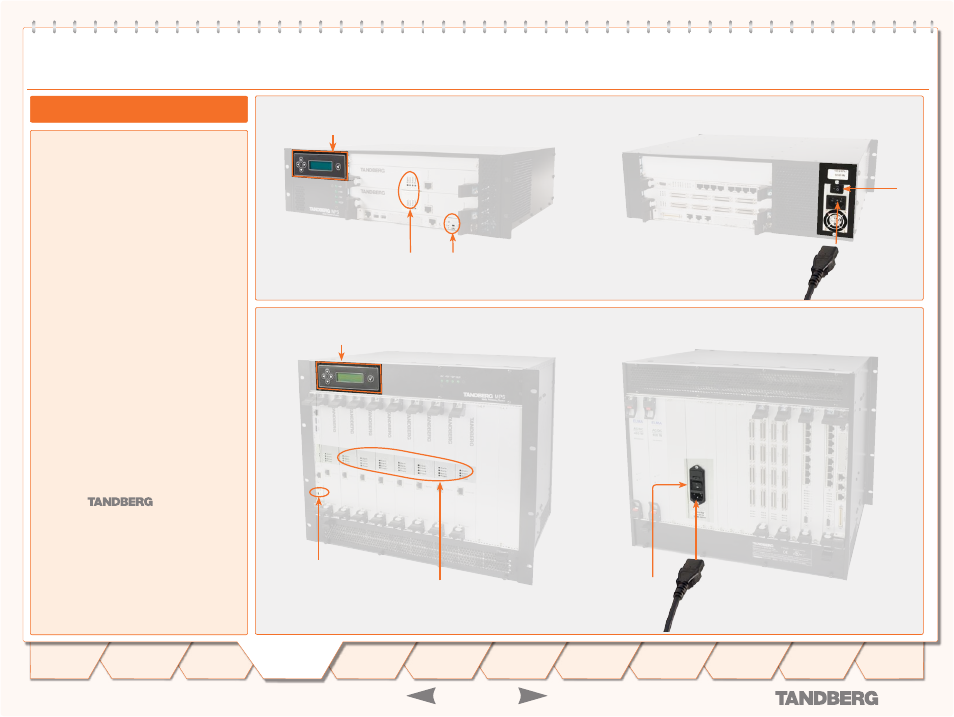

Starting the System MPS200 Front Side
Liquid Crystal
Display
MPS800 Front Side
Power
Switch
Power
Switch
MPS200 Back Side
MPS800 Back Side
Liquid Crystal
Display
CPU LED Power LED
Active LED
Power LED
Active LED
CPU LED
Power
Cable
Power
Cable
Starting the System
