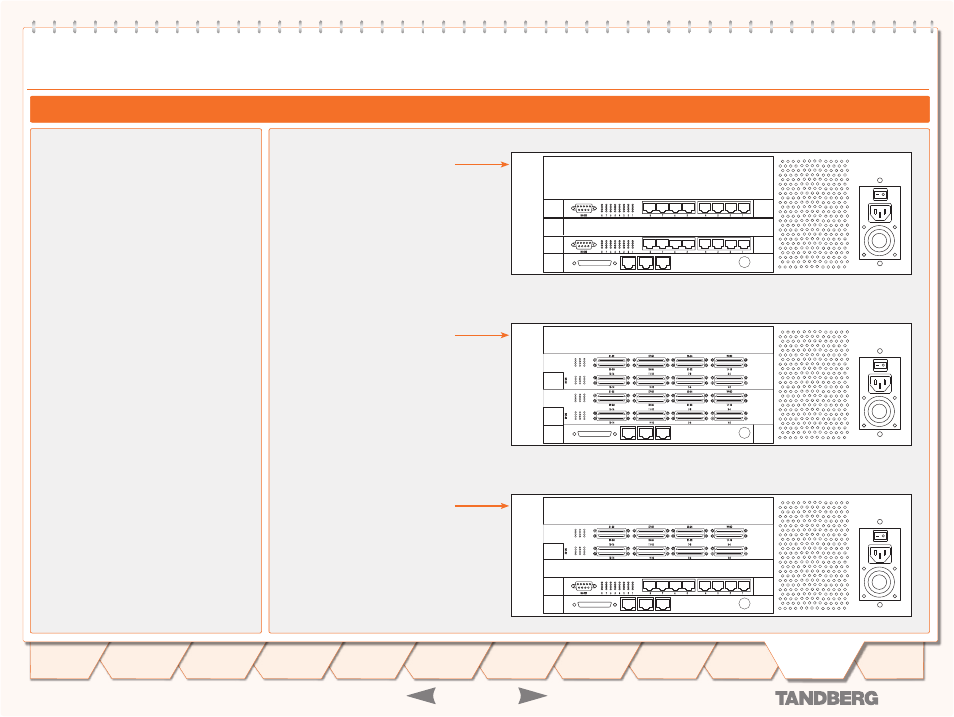

Inserting Additional Network Interface Cards with TANDBERG MPS 200
MPS 200 - Inserting Network Interface Cards
PRI E1/T1 ISDN Interface Card
2 x PRI E1/T1 ISDN Network Interface
Cards on rear side
2 x Media Processing Cards in front
V.35 Serial Interface Card
2 x V.35 Serial Interface Cards on rear
side
2 x Media Processing Cards in front
Mix of Network Interface Cards
1 x PRI E1/T1 ISDN Network Interface
Cards on rear side
1 x V.35 Serial Interface Cards on rear
side
2 x Media Processing Cards in front
TANDBERG MPS 200
The TANDBERG MPS 200 has 3U-19” rack-mount-
able chassis.
There is support for up to 2 Network Interface •
Cards in the software version J3 and above.
There can be a mix of Network Interface Cards •
Network Interface Cards are installed in the •
rear side of the chassis.
One Media Processing Board must be in front •
of each Network Interface Card.
PRI E1/T1 ISDN Interface Card
You can install up to 2 PRI E1/T1 ISDN Interface
Cards.
The PRI E1/T1 ISDN Interface Cards are •
installed in the rear of the chassis.
One Media Processing Board must be in front •
of each ISDN Interface Card.
V.35 Serial Interface Card
You can install up to 2 V.35 Serial Interface
Cards.
The V.35 Interface Cards are installed in the •
rear of the chassis.
One Media Processing Board must be in front •
of each V.35 Interface Card.
Mix of Network Interface Cards
You can install a mix of PRI E1/T1 ISDN Interface
Cards and V.35 Serial Interface Cards.
The PRI E1/T1 ISDN Interface Card and the •
V.35 Interface Card are installed in the rear of
the chassis.
One Media Processing Board must be in front •
of each ISDN/V.35 Interface Card.
Network Interfaces
